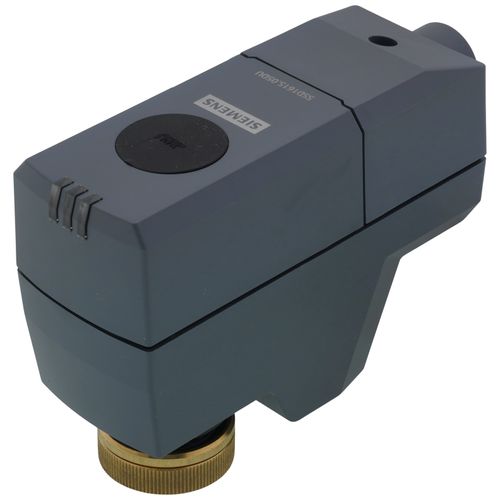

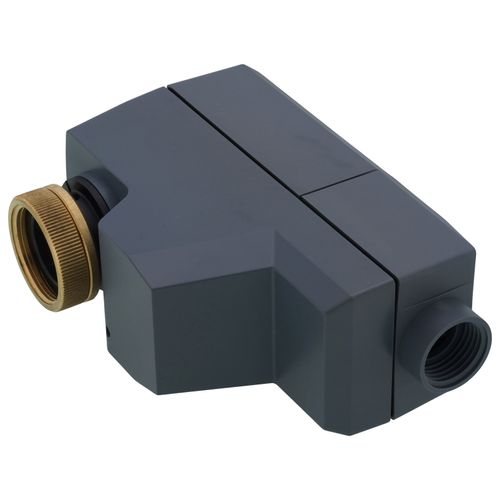

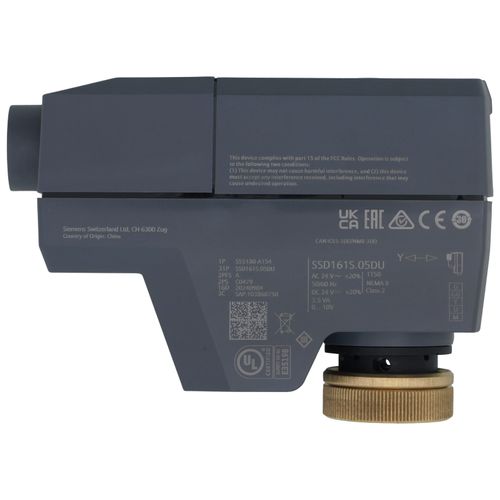

PICV Series Non-Spring Return Electronic Valve Actuator (24V, 0-10 VDC)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$146.63 each
In Stock
Get 2 Tue, Jun 16
Order by today, receive Tuesday
This item replaces: SSD61U
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
Description
–
Pressure Independent Control Series SSD Electronic Valve Actuators require a 24 Vac
power supply and receive a floating control signal (SSD81) or a proportional 0 to
10 Vdc signal (SSD61) to control a valve. The 0 to 10V SSD61U actuator also
accepts a 24 Vdc power supply.
These actuators are designed to work with 1/2- to 1-1/4 inch Pressure Independent Control Series Valves with a 2.5 mm or 5 mm stroke and a threaded valve bonnet that fits the actuator.
Features:
These actuators are designed to work with 1/2- to 1-1/4 inch Pressure Independent Control Series Valves with a 2.5 mm or 5 mm stroke and a threaded valve bonnet that fits the actuator.
Features:
- Nominal force >56 lbs (250 N)
- Automatic stroke calibration on the SSD61
- UL listed for plenum installation
- Reduced power consumption in holding position
- Direct coupled installation without tools (hand-tightened)
- Manual override
- Visual position indication
Specs
–
| Control Signal: | 0 to 10 VDC |
|---|---|
| Fail Safe Mode: | Non-Spring Return |
| Voltage: | 24V |
