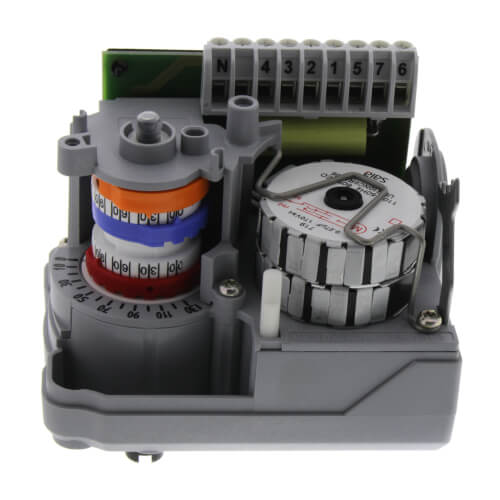

SQN7 Reversible Electromotoric Actuator (120 Vac)

SQN7? Actuators are used to position flow control valves, butterfly valves, dampers or any application requiring rotary motion. A synchronous motor drives the shaft and switch cam drum. The switch cam drum actuates two limit end switches and one auxiliary switch. The position of each limit end and auxiliary switch can be independently adjusted within a maximum range of 160°. The drive shaft can be disengaged for manual rotation.

Features:

• Line voltage floating or proportional control
• Two-stage or three-stage application
• Torques up to 22 lb-in
• Running times 3.5 seconds, 10 seconds or 25 seconds through 90° )
• Two limit end switches and one auxiliary switch
• Shaft disengagement clutch
• Optional single- or double-position feedback potentiometer
• UL Recognized and CSA certified
• 230 Vac models conform to CE for export
