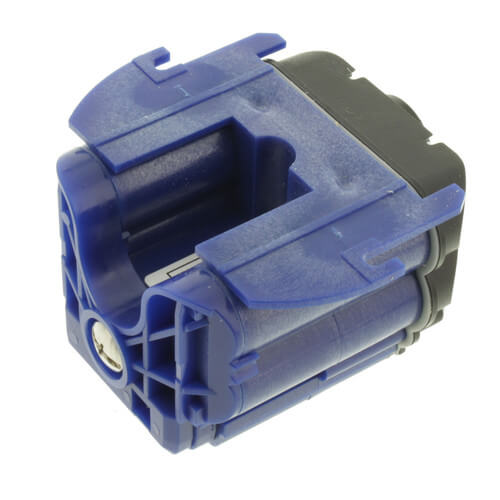

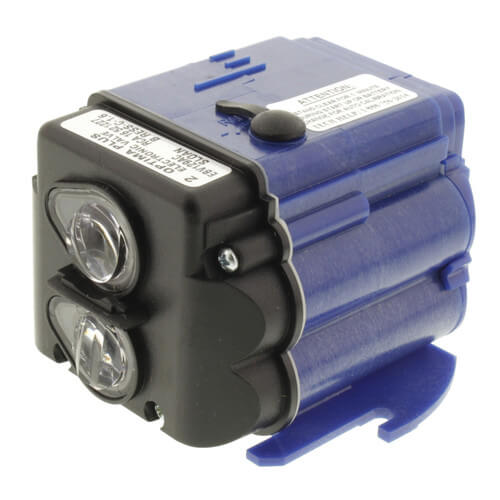

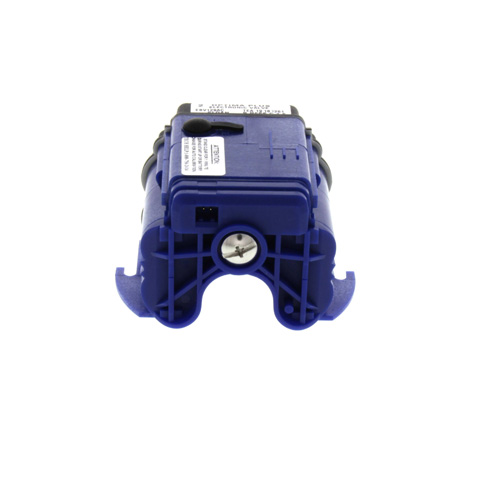

Sloan 3325450 EBV-129-A-C (G2) Electronic Module - Water Closet
A Sloan G2 electronic control module used to restore touch-free, sensor-based flushing on compatible Sloan top-mount Optima sensor water closet flushometers in commercial restroom applications.
Key Features
- Replacement G2 water closet control module (electronic module only) for Sloan sensor flushometers
- Designed for touch-free operation to support hygienic, hands-free flushing in commercial restrooms
- Listed by Sloan as a water closet control module for 1.28 gpf and 1.6 gpf applications
Compatibility & Applications
- Intended for use with existing Sloan Top-Mount Optima sensor water closet flushometers.
- Must only be used where the manufacturer specifies this exact part number/model: EBV-129-A-C / 3325450.
Installation & Operation Notes
- Installation should be performed by a qualified plumbing maintenance technician.
- Correct disassembly/reassembly of the sensor housing and related components requires following the unit's service documentation.
- Service-document procedure themes include: shutting off water and relieving pressure at the stop/tailpiece connection, removing the cover assembly, disconnecting/reconnecting the battery door clip, mounting the module on the inner cover assembly, and completing reassembly before restoring water.
Maintenance & Troubleshooting
- As the electronic control module for a sensor flushometer, this part is typically replaced when automatic flush operation is non-functioning or unreliable.
- G2 Optima Plus operation is battery-powered with an infrared sensor that detects users and initiates a flush cycle after the user leaves sensing range; if the system cannot complete that sequence reliably, the module and its related components are common service checkpoints.
- Repeated failures can stem from battery/contact corrosion and moisture intrusion; remove included alkaline batteries promptly if stocking the part, and use batteries less prone to leakage for installed units.
