1/2" Snap-In MC Cable Connector, Screw Type w/ Insulated Throat

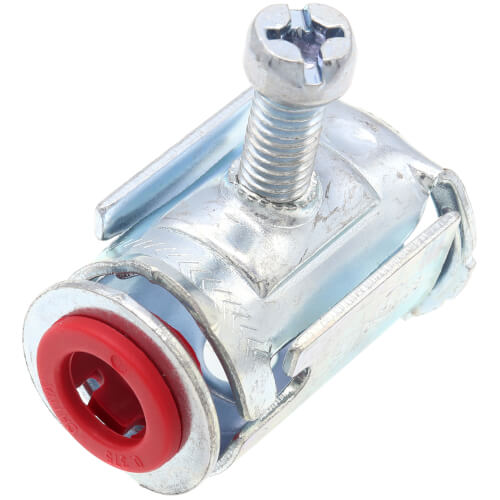

The Southwire AMC1 joins metal-clad cable into electrical junction boxes or enclosures with a snap-in, set screw design that requires no locknut. Fabricated from zinc-plated steel, this 1/2" connector features an insulated throat for superior conductor protection. The single-unit construction with captive clamp enables quick installation in residential and commercial wiring applications.
Key Features & Benefits
Compatibility & Requirements
Install in standard 1/2" knockouts on metal outlet boxes, junction boxes, and electrical enclosures rated for metal-clad cable. Use to join sheathed cable into outlet boxes or enclosures. Verify local electrical codes require metal-clad cable connectors before use. Installation should be performed by a qualified electrician in accordance with the National Electrical Code and local regulations.
Installation & Care
Strip cable sheathing to the manufacturer's recommended length. Insert the cable through the connector body until the armor seats against the internal stop. Tighten the set screw to secure the cable armor and establish mechanical and electrical continuity. Snap the assembled connector into the 1/2" knockout until it locks in place. Verify the connection is secure and the cable cannot be pulled free. Inspect periodically for loose set screws or damaged insulation.
What's Included
Frequently Asked Questions
Q: Can this connector be used with both MC and AC cable types?
A: This connector is designed for metal-clad (MC) cable and joins sheathed cable into outlet boxes or enclosures. Verify cable type compatibility with local electrical codes before installation.
Q: Does the insulated throat eliminate the need for anti-short bushings?
A: The insulated throat provides superior protection against conductor abrasion, though installers should follow NEC requirements and manufacturer instructions regarding additional bushing use for specific cable types.
| Size: | 1/2" |
|---|---|
| Material: | Steel |
