Description
Specifications:
  • REFRIGERANT TYPE: R-22
  • APPLICATION: Air Conditioning
  • THERMOSTATIC CHARGE: GA
  • NOMINAL CAPACITY (TON): 15
  • INLET CONNECTION: 7/8" ODF
  • OUTLET CONNECTION: 1-1/8" ODF
  • EQUALIZER METHOD: Externally Equalized
  • CAPILLARY LENGTH (INCH): 60"

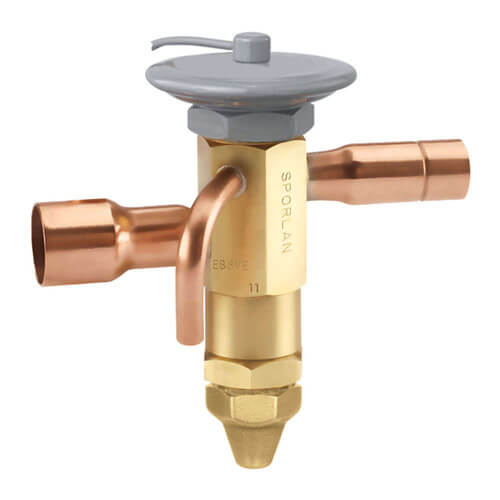

The Sporlan Type EBS balance ported thermostatic expansion valves have a brass bar stock body with extended ODF connections, adjustable superheat, long lasting replaceable power element and accessible internal parts. Each valve is factory tested to ensure positive leak-free performance. The balance port design provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation. Depending on its capacity, makes it suitable for bi-directional operation.

Markets:
  • Air Conditioning
  • Refrigeration
  • Transportation
  • Industrial Refrigeration

Features:
  • Balance port design provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation li>Thermostatic charges available to match system conditions li>Available with external equalizer li>Design working pressure of 450 psi (31 bar)

Applications:
  • Systems with widely varying operating conditions
  • Capacity ranges from 8 to 20 tons R-22
  • Supermarket rack systems
  • Air Conditioning – Residential, Commercial, Chillers
  • Transportation – Units on Truck/Trailer, Bus and Vans
Read more
Manuals (1)
Specs
Application:
Air Conditioning
Inlet Size:
7/8"
Outlet Size:
1-1/8"
Ton:
15
Refrigerant Type:
R-422D
R-22
R-407C
R-407A
Connection Type:
ODF
Capillary Length:
60"
Equalizer:
External
×
