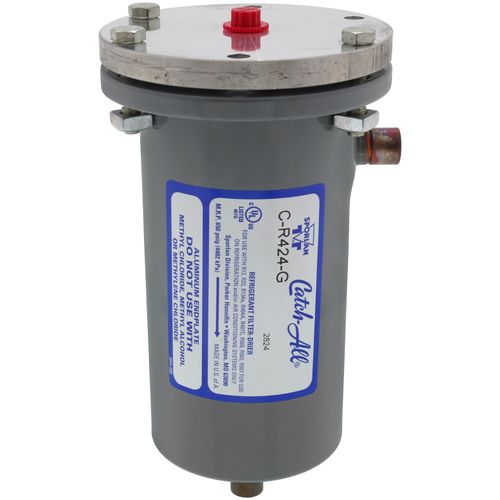

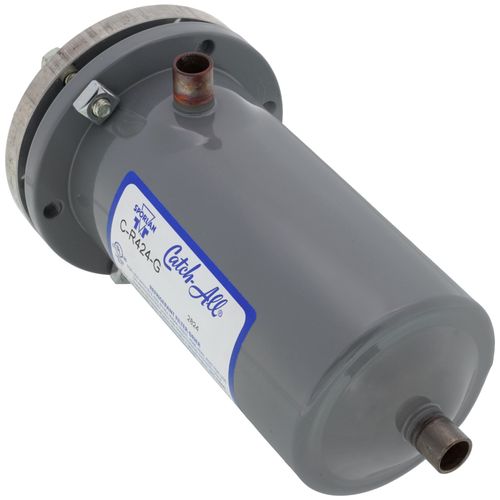

C-R424-G 1/2" ODF Catch-All Liquid Line Replaceable Core Filter Drier (42 Cubic Inches)

• PART NUMBER: 402010
• TYPE: C-R424
• CORE TYPE: RCW-42
• CONNECTION SIZE (INCH): 1/2" ODF
• CONNECTION STYLE: 1/4" Female Pipe Connection in the Flange Plate and Pipe Plug.
• MOUNTING STANDARD: A-175-1
• FILTER ELEMENT: Part Number-N/A
• FILTER AREA (IN2): 67
• ADDITIONAL OPTIONS: N/A
• NOMINAL CAPACITY RANGE (TON): *RCW-42 Core-(5)- Refrigerant-Commercial & Low Temp Equipment, (7 1/2)- Air Conditioning- OEM Self Contained, (5)- Air Conditioning- Field Replacement or Field Built-Up Systems
• NUMBER OF CORES: 1

APPLICATION: Air Conditioning, Commercial Refrigeration, Low Temp Refrigeration

DESICCANT VOLUME (CU. IN.): 42

LENGTH (INCH): 9"

DIAMETER (INCH): 3 1/2"

The Replaceable Core Model Filter-driers - Sporlan Catch-All_ Series provide unparalleled control of the most harmful contaminants in HVAC&R systems. Moisture, acids, and solid debris are effectively captured to ensure the long life, efficiency, and capacity of today's high performance air-conditioning and refrigeration systems. Each Replaceable Core Model Filter-driers - Sporlan Catch-All_ is factory tested to ensure trouble-free performance.

Markets:

• Residential & Commercial HVAC
• Food Service Refrigeration
• Commercial Refrigeration
• Specialty & Ultra-low Temperature Refrigeration
• Transportation Air-conditioning and Refrigeration

Features/Benefits:

• Complete contaminant control to protect and extend system life and ensure system reliability
• High performance desiccant package provides high water & acid capacity
• Porous molded core provides excellent filtration of solid debris for TEV and compressor protection
• Models available with activated charcoal for use during system clean-up

Applications:

• Heat Pumps
• Air Conditioning - Residential, Commercial, Chillers
• Refrigeration - Cases, Coolers, Walk in Coolers, Freezers
• Transportation
