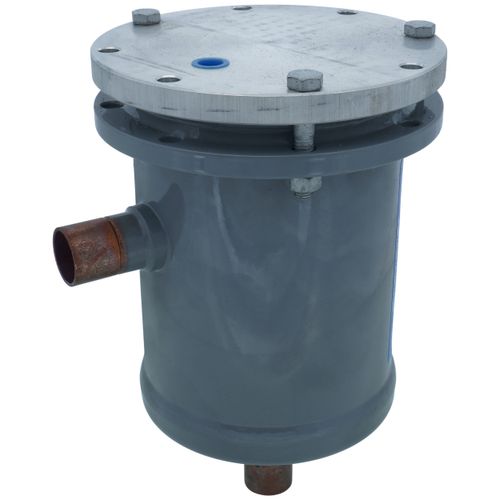

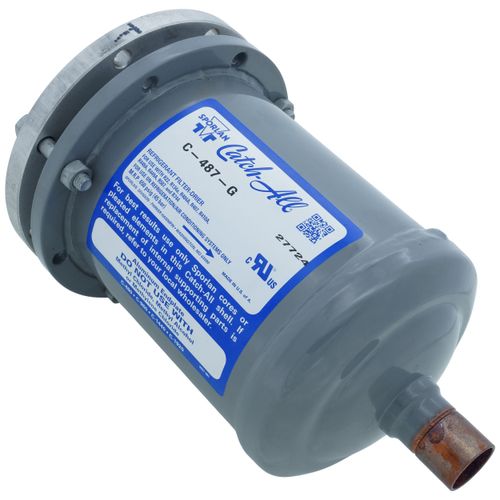

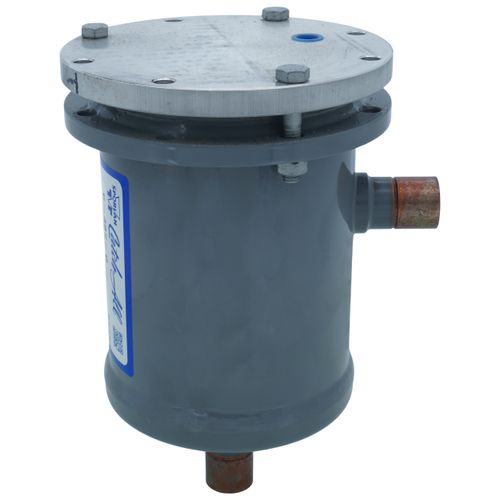

- TYPE: C-487
- CORE TYPE: RCW-48, RCW-4864, RC-4864-HH
- CONNECTION SIZE (INCH): 7/8" ODF
- CONNECTION STYLE: 1/4" Female Pipe Connection in the Flange Plate and Pipe Plug.
- MOUNTING STANDARD: A-685
- FILTER ELEMENT: Part Number-RPE-48-BD
- FILTER AREA (IN2): 64
- ADDITIONAL OPTIONS: Tube Construction
- NOMINAL CAPACITY RANGE (TON): *RCW-48 OR RCW-100, RC-4864 OR RC-10098 Cores-(15)- Refrigeration- Commercial & Low Temp Equipment, (20) Air Conditioning- OEM Self Contained, (15) Air Conditioning- Field Replacement or Field Built-Up Systems
- NUMBER OF CORES: 1
- APPLICATION: Air Conditioning, Commercial Refrigeration, Low Temp Refrigeration
- DESICCANT VOLUME (CU. IN.): 48
- LENGTH (INCH): 9.3"
- DIAMETER (INCH): 4 3/4"
The Replaceable Core Model Filter-driers - Sporlan Catch-All® Series provide unparalleled control of the most harmful contaminants in HVAC&R systems. Moisture, acids, and solid debris are effectively captured to ensure the long life, efficiency, and capacity of today’s high performance air-conditioning and refrigeration systems. Each Replaceable Core Model Filter-driers - Sporlan Catch-All® is factory tested to ensure trouble-free performance.
Markets:
- Residential & Commercial HVAC
- Food Service Refrigeration
- Commercial Refrigeration
- Specialty & Ultra-low Temperature Refrigeration
- Transportation Air-conditioning and Refrigeration
Features/Benefits:
- Complete contaminant control to protect and extend system life and ensure system reliability
- High performance desiccant package provides high water & acid capacity
- Porous molded core provides excellent filtration of solid debris for TEV and compressor protection
- Models available with activated charcoal for use during system clean-up
Applications:
- Heat Pumps
- Air Conditioning - Residential, Commercial, Chillers
- Refrigeration - Cases, Coolers, Walk in Coolers, Freezers
- Transportation
