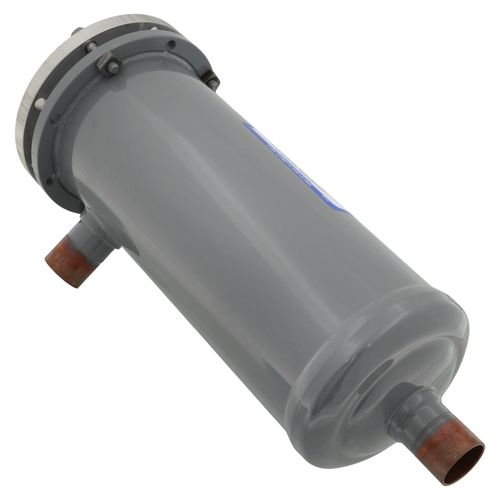

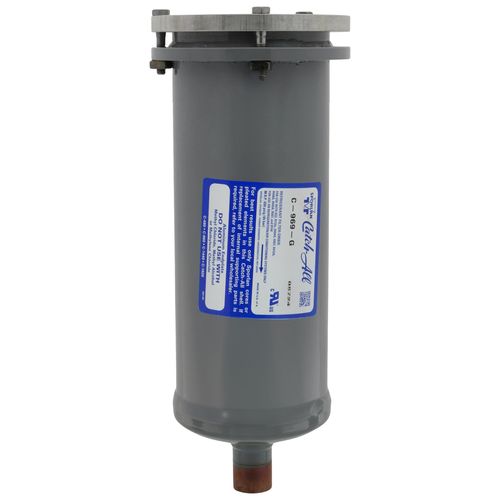

C-969-G T/C 1-1/8" ODF Catch-All Liquid Line Replaceable Core Filter Drier w/ Tube Construction (96 Cubic Inches)

• TYPE: C-969
• CORE TYPE: RCW-48, RCW-4864, RC-4864-HH
• CONNECTION SIZE (INCH): 1 1/8" ODF
• CONNECTION STYLE: 1/4" Female Pipe Connection in the Flange Plate and Pipe Plug.
• MOUNTING STANDARD: A-685
• FILTER ELEMENT: Part Number-RPE-48-BD
• FILTER AREA (IN2): 128
• ADDITIONAL OPTIONS: Tube Construction
• NOMINAL CAPACITY RANGE (TON): *RCW-48 OR RCW-100, RC-4864 OR RC-10098 Cores-(35)- Refrigeration- Commercial & Low Temp Equipment, (40) Air Conditioning- OEM Self Contained, (35) Air Conditioning- Field Replacement or Field Built-Up Systems
• NUMBER OF CORES: 2
• APPLICATION: Air Conditioning, Commercial Refrigeration, Low Temp Refrigeration
• DESICCANT VOLUME (CU. IN.): 96
• LENGTH (INCH): 15.04"
• DIAMETER (INCH): 4 3/4"

The Replaceable Core Model Filter-driers - Sporlan Catch-All® Series provide unparalleled control of the most harmful contaminants in HVAC&R systems. Moisture, acids, and solid debris are effectively captured to ensure the long life, efficiency, and capacity of today’s high performance air-conditioning and refrigeration systems. Each Replaceable Core Model Filter-driers - Sporlan Catch-All® is factory tested to ensure trouble-free performance.

Markets:

• Residential & Commercial HVAC
• Food Service Refrigeration
• Commercial Refrigeration
• Specialty & Ultra-low Temperature Refrigeration
• Transportation Air-conditioning and Refrigeration

Features/Benefits:

• Complete contaminant control to protect and extend system life and ensure system reliability
• High performance desiccant package provides high water & acid capacity
• Porous molded core provides excellent filtration of solid debris for TEV and compressor protection
• Models available with activated charcoal for use during system clean-up

Applications:

• Heat Pumps
• Air Conditioning - Residential, Commercial, Chillers
• Refrigeration - Cases, Coolers, Walk in Coolers, Freezers
• Transportation
