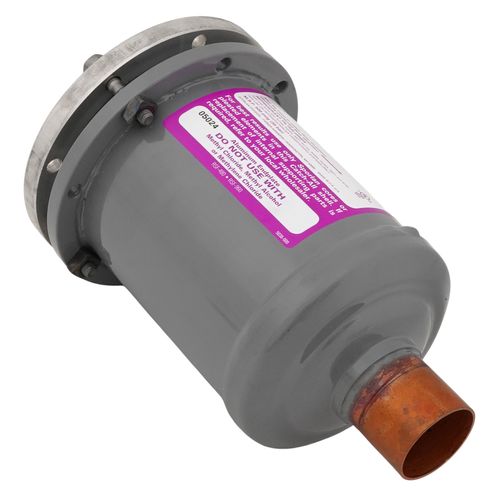

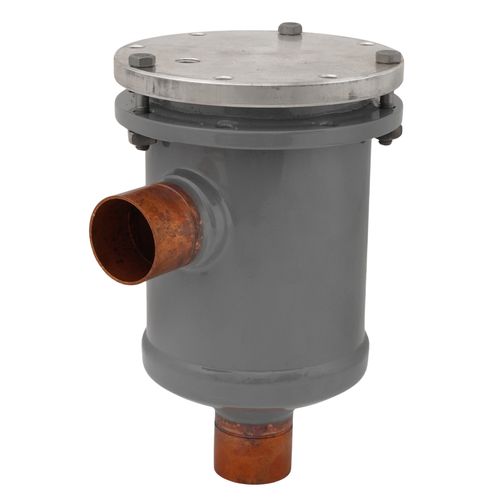

RSF-4813-T W/ Screen 1-5/8" Suction Line Replaceable Element Shell (48 Cubic Inches)

The Suction Line Replaceable Model Filter-Driers - Sporlan Catch-All® Series provide unparalleled control of the most harmful contaminants in HVAC&R systems and for clean-up after a compressor motor burn-out. Moisture, acids, sludge, varnish, wax, and solid debris are effectively captured to ensure the long life, efficiency, and capacity of today’s high performance air-conditioning and refrigeration systems.

Markets:

• Commercial HVAC & Chillers
• Commercial Refrigeration
• Specialty & Ultra-low Temperature Refrigeration

Features/Benefits:

• Activated charcoal core removes all types of system contaminants following a compressor motor burn-out
• High performance desiccant package provides high water capacity & acid capacity
• Porous molded core provides excellent filtration of solid debris for TEV and compressor protection
• Sizes from 8 cu. in. to 60 cu. in. and 3/8” to 1-1/8” fittings for use up to 10 tons cooling capacity
• SAE flare fittings and solid copper ODF fittings available
• Suitable for use with HCFC, HFC, HFO, and HC refrigerants
• UL Listed for 650 psig rated pressure for R-410A and Sub-critical CO2 refrigerant use
• RoHS, REACH, ATEX, and PED compliant

Specifications:

• Connection Size (inch): 1-5/8
• Desiccant Volume (cu. in.): 48
• Model Number: RSF-4813-T
• Number of Cores: 1
• Core Material: RC-4864-HH, RC-4864, or RCW-48
• Filter Element Type: RPE-48-BD
• Mounting Option: A-685
• Maximum Pressure Rating: 500
• Maximum Operating Pressure: 34.5 bar
• Connection Size: 1-5/8 inch
• Desiccant Volume: 48 inch3
• Number of Cores: 1

Applications:

• Suction line drying and filtering for solid contaminant removal
• System clean-up
