Description
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

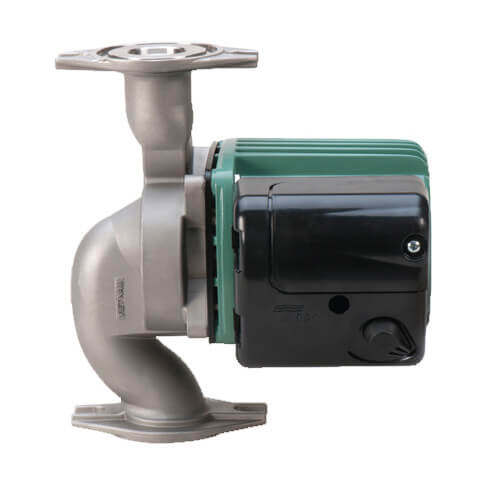

The 0012 3-Speed pump is a direct replacement for Grundfos, UPS43-44 3-Speed. Designed for high flow / low head applications. It’s ideal for large BTU boilers, primary boiler loops and large recirculation systems. The Stainless Steel 0012 should be used for open, potable water applications.

The 3-speed circulator features a removable, uni-body Integral Flow Check (IFC) that maximizes flow and prevents gravity flow - even in the tallest buildings. Wiring is a snap thanks to a new extra roomy, easy access capacitor box.

Features:
  • 3-Speed Switch
  • Fine tune to system requirements
  • Highest performance & starting torque in class
  • Heavy-Duty construction for longer life
  • Removable high-flow Integral Flow Check (IFC)
    • Prevents gravity flow
    • Reduces installation costs
    • Improves pump performance
  • Replaceable cartridge design
  • Quiet, efficient operation
  • Self lubricating, no mechanical seal
  • Wide range of applications
  • Cast Iron or St. Steel, flanged construction
Read more
Specs
Type:
3-Speed Pump
Application:
Heating
Horse Power:
1/6
Material:
Stainless Steel
Speeds:
3
Voltage:
115v
Phase:
1
Hertz:
60
Amperage:
1.6
RPM:
3250
Max Flow (GPM):
45
Flow Range (GPM):
0-45
Max Head (Ft):
15
Head Range (ft.):
0-15
Connection Size:
1"
1-1/4"
1-1/2"
Connection Type:
Flanged
Max Pressure (PSI):
125
Max Temp (F):
210°F
Min Temp (F):
40°F
Warranty:
3-Year Warranty
×
