Description

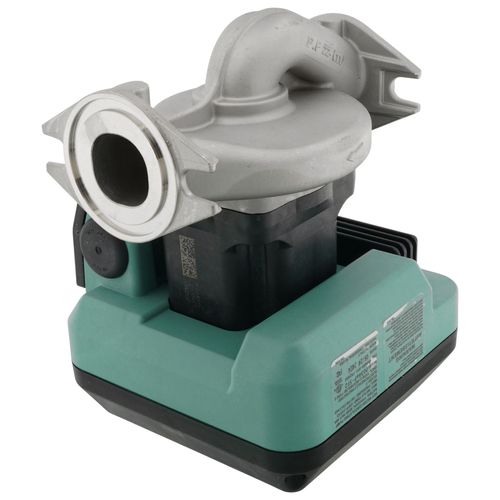

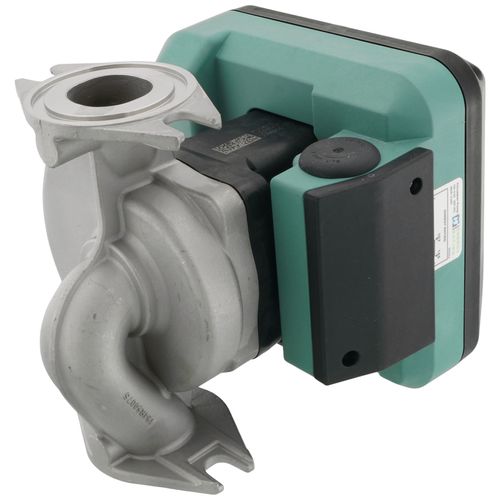

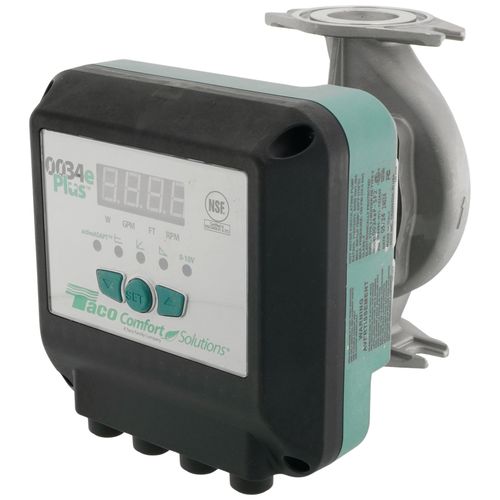

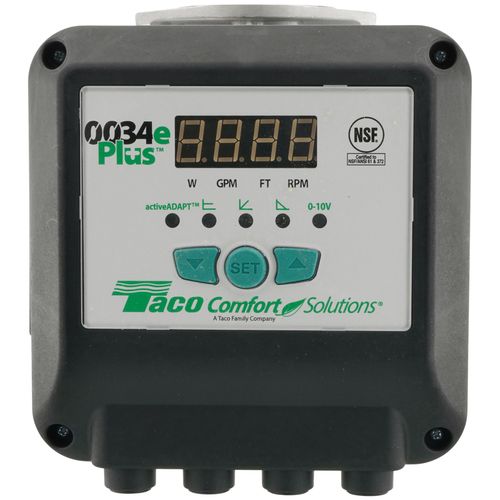

The 0034ePlus is a high-performance, variable speed, wet-rotor circulator with high-efficiency ECM permanent magnet technology. With an intuitive digital interface, its variable speed performance curves are equivalent to the Taco 009, 0010, 0011, 0012, 0012 3-Speed, 0013, 0013 3-Speed & 0014. Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The 0034ePlus reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators.

Product Specifications
  • Maximum Shut-off Head: 34 feet
  • Maximum Flow: 50 gpm
  • Maximum Operating Pressure: 150 psi (10.3 bar)
  • Maximum Water Temp: 230°F (110°C)
  • Minimum Water Temp: 14°F (-10°C)
  • Electrical specifications:
  • Voltage: 115V/208/230, 50/60 Hz Single phase
  • Operating Power Range: 10 - 170W
  • Max. AMP Rating: 1.48 (115V) - 0.70 (230V)
  • Stainless Steel casing
  • Suitable for chilled water systems
  • Taco circulators are for indoor use only
  • Acceptable for use with water or maximum of 50% water/glycol solution
Hide Description
Manuals (1)
Specs
Application:

Commercial

Type:

Pump

RPM:

4300

Connection Type:

Flanged

Amperage:

1.48

Material:

Stainless Steel

Voltage:

115/208/230V

Max Pressure (PSI):

145

Max Head (Ft):

34

Head Range (ft.):

0-34

Max Flow (GPM):

50

Phase:

1

Speeds:

Variable

Warranty:

1 Year

×
