006-ST8Y has been discontinued
Discontinued December 6, 2024
This product was discontinued by the manufacturer.
MANUALS (4)
This item replaces: 006-ST5Y
'/%3E%3C/svg%3E){kind=small}
Product Highlights
–
230V
1/40 HP
3 Year Warranty
Threaded Connection
12 MAX GPM
125 MAX PSI
Description
–
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

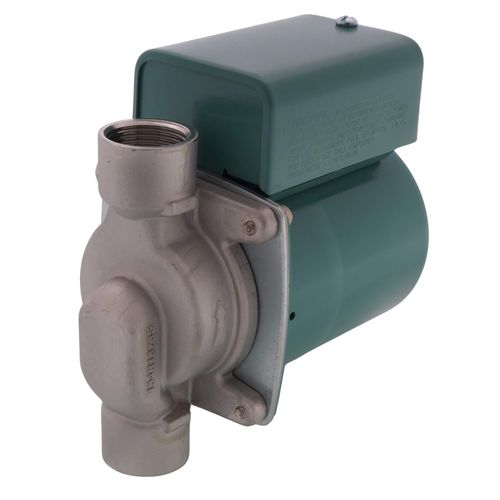

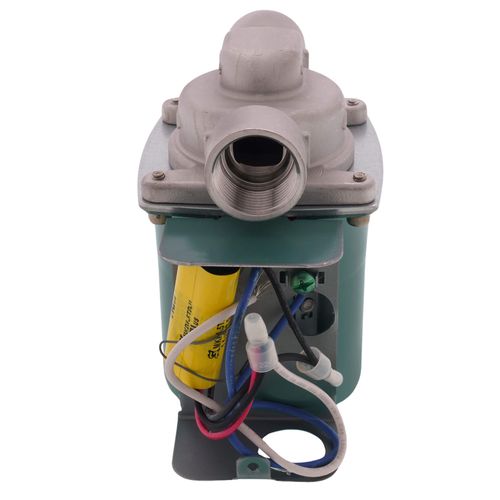

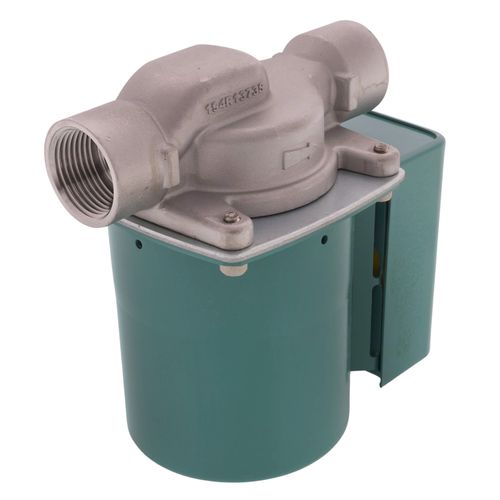

The TACO 006 is designed for circulating hot or chilled fresh water in open or closed loop applications. Typical uses include hydronic heating, domestic hot water recirculation, hydro-air heating/cooling, heat recovery units, water source heat pumps, drain down open loop solar systems and potable water applications. The unique, replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. The compact, low power consumption design is ideal for high efficiency jobs.
Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 008-054RP
Cartridge Assembly Complete: 005-020RP
The TACO 006 is designed for circulating hot or chilled fresh water in open or closed loop applications. Typical uses include hydronic heating, domestic hot water recirculation, hydro-air heating/cooling, heat recovery units, water source heat pumps, drain down open loop solar systems and potable water applications. The unique, replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. The compact, low power consumption design is ideal for high efficiency jobs.
Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 008-054RP
Cartridge Assembly Complete: 005-020RP
Specs
–
| Material: | Stainless Steel |
|---|---|
| Application: | Heating |
| Amperage: | 0.28 |
| Horse Power: | 1/40 |
| RPM: | 3250 |
| Voltage: | 230V |
| Hertz: | 60 |
| Phase: | 1 |
| Max Pressure (PSI): | 125 |
| Connection Size: | 3/4" |
| Connection Type: | Threaded |
| Type: | Pump |
| Max Flow (GPM): | 12 |
| Max Head (Ft): | 8 |
| Max Temp (F): | 230°F |
| Warranty: | 3 Year |
