$165.16 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
Size:
1/2"
Connection Type:
MNPT x MNPT
Features:
Gauge
MANUALS (5)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
MNPT x MNPT Connection
1/2"
2.3 Cv
180°F Max Temp
3-Way
20 MAX GPM
Description
–

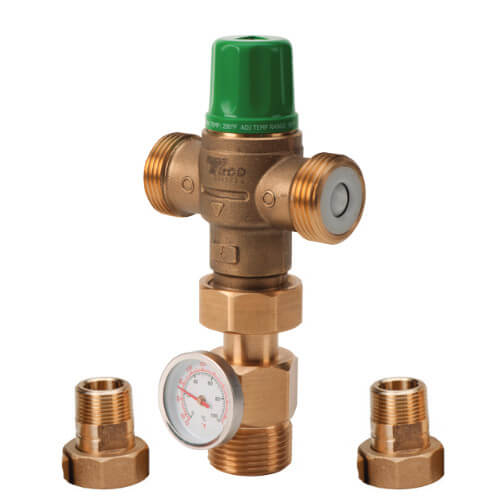

Note: Image does not represent actual product.
Taco's 5000 Series Heating Only version of mixing valves provides the high performance temperature stability required for today's radiant heating systems. It makes this mixing valve is an ideal choice for a radiant heating system whether in slab, over pours or in joist bay heating installations. Add to that multiple connection types such as straight NPT, union (sweat, threaded, CPVC or Pex) and you have a series of mixing valve that will fit most of your installation needs.
Features
Taco's 5000 Series Heating Only version of mixing valves provides the high performance temperature stability required for today's radiant heating systems. It makes this mixing valve is an ideal choice for a radiant heating system whether in slab, over pours or in joist bay heating installations. Add to that multiple connection types such as straight NPT, union (sweat, threaded, CPVC or Pex) and you have a series of mixing valve that will fit most of your installation needs.
Features
- Delivers Stable Mixed Water Temperature
- Extended Mix Temperature Range of 85-176°F (29-80°C)
- Tamper-Resistance Cap
- Low Headloss
- Outlet Temperature Strip
- Low Temperature and Radiant Systems
- In Slab
- Over Pours
- Joist Bay Heating Installations
Specs
–
| Features: | Gauge |
|---|---|
| Connection Method: | Threaded |
| Connection Type: | MNPT x MNPT |
| Size: | 1/2" |
| Body Pattern: | 3-Way |
| Max Flow (GPM): | 20 |
| Max Pressure (PSI): | 230 |
| Flow Capacity (Cv): | 2.3 |
| Max Temp (F): | 180°F |
| Material: | Forged Brass |
| Application: | Point of Source Heating Only |
| Accuracy: | ±3°F |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Connection Method
Connection Type
Size
Flow Capacity (Cv)
Max Temp (F)
CURRENT ITEM
Threaded
MNPT x MNPT
1/2"
2.3
180°F
Product Q&A
1 Question1 Question
Q: does it come in 3/8" pex connections
Asked by bob 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe smallest size it comes in with pex connections is 1/2". There is no 3/8" version of this mixing valve.
