3/4" NPT Male Union 5003 Heating Only Mixing Valve w/ Gauge
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$157.63 each
In Stock
Get 2 Fri, Jul 10 - Mon, Jul 13
Size:
3/4"
Connection Type:
MNPT x MNPT
Features:
Gauge
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
MNPT x MNPT Connection
3/4"
2.3 Cv
180°F Max Temp
3-Way
20 MAX GPM
Description
–

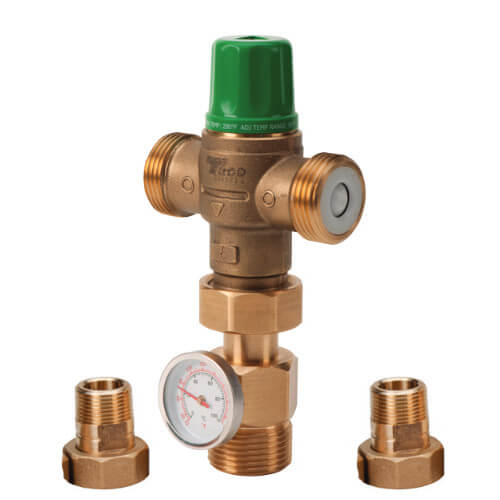

Note: Image does not represent actual product.
Taco's 5000 Series Heating Only version of mixing valves provides the high performance temperature stability required for today's radiant heating systems. It makes this mixing valve is an ideal choice for a radiant heating system whether in slab, over pours or in joist bay heating installations. Add to that multiple connection types such as straight NPT, union (sweat, threaded, CPVC or Pex) and you have a series of mixing valve that will fit most of your installation needs.
Features
Taco's 5000 Series Heating Only version of mixing valves provides the high performance temperature stability required for today's radiant heating systems. It makes this mixing valve is an ideal choice for a radiant heating system whether in slab, over pours or in joist bay heating installations. Add to that multiple connection types such as straight NPT, union (sweat, threaded, CPVC or Pex) and you have a series of mixing valve that will fit most of your installation needs.
Features
- Delivers Stable Mixed Water Temperature
- Extended Mix Temperature Range of 85-176°F (29-80°C)
- Tamper-Resistance Cap
- Low Headloss
- Outlet Temperature Strip
- Low Temperature and Radiant Systems
- In Slab
- Over Pours
- Joist Bay Heating Installations
Specs
–
| Features: | Gauge |
|---|---|
| Connection Method: | Threaded |
| Connection Type: | MNPT x MNPT |
| Size: | 3/4" |
| Body Pattern: | 3-Way |
| Max Flow (GPM): | 20 |
| Max Pressure (PSI): | 230 |
| Flow Capacity (Cv): | 2.3 |
| Max Temp (F): | 180°F |
| Material: | Forged Brass |
| Application: | Point of Source Heating Only |
| Accuracy: | ±3°F |
