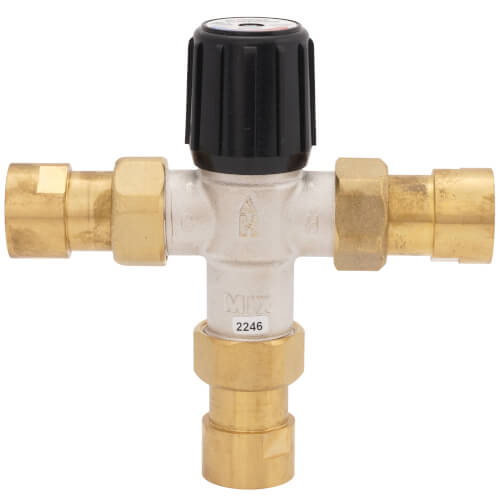

3/4" NPT Union Mixing Valve (Heating Only)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$144.46 each
In Stock
Get 84 Wed, Jun 17
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
FNPT x FNPT Connection
3/4"
3.9 Cv
180°F Max Temp
70°F Min Temp
70°F - 180°F
Description
–
The Honeywell AM-1 series accurately adjusts, maintains and limits the hot water temperature to a desired setting selected by the user. By installing a Honeywell AM-1 mixing valve and raising water heater storage temperature setting and limiting mixed outlet water temperature to safe temperature more usable hot water is available. In heating applications it provides comfort and protects the equipment. Multiple applications include heat pump systems, nursing homes, public facilities, automatic faucets, radiant floor heating, space heating, combo systems, solar hot water, greenhouses, and industrial applications.
Features:
Features:
- Dual purpose mixing or diverting valves
- Constant water temperature under changing operating conditions
- Reliable performance at minimum flow of 0.5 gpm
- Proportional valve (simultaneous control of hot and cold water)
- Temperature limit at any point
- Flow reduction in seconds if cold water supply is interrupted
- Nickel-plated brass construction, EPDM O-rings
- High performance thermoplastic proportioning shuttle
- Straight through design (hot and cold at the same level)
- Max. pressure 150 psi (1034 kPa)
- Max temperature 212 F (100 C)
- Designed for easy maintenance and element replacement. Teflon® coating of internal valve components to prevent mineral build-up and extend life.
- Tamper-resistant design
- Valve trapping not required
- AM-1 Union STD & C and AM1070 Models include check valves on both hot and cold ports
- ASSE, CSA and IAPMO listed
- U.S. Patent No. 6,079,625
Specs
–
| Size: | 3/4" |
|---|---|
| Material: | Brass |
| Connection Method: | Threaded |
| Connection Type: | FNPT x FNPT |
| Flow Capacity (Cv): | 3.9 |
| Min Temp (F): | 70°F |
| Max Temp (F): | 180°F |
| Temperature Range (F): | 70°F - 180°F |
| Max Pressure (PSI): | 150 |
| Type: | Mixing Valve |
| Application: | Point of Source Heating Only |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Material
Connection Method
Connection Type
Flow Capacity (Cv)
CURRENT ITEM
3/4"
Brass
Threaded
FNPT x FNPT
3.9
Product Reviews
4.8 out of 5 reviews
100% would recommend this product
5 star
80%
4 star
20%
3 star
0%
2 star
0%
1 star
0%
Showing 1-5 of 5 reviews
does what it needs
this mixing valve mixes the water very well :)
Isaac
Wayne, nj
1 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Item works as expected
One issue I had is something as simple as using the adjusting knob. You need to loosen a screw just to adjust the water temp.This screw is covered by a sticker so who woulda thunk it?? I proceeded to force it which makes a clicking sound which makes you think its broke outa the box. I then took the valve apart to investigate and eventually figured it out. Then I read the instructions. Ok I am a fool but do you read the instructions to push the gas pedal on a car. Over engineered but it is a nice item and I have heat and it does adjust!
Bill
Central Square N.Y.
11 years ago
Verified Buyer
Was this review helpful to you?
Very responsive
Easy install with unions. Very reponsive to temperature adjustments. Simple to rebuild if ever needed. A good value.
md57
Western WI
13 years ago
Verified Buyer
Was this review helpful to you?
Works as advertised
I use this mixing valve for slab on grade radiant. Responds immediately to dialed in temperature settings. Temperature stability good. Supplied temperature indicator strip assures quick and accurate setup.
GMAN
Pittsburgh, PA
16 years ago
Was this review helpful to you?
Best Price Online!
Best price; [...] easy installation & operation. I am very pleased with this valve and PexSupply.
Les
New Braintree, MA
16 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Why does it say heating only? Can i use this to regulate my domestic hot water output from hot water tank that is heated via my wood boiler system?
Asked by Newguy 13 years ago
Add your answer
Verified Reply- PexSupply StaffWe would not recommend it. This valve is not lead-free, it is not approved for use with potable water, and it does not meet the precision and safety standards that you would want to prevent scalding.
Was this review helpful to you?
- Bob
Because the internal components of a heating only unit cannot be used for a domestic water system. Sent from my iPad
Was this review helpful to you?
Q: Does orientation matter or can this unit be installed with adjustment knob on the side instead of top as shown?
Asked by New to Radiant 13 years ago
Add your answer
-
Orientation does not effect operation but it can effect convenience of adjustment.
Was this review helpful to you?
- Garth
Orientation does not matter
Was this review helpful to you?
- Bob
Any position is fine.....Bob S.
Was this review helpful to you?
