Description

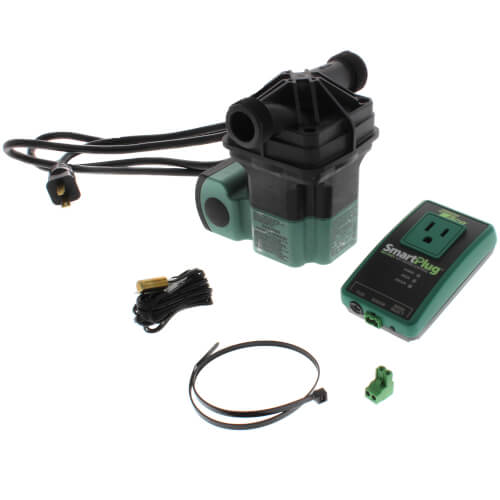

Perfect for systems with a tank water heater and dedicated hot water return line, the SmartPlus-e combines the high-efficiency of the 006e3 ECM circulator and the intelligence of the award-winning SmartPlug Instant Hot Water Control®. A one-two punch that delivers instant hot water comfort while saving energy and water – up to 12,000 gallons a year! With SureStart® automatic unblocking and air purging, you can expect years of trouble-free performance from Taco, the leader in reliability.

  • Quick & easy installation
  • No programming - Learns hot water usage patterns
  • High-efficiency ECM motor uses up to 85% less electricity
  • SureStart® is your no-callback safety net. It automatically purges air and unblocks the pump to keep it trouble-free. No one else has this feature!
  • Unmatched customer service & technical support

SmartPlug Specifications:
  • Input: 120VAC, 50/60HZ, single phase, 6A
  • Output: 120VAC, 50/60HZ, Single phase, 1/2 hp (limited to 6 FLA, 36LRA)
  • Sensor: NTC Thermistor, 10K ohm @ 77°F, B= 3392
  • Fuse: 125V, 6A, Medium Acting 5x20 mm glass, Littelfuse® p/n 0233006 mxp
  • Ambient Operating Temp: 50-104°F, 10-40°C

Read more
Specs
Shutoff Head (ft.):
13'
Wattage:
44
Voltage:
120v
Max Pressure (PSI):
150
Amperage:
0.54
Max Temp (F):
203°F
Max Flow (GPM):
11
×
