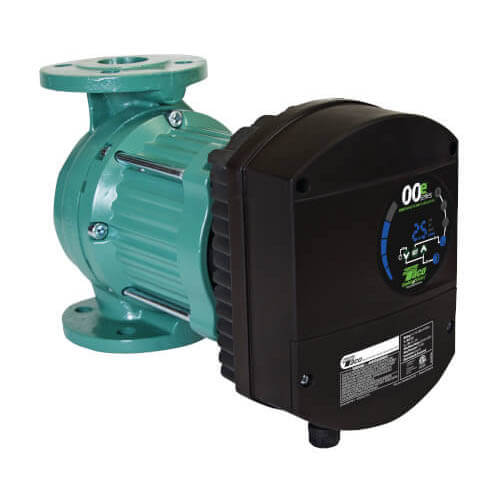

00e Series VR ECM High Efficiency Circulator w/ 1-1/2" Flange (0.027-0.680 HP, 110-240V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
VR15-3 has been discontinued
Discontinued January 28, 2021
This product was discontinued by the manufacturer.
MANUALS (3)
This item replaces: VR15-1
Product Highlights
–
115V, 240v
0.027-0.680 HP
1 Year Warranty
Flanged x Flanged Connection
124 MAX GPM
175 MAX PSI
Description
–
Web-Enabled, Wet Rotor, Variable Speed Commercial Pumps for Chilled and Hot Water Applications
A convergence of efficiency, simplicity and technology within this new generation of wet rotor circulators. The 00e Series VR ECM High-Efficiency Circulators are versatile web-enabled, wet rotor, variable speed line of commercial pumps for chilled and hot water applications. Internet access and settings make installation, setup and service easy. The ECM motor saves up to 85% of the electrical energy compared to conventional pumps. Multiple operating modes make this pump a perfect choice for most applications.
Specifications:
Features
Specifications:
- Max. Operating Pressure: 175 PSI (12 bar)
- Water Temperature Range: 36° - 230°F (2.2° - 110°C)
- Ambient Operation Temperature Range: 32F - 104F (0- 40C)
- Designed for closed loop heating and cooling systems pumping water or a water/glycol mixture
Features
- Simple user interface to enable setting changes on the face of the pump, eliminating the need for laptop setup
- Real-time performance readouts for flow, power consumption, speed and head values
- SelfSensing Dynamic Auto (factory default), Proportional & Constant Pressure plus Manual Variable Speed modes provide for extremely extensive application flexibility
- On board 0-10Vdc two way control adjusts speed or head to meet system demands from external control inputs
- ModBus control and performance feedback for advanced Building Management / Building Automation Systems
- RJ 45 input / output for ease of networking
- Relay outputs for remote monitoring of pump status and digital inputs for external enable / disabling
- Simple Main / Standby and Parallel Pump operation (parallel pumps run together as needed) via standard ethernet cabling
Specs
–
| Application: | Commercial |
|---|---|
| Type: | Pump |
| Horse Power: | 0.027-0.680 |
| Material: | Cast Iron |
| Amperage: | 2.25 |
| Voltage: | 115V 240v |
| Max Pressure (PSI): | 175 |
| Connection Size: | 1-1/2" |
| Connection Type: | Flanged x Flanged |
| Flow Range (GPM): | 0-124 |
| Max Flow (GPM): | 124 |
| Max Head (Ft): | 42.7 |
| Head Range (ft.): | 0-42.7 |
| Phase: | 1 |
| RPM: | 3000 |
| Temperature Range (F): | 14°F - 230°F |
| Speeds: | Variable |
| Warranty: | 1 Year |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
2.5 out of 2 reviews
50% would recommend this product
5 star
0%
4 star
0%
3 star
50%
2 star
50%
1 star
0%
Showing 1-2 of 2 reviews
Dissaponted
I work for a plumbing company and have installed a few dozens of VR15, also some VR20, VR25 and VR30. Bad decision made from my company management. These pumps have serious issues, they are so sensitive to any small air bubbles, or little sediment stock in the casing ,also to mention Do Not attempt to rotate the housing if numbers show upside down (when pump is installed on the return side). Not reliable, always displaying "E" error codes. Unlike TACO 1600 series or 1900 series still operating on these days wonderful pumps, but Viridian VR-s are just a failure. So we switched to other brands ECM motor which are cheaper and not dealing with callbacks again.
Art
Hartford, CT
6 years ago
Was this review helpful to you?
viridian pump
Bought 2 of these pumps and had them running for 4 months with one going bad.
The circuit board shorted out somehow.
Tt has a 3 year warranty which supply house honored.
The only bad thing i had to buy another one to get it right way and then send the bad one back and cover the shipping of $48.
I hope this was just a bad pump but time will tell.
monte
minnesota
10 years ago
Verified Buyer
Was this review helpful to you?
