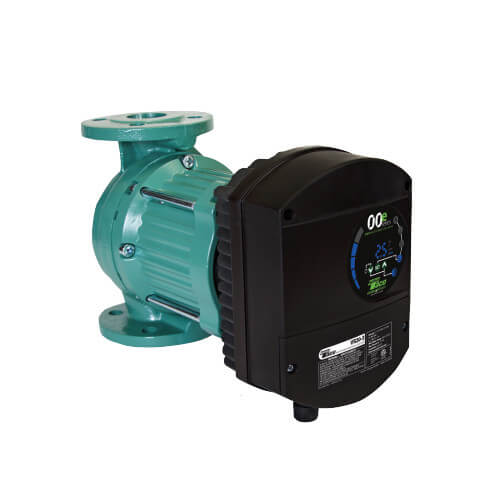

Viridian High Efficiency Circulator (0.035 to 1.088 HP, 110-240V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
VR20-3 has been discontinued
Discontinued September 1, 2022
This product was discontinued by the manufacturer.
MANUALS (1)
This item replaces: VR20-1, 975-201RP
'/%3E%3C/svg%3E){kind=small}
Product Highlights
–
115V, 240v
0.035 to 1.088 HP
1 Year Warranty
Flanged x Flanged Connection
235 MAX GPM
175 MAX PSI
Description
–
The Taco Viridian is a web-enabled, high efficiency, wet rotor, variable speed commercial
pump product line for chilled and hot water applications. All settings and pump access can
be done over an internet connection making installation, setup and service easy. The ECM
motor saves up to 80% of the electrical energy compared with conventional pumps and its
multiple operating modes fit most applications.
Specifications:
Specifications:
- Max. Operating Pressure: 175 PSI (12 bar)
- Water Temperature Range: 14F - 230F (-10 - 104C)
- Ambient Operation Temperature Range: 32F - 104F (0- 40C)
- Designed for closed loop heating and cooling systems pumping water or a water/glycol mixture
Specs
–
| Application: | Commercial |
|---|---|
| Type: | Pump |
| Horse Power: | 0.035 to 1.088 |
| Connection Size: | 2" |
| Material: | Cast Iron |
| Amperage: | 3.5 |
| Voltage: | 115V 240v |
| Max Pressure (PSI): | 175 |
| Connection Type: | Flanged x Flanged |
| Max Flow (GPM): | 235 |
| Flow Range (GPM): | 0-235 |
| Max Head (Ft): | 45.54 |
| Head Range (ft.): | 0-45.54 |
| Phase: | 1 |
| RPM: | 3000 |
| Temperature Range (F): | 14°F - 230°F |
| Speeds: | Variable |
| Warranty: | 1 Year |
