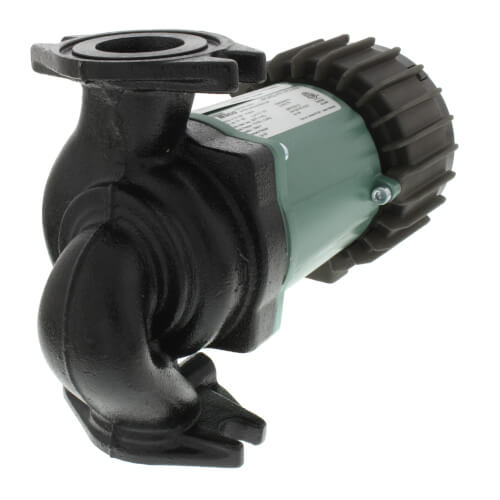

Viridian Self-Adjusting High Efficiency Wet Rotor Circulator, Less Flanges - Rotated (115V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
VR3452-HY1-FC1A00 has been discontinued
Discontinued October 9, 2021
This product was discontinued by the manufacturer.
MANUALS (4)
Direct Replacement:
0034ePlus ECM High Efficiency Cast Iron Wet-Rotor Circulator (115/208/230V)
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
115V
1/100 to 1/4 HP
1 Year Warranty
Flanged x Flanged Connection
52 MAX GPM
145 MAX PSI
Description
–
The Viridian VR3452 circulator is a self-adjusting, high-efficiency wet rotor circulator
for chilled and hot water applications. All settings can be accomplished on the
user-friendly interface. The ECM permanent magnet motor saves up to 85% of
the electrical energy compared to conventional pumps.
Operating Modes:
Operating Modes:
- Auto mode (default)
- Proportional pressure control
- Constant pressure control
- Constant speed
- Night setback turndown
- High-efficiency ECM motor uses up to 85% less electricity

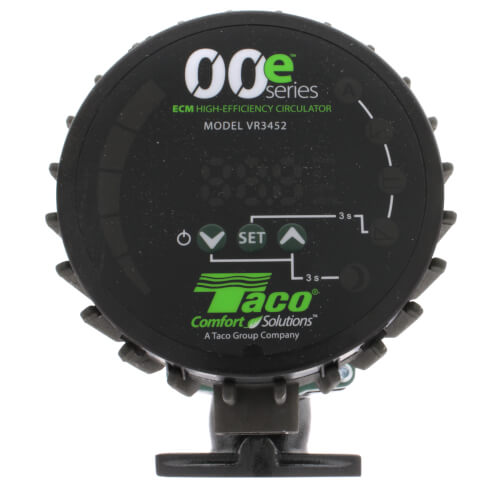

- LED displays watts, flow & RPM
- Compact size for easy handling and installation
- Plug & play simplicity
- Robust construction for long life
- Industry standard flange configuration and lay length
- Low noise operation
- Cataphoresis coated volute
- Communication module (Standard on -FC1A01 models)
Specs
–
| Application: | Commercial |
|---|---|
| Type: | Pump |
| RPM: | 1100 - 4400 |
| Connection Type: | Flanged x Flanged |
| Material: | Cast Iron |
| Amperage: | 2.5 |
| Horse Power: | 1/100 to 1/4 |
| Voltage: | 115V |
| Max Pressure (PSI): | 145 |
| Head Range (ft.): | 0-34 |
| Max Head (Ft): | 34 |
| Flow Range (GPM): | 0-52 |
| Max Flow (GPM): | 52 |
| Phase: | 1 |
| Speeds: | Variable |
| Warranty: | 1 Year |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 2 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

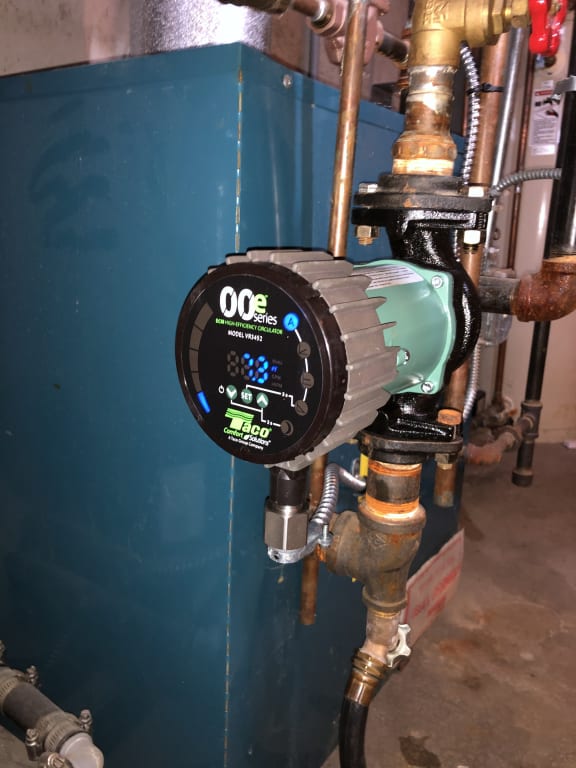

Customer Images
