$209.15 each
In Stock
Get 15 Tomorrow, Jul 2
Order by 6PM, receive Tomorrow
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
0.96 Amps
74 Watts
1550 RPM
1/20 HP
9-1/8"
Description
–
IMPORTANT: Vents/chimneys utilizing in-line draft inducers must be vertically terminated above the roof line. Do NOT use for side wall venting.
Please see "Submittal Sheet" PDF for a BTU input chart by pipe size.
Overview

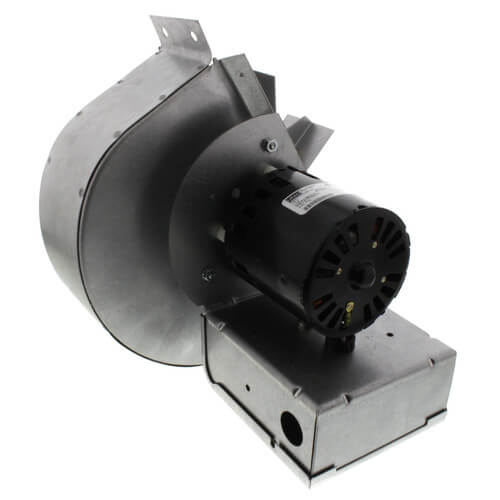

Tjernlund in-line draft inducers assure positive draft when restricted boilers and furnaces, poor chimneys or negative pressures in buildings prevent proper exhaust of combustion gases. The venturi action starts air moving up the stack instantly & keeps it moving smoothly. These units are quick and easy to install and completely automatic in operation. In-line draft inducers are built for long-lasting, trouble-free service and available in sizes and capacities to meet virtually all heating system requirements. The Vari-Draft control permits adjustment to individual job requirements.
Solves Venting Problems Caused by:
Undersized chimneys, negative pressures, long horizontal vent connectors, down drafts, cold equipment starts, restrictive heat exchangers/combustion chambers
Typical Applications:
Boilers/furnaces, water heaters, modular boiler systems, multiple appliances, bakery ovens, factory processes
Please see "Submittal Sheet" PDF for a BTU input chart by pipe size.
Overview
Tjernlund in-line draft inducers assure positive draft when restricted boilers and furnaces, poor chimneys or negative pressures in buildings prevent proper exhaust of combustion gases. The venturi action starts air moving up the stack instantly & keeps it moving smoothly. These units are quick and easy to install and completely automatic in operation. In-line draft inducers are built for long-lasting, trouble-free service and available in sizes and capacities to meet virtually all heating system requirements. The Vari-Draft control permits adjustment to individual job requirements.
Solves Venting Problems Caused by:
Undersized chimneys, negative pressures, long horizontal vent connectors, down drafts, cold equipment starts, restrictive heat exchangers/combustion chambers
Typical Applications:
Boilers/furnaces, water heaters, modular boiler systems, multiple appliances, bakery ovens, factory processes
Specs
–
| Voltage: | 115V |
|---|---|
| Amperage: | 0.96 |
| Hertz: | 60 |
| Wattage: | 74 |
| RPM: | 1550 |
| Horse Power: | 1/20 |
| Pipe Size: | 5" 6" 7" 8" |
| Height: | 9-1/8" |
| Width: | 9-1/2" |
| Depth (Inches): | 7" |
| Warranty: | 1 Year |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.64 out of 11 reviews
100% would recommend this product
5 star
82%
4 star
9%
3 star
0%
2 star
9%
1 star
0%
Customer Images
Most Liked Positive Review
create positive ventilation
Helps keep flue gases flowing to the outside on water heater installation in a building that has slightly negative air pressure. Low electric usage and lightweight. Mounting onto stack can be a little cumbersome. Quality of this brand has always served well.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I would buy these again, but missing parts
Was disappointed that it did not have the screws and clips to mount to the stacking material.
Showing 1-10 of 11 reviews
I would buy this product again
I'm just commenting on here. Good product.
Dave
15050
9 months ago
Verified Buyer
Was this review helpful to you?
Sturdy build, runs 24x7 for years
I built another coal stove chimney and like my 10 year old one, added one of these to assure no backdrafts and safe lighting. It runs all the time even in summer (to vent radon). Quiet and effective. 115 Watts.
Stovie Nix
Harrisburg pa
1 years ago
Verified Buyer
Was this review helpful to you?
I would buy these again, but missing parts
Was disappointed that it did not have the screws and clips to mount to the stacking material.
Jason
Colorado Springs, CO
2 years ago
Verified Buyer
Was this review helpful to you?
I will buy more products from Supply House
draft inducer for an outside wood furnace. It only lasts 2 to 3 seasons.
The price is reasonable and far cheaper than a local heating company
David
Maine
4 years ago
Verified Buyer
Was this review helpful to you?
Works great
it's perfect does what it shows
Monty
Iowa
4 years ago
Verified Buyer
Was this review helpful to you?
Should have come with silicone gasket
Should have come with silicone gasket
plumber
ny
6 years ago
Verified Buyer
Was this review helpful to you?
Well worth the money
We had to replace the one in an evaporator. Drop in fit. Straight forward wiring.
Scott M.
IN
7 years ago
Verified Buyer
Was this review helpful to you?
In line motor
Great in. Line draft motor delivery on time product excellent. Recommend supply house to everyone in the hvac busy
J
New York
7 years ago
Verified Buyer
Was this review helpful to you?
I would buy again
This product is used on an outdoor wood furnace,it works well but is used outside and doesn't last very long
Big al
Pennsylvania
7 years ago
Verified Buyer
Was this review helpful to you?
Makes things positive
Used to keep flue gas going up the stack in a building that has slightly negative air pressure due to exhaust fans. Compact and easy on the electric usage. Can be a challenge to get mounted neatly to stack. This brand has always served well.
Nelster
Lancaster PA
11 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Does this unit have a delay off timer built in that is adjustable or is this just power on with the burner and off when burner shuts down? Will be used on small oil furnace with outside chimney (poor draft when cold) . Replacing an older failed unit. Just can't tell if other controls are needed.
Asked by Jwrmech 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHello, thanks for writing in. I do not see that this inducer has a timer. Oil burning installations and gas-fired units without a draft hood/diverter should include a barometric draft control. This should be adjusted to slightly open at maximum draft. The barometric control will then open further to regulate draft as external conditions change to lessen effect required by the inducer.
Was this review helpful to you?
Q: Do you make a booster for horizontal flue piping
Asked by No 8 years ago
Add your answer
Verified Reply- Supplyhouse.com TeamThe booster may be mounted on horizontal vent piping, but on the bottom to prevent from creating a heat trap. The description is just to clarify that the venting termination must be vertically terminated above the roof line if you want to install this booster anywhere along the line. I hope this helps clarify.
Was this review helpful to you?
Verified Reply- Supplyhouse.com TeamThe booster may be mounted on horizontal vent piping, but on the bottom to prevent from creating a heat trap. The description is just to clarify that the venting termination must be vertically terminated above the roof line if you want to install this booster anywhere along the line. I hope this helps clarify.
