True-RMS Dual Display 600A HVAC/R Clamp Meter w/ Temperature & Capacitance
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
DL579 has been discontinued
Discontinued December 4, 2025
This product was discontinued by the manufacturer.
MANUALS (2)
This item replaces: DL379, DL379B, DL479
Suggested Alternative:
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
1 Year Limited Warranty
Description
–
The True-RMS Dual Display 600A HVAC/R Clamp Meter w/ Temperature & Capacitance measures capacitance, voltage, circuit continuity, resistance, temperature
via K-Type thermocouples and diode malfunctions.
Features:
Specifications:
Includes:
Features:
- Check system boards and live wires
- TRMS
- Dual Display
- Backlight
- Min/Max/Hold
- Test Lead Storage
- High-voltage alert
- Easy access battery cover latches
- Raised molding
- Auto and manual ranging
- Auto Off
- Low battery indicator
- 1-Year limited warranty
Specifications:
- Display count: 6000
- Low battery warning: Yes
- Protective boot or overmolding: Yes
- AC Volts: 750VAC
- DC Volts: 1000VDC
- AC current (amps): 600A AC
- DC current (amps): 600A DC
- Resistance (Ohms): 60MOhms
- Temperature: -328° to 2462°F
- Capacitance (Farads): 6000µF
- Continuity: Yes
- Diode: Yes
- NCV Detection: Yes

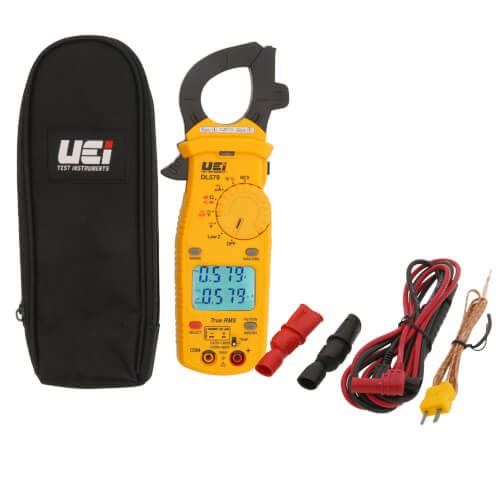

Includes:
- Test Leads (ATL55)
- Alligator Clips (AAC3)
- 2 Temperature Probes (ATT29)
- Zippered Pouch
- 2 Batteries (AAA)
- Manual
Specs
–
| Product Type: | Clamp Meter |
|---|---|
| Battery Type: | AAA |
| Batteries Included: | 2 |
| Warranty: | 1 Year Limited |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.75 out of 4 reviews
100% would recommend this product
5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%
Showing 1-4 of 4 reviews
very accurate, and does more than Fluke!
I checked the amp draw of my furnace combustion blower with the UEi DL579, at 2.3 amps. My Fluke 902FC also showed 2.3 amps. I tested the flame sensor with the 579. It showed 2.8 micro amps. The Fluke showed 2.9 micro amps. The accuracy of the DL579 is right up there with the much more expensive Fluke 902FC, and it does a lot of things that the Fluke can't do!
Chuck
northern Illinois
1 years ago
Was this review helpful to you?
I would buy this product again
Great price & quick response. Thanks Guys
Cal
Pascagoula, MS
1 years ago
Verified Buyer
Was this review helpful to you?
Great meter
Well made, does everything you need for hvac work. Only downside is backlight auto shuts off and no way to disable that feature.
Coco
North Carolina
1 years ago
Verified Buyer
Was this review helpful to you?
