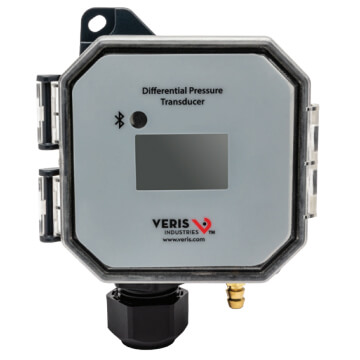

Bluetooth Universal 3-Wire Dry Media Differential Pressure/Air Velocity Transducer w/ LCD Display, NIST Certified (0 to 10" WG)

The PX3 transducer can measure either air pressure or velocity with the flip of a switch. The universal model comes in one pressure/velocity range - 0 to 10 in-WG/0 to 7000 ft/min with seven field-selectable sub-ranges for pressure and eight for velocity. The PX3 has an IP65/NEMA 4 environmental rating and a 5 years limited warranty.

Applications:

• Duct static pressure (Pressure mode)
• Building or room pressure (Pressure mode)
• Filter status (Pressure mode)
• Air flow measurement (Velocity mode)

Product Features

• Wireless configuration - view and configure all field selectable parameters via smartphone, no ladder necessary for duct mount applications
• High reliability sensor technology for long-term, maintenance-free operation
• Excellent tolerance to overpressure and vibration reduces field failures
• Water resistant housing - IP65/NEMA 4 housing allows for mounting in wash-down locations
• Circuit protection avoids damage due to incorrect input wiring
• Universal enclosure
• NIST certified (16-point calibration)
• Uni-directional or bi-directional, DIP switch selectable modes
• Pushbutton auto-zero and digital input (2-position terminal block)
• For indoor or outdoor use
