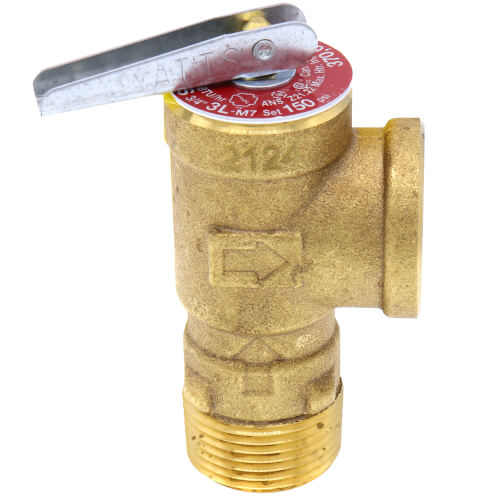

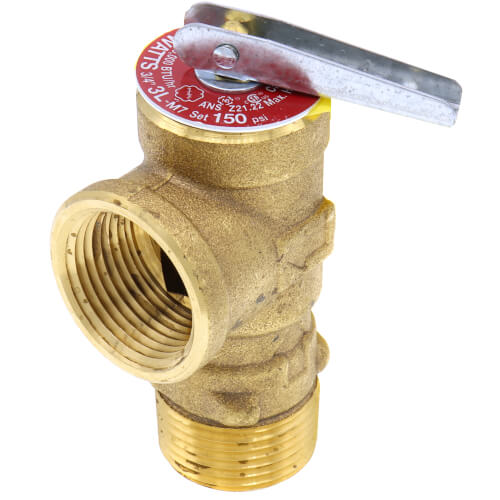

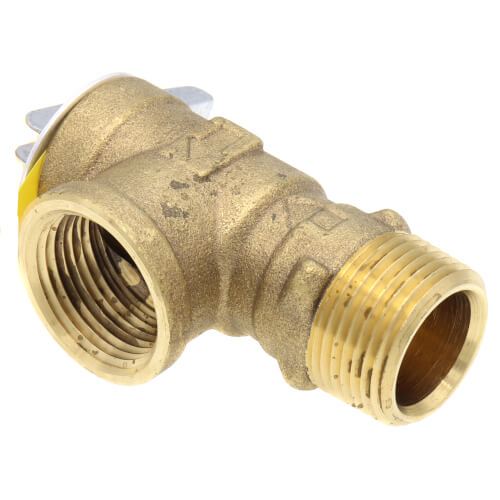

3/4" 3L-150 Poppet Type Pressure Relief Valve w/ Test Lever (150 psi)0011917 3/4" 3L-150 Poppet Type Pressure Relief Valve w/ Test Lever (150 psi)
Free Shipping On orders over $99
Need replacement parts for this unit?
- Test lever included
- ASME rated and CSA certified
- Brass body construction
- Pressure relief is set at 150 psi (10.3 bar)
- Body Material: Bronze
- EANUCCCode: 098268001563
- Inlet Connection Size: 3/4"
- Inlet Connection Type: Male Threaded
- Inlet Thread Type: NPT
- Lead Free: NO
- Maximum Temperature-Fahrenheit: 210
- Maximum Working Pressure-PSI: 113
- Outlet Connection Size: 3/4"
- Outlet Connection Type: Female Threaded
- Outlet Thread Type: NPT
- Pressure Relief Setting-PSI: 150
- Pressure Steam Discharge Capacity: 370,000 BTU per hour
- Protection Type: Pressure
- Series: 3L
Pressure Relief Valve
|Pressure Set Point:||
Male x Female
|Max Temp (F):||
