Description

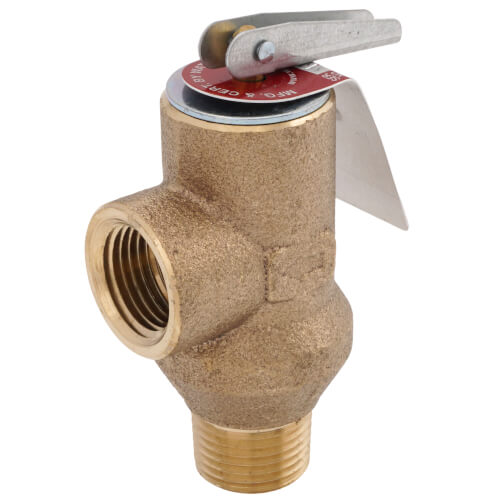

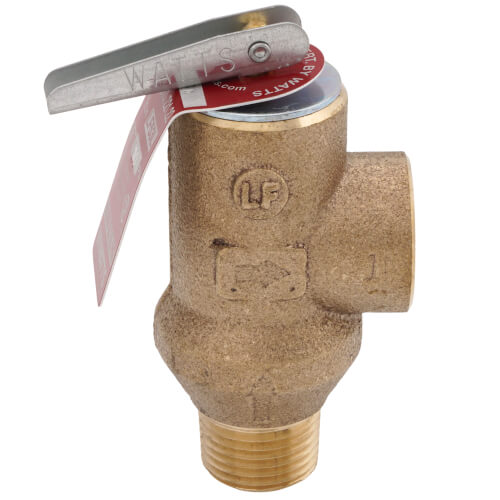

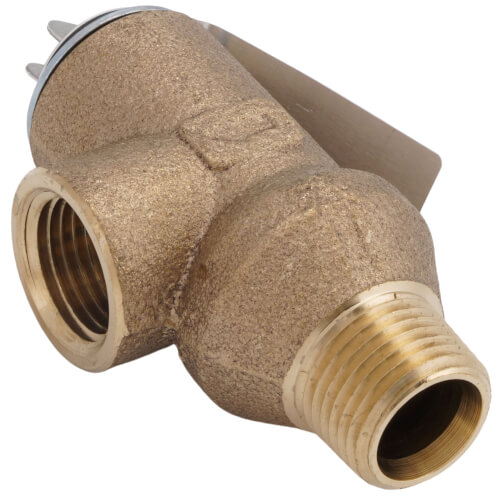

Series 53L Pressure Relief Valves are used in residential applications to protect against excessive pressure on domestic storage tanks and tankless water heaters. It consists of a bronze body construction with NPT threaded male inlet and NPT threaded female (drain) outlet connections, stainless steel spring, and test lever.

ANSI Z21.22 approved, design certified and listed by CSA, and UL listed. Pressure Range: 75 to 175psi (5.2 to 12.1 bar), Standard Pressure Setting: 75psi (516.7 kPa), Optional Settings: 100, 125, and 150psi (6.9, 8.6, and 10.3 bar); Also available at 50psi (3.45 bar) setting.

Features
  • Bronze bodies
  • Furnished with test levers
  • Model 53L available without test lever (Model 53)
  • Relieves excessive pressure on storage tanks
  • Relieves excessive pressure on tankless water heaters
  • Model 53L is CSA certified
  • Compatible with Model 210 gas shutoff valves
  • Model 53L is furnished in 1/2" size
  • ASME construction/Tested, listed and certified by the National Board of Boiler and Pressure Vessel Inspectors
Hide Description
Specs
Material:

Bronze

Pressure Set Point:

100 psi

Size:

1/2"

Type:

Pressure Relief Valve

Lead Free:

Yes

×
