Description

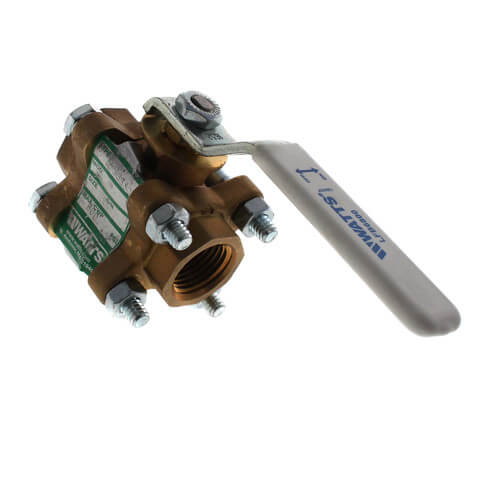

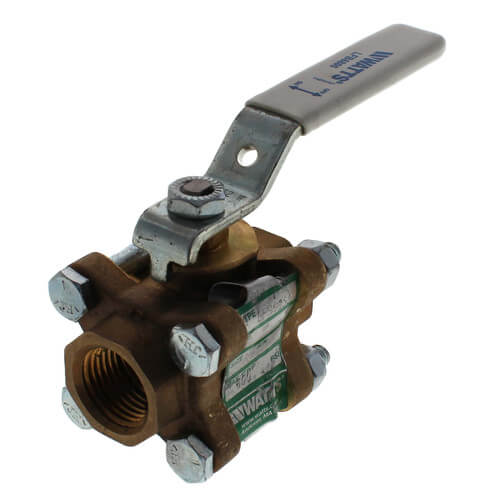

Series LFB6800 3-Piece, Full Port, Lead Free copper silicon alloy Ball Valves feature an in-line maintenance design that offers serviceability of all operating parts without disturbing the rigid pipeline system. The LFB6800 full port orifice ensures maximum flow capacity, while Durafill® seats, stainless steel ball and stem provide maximum safety and highest operating pressure and temperature limits. The LFB6800 features Lead Free* construction to comply with Lead Free* installation requirements.

Features
  • Lead Free* copper silicon alloy body
  • 3-piece, lift-out design
  • Carbon/glass reinforced PTFE Durafill® valve seats
  • Stainless steel ball and stem
  • Blow-out proof, pressure retaining stem
  • Standard actuator mounting pads
  • Vinyl insulator on heavy duty, zinc plated carbon steel handles
  • Low operating torque
  • Adjustable stem packing gland
  • Each valve factory tested
Hide Description
Manuals (2)
Specs
Size:

1/2"

WOG:

600

Max Pressure (PSI):

150

Connection Method:

Threaded

Connection Type:

FNPT x FNPT

Valve Construction:

3 piece

Handle Style:

Lever

Features:

Standard

Lead Free:

Yes

Port Type:

Full Port

×
