0555104 has been discontinued
Discontinued October 10, 2019
This product was discontinued by the manufacturer.
MANUALS (1)
Direct Replacement:

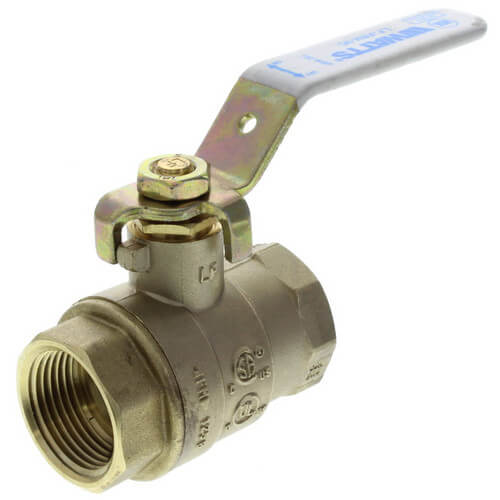

LFFBV-3C-M1, 1" Full Port Threaded Ball Valve, Lead Free
Product Highlights
–
1"
FNPT x FNPT Connection
Brass
Yes
Full Port
175 MAX PSI
Description
–
Series LFFBV-3C 2-piece, full port, Lead Free* ball valves are used in
commercial and industrial applications for a full range of liquids and gases.
They feature a bottom-loaded blowout proof stem, virgin PTFE seats,
thrust washer, and adjustable stem packing gland, stem packing nut,
chrome plated Lead Free* brass ball, copper silicon alloy brass adapter,
and steel handle. The Series LFFBV-3C, LFFBVS-3C features Lead Free*
construction to comply with Lead Free* installation requirements.
Features
Features
- Lead Free forged copper silicon alloy body and adapter
- Certified to NSF/ANSI standard 61/8
- CSA approved threaded valves only , 1/4" to 3" (15 - 80mm)
- UL/FM approved threaded valves 1/2" to 2" (15 - 50mm)
- Fluorocarbon elastomer stem O-ring prevents stem leaks
- Adjustable stem packing gland
- PTFE stem packing seal, thrust washer, and seats
- Bottom loaded blowout proof stem
- Machined chrome plated Lead Free* brass ball
- Valves comply to MSS-SP-110 standard
Specs
–
| Size: | 1" |
|---|---|
| WOG: | 600 |
| Max Pressure (PSI): | 175 |
| Material: | Brass |
| Connection Method: | Threaded |
| Connection Type: | FNPT x FNPT |
| Thread Type: | Female |
| Features: | Standard |
| Lead Free: | Yes |
| Port Type: | Full Port |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
WOG
Material
Connection Type
Thread Type
CURRENT ITEM
1"
600
Brass
FNPT x FNPT
Female
Product Reviews
5 out of 12 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-10 of 12 reviews
Robust Full Port Ball Valve
Installed as the main waterline shutoff in the house. I was getting tired of shutting the water off at the street. Valve appears to be well made, and works as expected.
HK
San Diego, CA
9 months ago
Verified Buyer
Was this review helpful to you?
Solid Quality, Smooth Operation
Replaced an old gate valve with this ball valve. When the valve is in the off position, nothing seeps through like the old gate valve did. Threaded connections were well machined and assembly was a breeze.
Lins
Mankato, MN
11 months ago
Verified Buyer
Was this review helpful to you?
Great Servicei
I'm glad I found this company, they have been stellar with their customer service and pricing. I'll continue to purchase more items from them bc they are top notch in my book.
KJK
Mi
11 months ago
Verified Buyer
Was this review helpful to you?
great valve
used on a main water line.
wjb
weston , florida
3 years ago
Verified Buyer
Was this review helpful to you?
Good quality valve
Good quality valve overall. The casting feels very solid and the handle is nice and thick.
Benjamin
Goleta, CA
6 years ago
Verified Buyer
Was this review helpful to you?
Quality 1" full port valve
Placed one at the meter box outside and one inside on the panel. Good quality full port ball valves.
Double_D
AR
6 years ago
Verified Buyer
Was this review helpful to you?
Good
No issues thus far, no leaks
djc
Upstate NY
7 years ago
Verified Buyer
Was this review helpful to you?
Great product
Great product and price. Works as it should
Matt
Brewster
7 years ago
Verified Buyer
Was this review helpful to you?
great ball valve
used for a wood boiler
dirt
carlton kansas
7 years ago
Verified Buyer
Was this review helpful to you?
Works.
Used it on a 75 gallon water heater running 72 psi, no issues, no problems, no LEAKS!!
LJB
New Jersey
7 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: What is the max temp rating on this value? I plan on using this on a coal boiler that can reach a max temp of 210 degrees. Thanks
Asked by moose77 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe max temperature range is -40 to 400 degrees Fahrenheit.
Was this review helpful to you?
Q: Is this approved for potable water use?
Asked by RonJez 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, The Watts LFFBV-3C is lead free and it is approved for use with potable water systems.
Was this review helpful to you?
