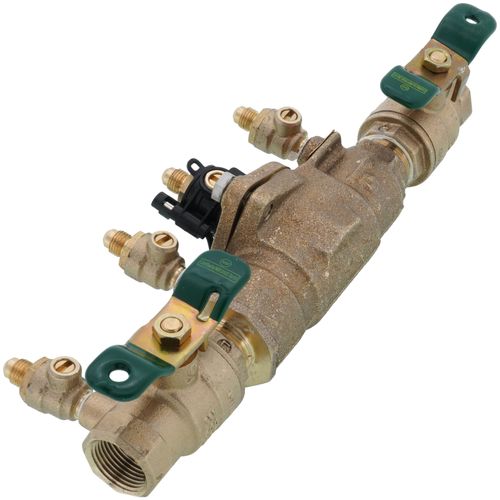

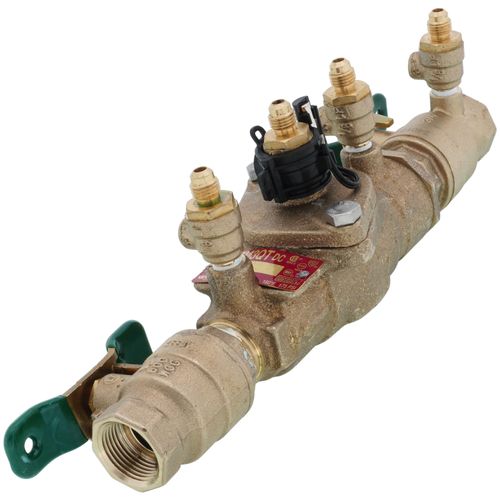

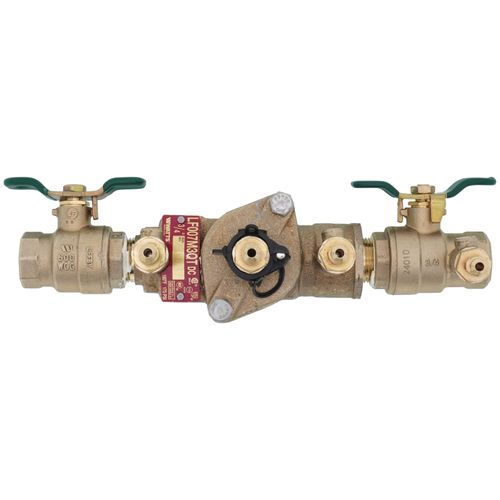

3/4" Lead Free Double Check Valve Assembly w/ Freeze Sensor (LF007M3-QT-FZ)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$474.98 each
In Stock
Get 3 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (2)
This item replaces: 0063231
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/4"
Yes
Cast Bronze
175 MAX PSI
Female Threaded Connection
33°F Min Temp
Description
–
This 3/4 inch lead free double check valve backflow preventer assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a lead free body construction, NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats. The double check valve includes a freeze sensor for use with SentryPlus Alert® technology to signal when ambient temperature approaches the freeze threshold. Activated through an add-on connection kit, the sensor also triggers freeze alerts to facility personnel. Connection kit available for building/irrigation management system (BMS/IMS).
Product Features
Product Features
- Includes a freeze sensor for use with SentryPlus Alert technology to signal when temperature nears the freeze point
- Freeze alerts feature available with add-on connection kit
- Lead free construction
- Modular compact design
- Replaceable seats and seat discs
- Top entry
Specs
–
| Application: | Plumbing |
|---|---|
| Product Type: | Backflow Preventer |
| Size: | 3/4" |
| Material: | Cast Bronze |
| Max Pressure (PSI): | 175 |
| Connection Type: | Female Threaded |
| Min Temp (F): | 33°F |
| Max Temp (F): | 180°F |
| Lead Free: | Yes |
| Height: | 4" |
| Features: | 1/4 Turn Ball Valves |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
4.94 out of 47 reviews
100% would recommend this product
5 star
94%
4 star
6%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-10 of 47 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Flawless
Install as per expected , the unit works and its Watts which is a solid choice.
Lance a lot
Santa Cruz
1 years ago
Verified Buyer
Was this review helpful to you?
3/4 Lead Free Double Check Valve
Well made, Easy to install.
Semperfi2sg
Ohio
2 years ago
Verified Buyer
Was this review helpful to you?
Great reliable valve
I know I can count on the Watts brand. Watts in my 40+ years doing plumbing has Never Failed me.
Dafreud
Willits, Ca
2 years ago
Verified Buyer
Was this review helpful to you?
Versatile mixing valve
Good product with easy install. Can be installed upside down or horizontally. Versatile
Josephine The plumber
New York, NY
2 years ago
Verified Buyer
Was this review helpful to you?
The best
This company is the best
Adam
Nyc
3 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again
Used on wter service aon a ice machine,Install was very easy.
plumos
Texas
3 years ago
Verified Buyer
Was this review helpful to you?
Backflow assembly for sprinkler system
Very fast shipping. It works, that's what matters
noname
Hailey, ID
3 years ago
Verified Buyer
Was this review helpful to you?
I would buy again
Very good product
Shamal
Lilburn GA
3 years ago
Verified Buyer
Was this review helpful to you?
yes
This product is doing what I thought it should do.
Chris
Nashua, NH
4 years ago
Verified Buyer
Was this review helpful to you?
Good product at right price
Fire sprinkler line
Jorge
Belleville Nj
4 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
6 Questions6 Questions
Q: Can this backflow valve be mounted vertically???
Asked by Lou 4 years ago
Add your answer
Verified Reply- SupplyHouseHi Lou! The Series LF007 can be mounted horizontally or vertically. However you must check with your local authority having jurisdiction regarding the approval for vertical orientation and any other installation requirements.
Was this review helpful to you?
Q: Does this valve meet the American Water Works Association Standard C-510 so it can be tested annually to meet EPA backflow prevention requirements for a community water system?
Asked by Steve 8 years ago
Add your answer
Verified Reply- Supplyhouse StaffThis valve meets the following standards, ASSE, AWWA, IAPMO, CSA, UPC Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California.
Was this review helpful to you?
Q: I have this system already yet I am in need of an 'O' ring for it...unfortunately I misplaced the original. Where would I purchase an 'O' ring for this backflow preventer?
Asked by Alicia 14 years ago
Add your answer
Verified Reply- PexSupply StaffBoth the cover and seat o-rings for this assembly can be obtained as part of the complete rubber parts repair kit (item 0887040).
Was this review helpful to you?
-
I tried Lowe's & other stores. My O ring was damaged. My back flow meter serviceman keeps in stock O ring for ¾" check valve. I believe he charged me $ 3.50. This is in Charlotte, NC. Charlie Modi
Was this review helpful to you?
Q: I plan on using this double check valve on a water powered sump pump backup system. Does the insertion of this valve reduce the water pressure? Since the performance depends on the water pressure, I am concerned about reducing the pressure.
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffAccording to the manufacturer, you can expect to lose between 8 and 15 psi across a backflow preventer.
Was this review helpful to you?
Q: I have a febco 805y will this preventer work on my system
Asked by natch 15 years ago
Add your answer
Verified Reply- PexSupply StaffAccording to the manufacturer, the Watts 007M1-QT can replace the FEBCO 805Y. They are both Double Check assemblies and both perform the same function. The direct replacement for the FEBCO 805Y is the FEBCO 850.
Was this review helpful to you?
Q: I'm ready to blow out my sprinkler system. Is there any water that could freeze in the valve during the winter? How do I prevent frozen waterin the valve?
Asked by golf4man 16 years ago
Add your answer
Verified Reply- PexSupply StaffThe most common practice is to use an air compressor to blow out all the lines and make sure all the valves are open while doing this.
Was this review helpful to you?
