$376.65 each
In Stock
Get 3 Fri, Jun 12
Order by today, receive Friday
MANUALS (1)
This item replaces: SWS100, 56921
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
120-240V
1 HP
3 Year Limited Warranty
120°F Max Temp
1" NPT
Cast Iron
Description
–

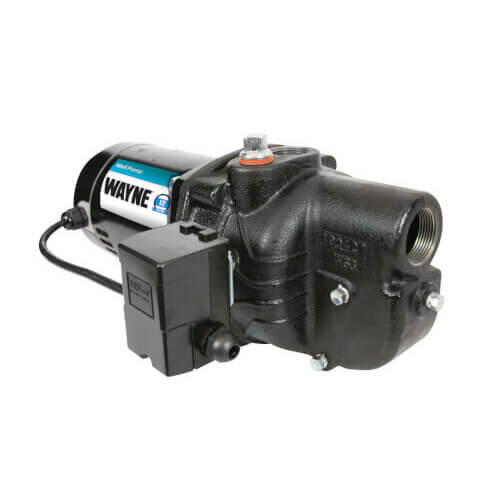

Clean water is important to you, and it’s important to WAYNE. The 1 HP SWS100 is proudly assembled in the USA and can safely pump up to 630 Gallons of fresh water per hour at 50 PSI. Engineered for reliable long-lasting use in wells up to 25 feet – warrantied for 3 years.
Features:
Features:
- Merchant Category: Plumbing
- Category: Well
- Sub Category: Cast Iron
- Base Construction: Cast Iron
- Warranty: 3 Year
- HP: 1 HP
- Motor Type: 120/240V Split Phase Oil-Filled
- Amperage - FEI: 11/5.5
- Volts 120/240: 120/240
- Primary GPH - MAX FLOW: 1084
- GMP-MAX Flow: 18
- GPH @ 5ft: 1022 @ 30 PSI
- GPH @10: 960 @ 30 PSI
- GPH @15: 732 @ 30 PSI
- GPH @20: 837 @ 30 PSI
- Max Head: 25 ft.
- Max Temp: 120
- Impeller Type: Centrifugal
- Suction Type: 1-1/4 in. NPT
- NPT Discharge: 1 in.
- Cord Length: Wire In Field
- Discharge: 1" NPT Discharge
Specs
–
| Max Temp (F): | 120°F |
|---|---|
| Voltage: | 120-240V |
| Horse Power: | 1 |
| Discharge: | 1" NPT |
| Max Flow (GPH): | 1084 |
| Max Head (Ft): | 25 |
| Warranty: | 3 Year Limited |
| Material: | Cast Iron |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
4.67 out of 3 reviews
100% would recommend this product
5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Does the job
works well so far ...I just don't like the design where the electrical connection is closer to the pump than the motor... didn't think it mattered at time of purchase, but while installing it took extra work rerouting the electrical hook up. Different than the pumps I have replaced in the past.
FreeManBrett
Middleburg, Fl.
28 days ago
Verified Buyer
Was this review helpful to you?
Awesome
The price on the 1hp Wayne shallow well jet pump was great, shipping was free and delivered promptly on the day promised.
RK
Northern Wisconsin
10 months ago
Verified Buyer
Was this review helpful to you?
I will Buy this again.
Working perfect , very quiet, holds good pressure while in shower.
HANK
Cape May Court House N.J.
2 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Does this have a built in pressure switch that will work with a pressure tank?
Asked by Jason 3 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi Jason. This pump has a pressure switch that is pre-set at 30-50 PSI for automatic operation (do not adjust).
