CGI-7 - 140,000 BTU Output Cast Iron Boiler, Spark Ignition w/ Taco 007 Circulator - Series 5 (Nat Gas)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (4)
Lift Gate
Product Highlights
Description
Heating equipment must be installed, commissioned, and serviced by a licensed and qualified professional in accordance with manufacturer instructions, applicable codes, and industry standards. Manufacturers do not accept warranty or technical support requests from homeowners or unlicensed individuals. All warranty and technical inquiries must be initiated by the licensed professional responsible for the installation.

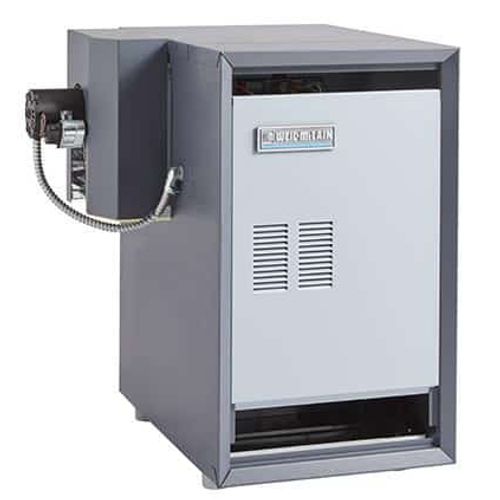

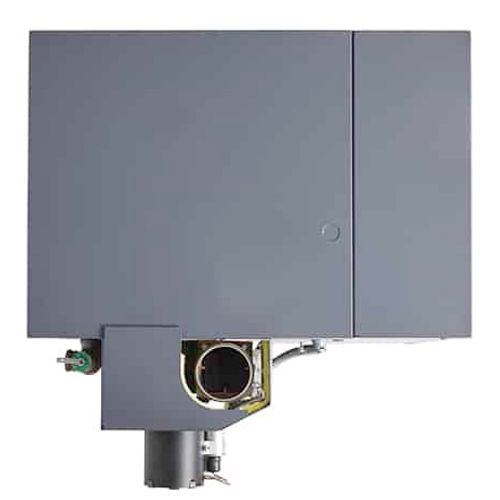

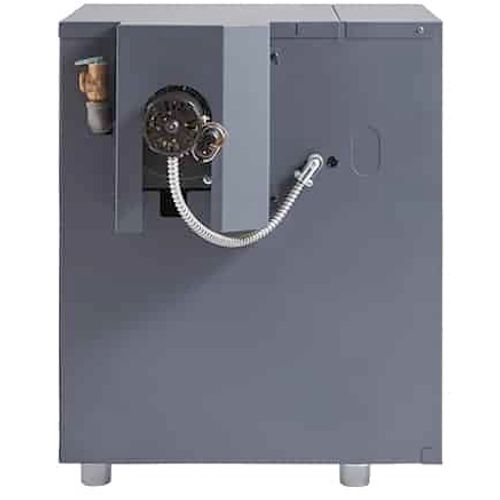

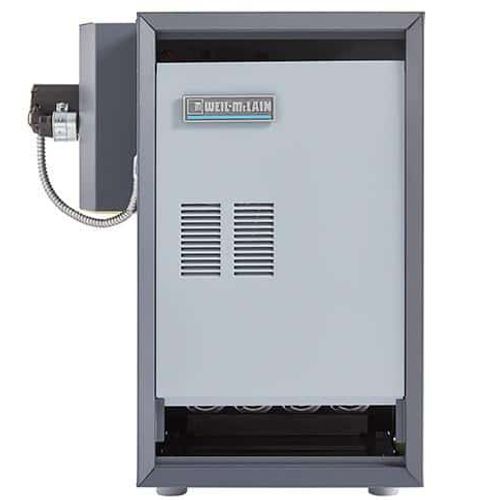

The Weil-McLain CGi Series 5 is a cast iron, gas-fired water boiler designed for both residential and light commercial applications. Featuring durable cast iron sections and an insulated steel jacket, it offers long-lasting performance and improved heat retention.
Features:
- Durable Design: Gas fired water boiler with cast iron sections
- Vent Options: Natural draft and direct exhaust capability
- Flexibility: Can be used with natural or propane gas
- Safety Built-In: Now with built-in low water cut off functionality
- Compact Design: Compact design saves valuable living space
- Simplified Venting: No vertical draft hood and no mechanical vent damper
- Service Friendly: Intermittent electronic ignition with standard components for easy servicing
- High Efficiency: 84% AFUE High Efficiency
Specs
| Height (Inches): | 28-3/8" |
|---|---|
| IBR Rating: | 141000 |
| Boiler Type: | Standard |
| Product Type: | Boiler |
| Vent Size: | 3" |
| Vent Type: | Power Vent |
| BTU Output: | 141000 |
| Fuel Type: | Natural Gas |
| Ignition Type: | Spark Ignition |
| Water Connection: | 1-1/4" |
| Depth (Inches): | 23-1/4" |
| BTU Input: | 190000 |
| Pressure Relief: | 30 psi |
| Gas Connection: | 3/4" |
| Application: | Heating |
| System Type: | Hydronic (Water) |
| Width (Inches): | 22" |
| DOE Rating: | 162000 |
| Warranty: | 20 Year (Heat Exchanger)/ 2 Year (Parts) |
| Features: | 007 Circulator |
| Efficiency: | 84% |
| Voltage: | 120v |
| Max Altitude (Feet): | 4500 |
