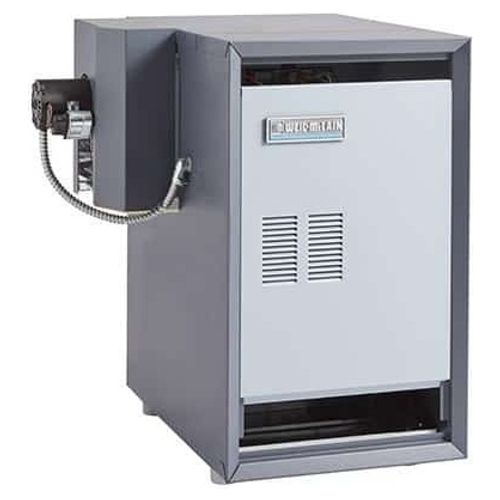

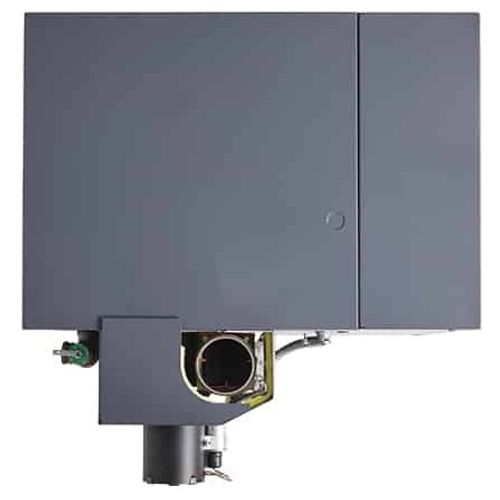

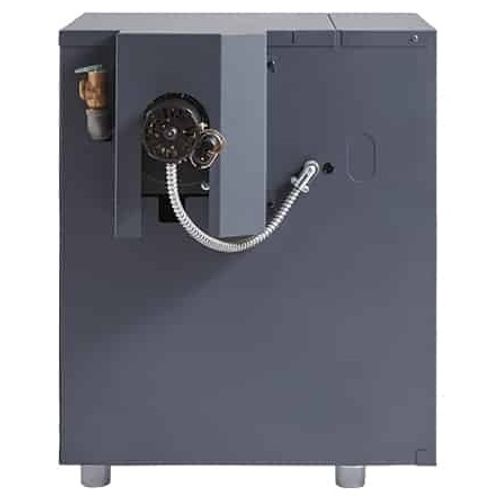

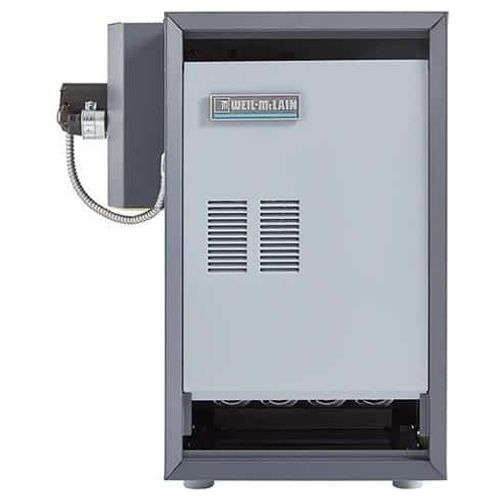

This is a CGI-3 - 43,000 BTU Output Boiler, Spark Ignition, No Circulator - Series 5 (LP Gas) manufactured by Weil McLain.
| Vent Size: | 3" |
|---|---|
| Fuel Type: | Propane |
| BTU Input: | 58000 |
| Warranty: | 20 Year (Heat Exchanger)/ 2 Year (Parts) |
| Water Connection: | 1" |
| Efficiency: | 84% |
| DOE Rating: | 49000 |
| System Type: | Hydronic (Water) |
| Ignition Type: | Spark Ignition |
| Vent Type: | Power Vent Type B Vent (Chimney) |
| BTU Output: | 43000 |
| Depth (Inches): | 23-1/4" |
| Product Type: | Boiler |
| Features: | Standard |
| Max Altitude (Feet): | 4500 |
| Boiler Type: | Standard |
| Height (Inches): | 23-3/8" |
| Width (Inches): | 10" |
| IBR Rating: | 43000 |
| Gas Connection: | 1/2" |
