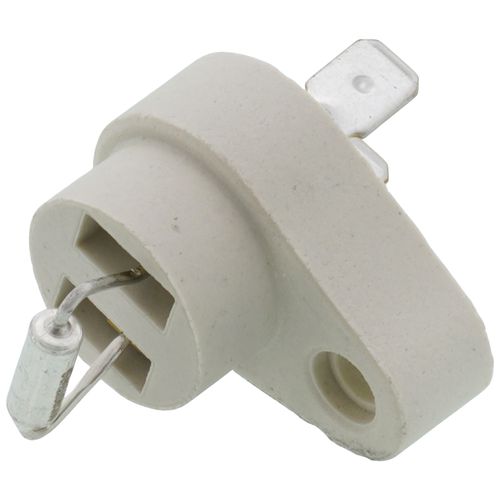

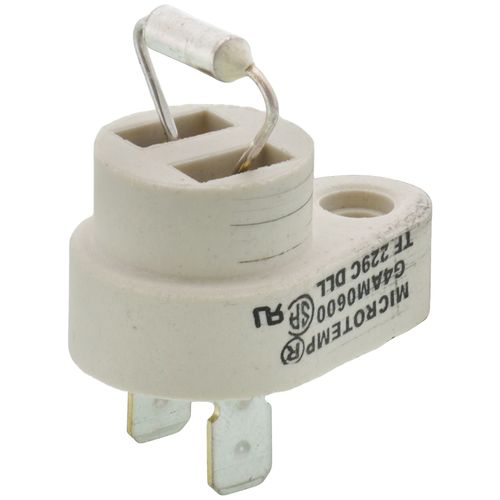

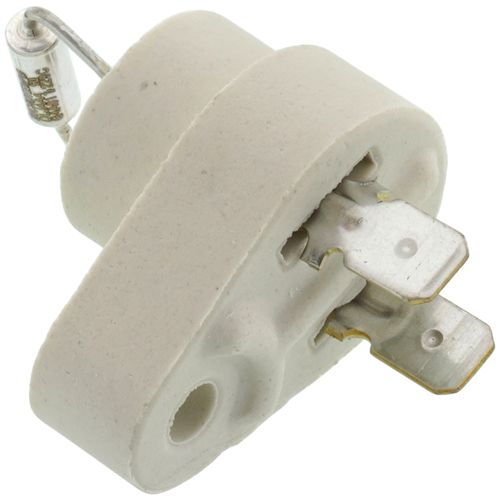

Rollout Thermal Fuse Element, 228°C, 512-050-230
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$30.28 each
In Stock
Get 20 Tue, Jun 23
Order by today, receive Tuesday
'/%3E%3C/svg%3E){kind=small}
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
CG Boilers, PFG Boilers
Description
–
Weil-McLain 512-050-230 Rollout Thermal Fuse Element, 228°C, is a safety component used on selected Weil-McLain gas boilers to interrupt burner operation if excessive rollout or high temperature conditions occur near the burner area.
Key Features:
Compatibility & Applications:
Installation & Operation Notes:
Maintenance & Troubleshooting:
Key Features:
- OEM Weil-McLain rollout thermal fuse element rated for 228°C (approximately 442°F) opening temperature
- Compact sensor assembly designed for mounting in the burner or combustion area as specified in the boiler parts diagram
- One-time thermal fuse element that opens the safety circuit when exposed to abnormal high temperature conditions
- Genuine Weil-McLain replacement part supplied for use on designated CG, EG, CGi, PFG and related boiler series where listed in the parts catalog
Compatibility & Applications:
- Intended for use on Weil-McLain gas boilers that specify part number 512-050-230 in the official parts listings
- Used as part of the burner safety system to help protect the boiler and surrounding area from damage in the event of flame rollout or blocked flue conditions
- Applicable on both steam and water boilers where the service literature calls out this rollout thermal fuse element
- Should be matched to boiler model and series using Weil-McLain parts tools or service documentation before replacement
Installation & Operation Notes:
- Disconnect power to the boiler and shut off gas supply before servicing the rollout fuse circuit
- Follow the specific Weil-McLain service instructions for the boiler model when removing the existing fuse element and routing wiring
- Install the new rollout thermal fuse element in the same location and orientation as the original part, with any clips or brackets reinstalled securely
- After installation, restore power and gas, then verify proper boiler startup and confirm that all safety devices, including rollout protection, are wired correctly
Maintenance & Troubleshooting:
- Replace the rollout thermal fuse element if the boiler service diagnostics indicate an open rollout fuse or if the element shows visible damage or overheating
- When a rollout fuse has opened, inspect the burner compartment, flue passages, and heat exchanger for blockage, improper combustion, or other causes of abnormal temperature before returning the boiler to service
- Do not bypass or jumper the rollout fuse; the boiler must not operate without a functional rollout safety device in place
- If repeated rollout fuse trips occur, investigate venting, combustion air supply, and burner adjustment in line with Weil-McLain service recommendations
Specs
–
| Used With: | CG Boilers PFG Boilers |
|---|
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.94 out of 49 reviews
100% would recommend this product
5 star
94%
4 star
6%
3 star
0%
2 star
0%
1 star
0%
Showing 1-10 of 49 reviews
yes
my boiler is 33 years old and thanks to your company I can rely on getting what I need
Lennyc
Milford PA
3 months ago
Verified Buyer
Was this review helpful to you?
Product and service was great
I was able to find the specific thing I needed and it arrived the next day.
Joe
Indiana
5 months ago
Verified Buyer
Was this review helpful to you?
Fixed my aging boiler
After narrowing down the problem with my aging boiler, I order this rollout fuse. It arrived quickly and fixed the problem. It has been working great again since it was installed. This is the second time I needed some parts for my boiler. Both times, I ended up ordering from SupplyHouse. Cannot beat their prices and shipping. Definitely the first place I will go next time I need a part.
JJ
Pittsburgh, PA
5 months ago
Verified Buyer
Was this review helpful to you?
Perfect fit and easy repair, anyone could do it
I am a woman in my 60s and did not want to pay someone $212 to replace this part. Did it myself in 2 minutes, just unplug the old one, unscrew the screw, and plug/screw the new one in. Perfect.
Fixer Lady
New York
7 months ago
Verified Buyer
Was this review helpful to you?
Great product
Fast shipping and came in on time. Thank you
Skyrocketing
NYC
8 months ago
Verified Buyer
Was this review helpful to you?
Perfect fit
Not much to say, exactly what I needed.
Eddie
Pennsylvania
1 years ago
Verified Buyer
Was this review helpful to you?
Shop Here!
The part was correct and an exact replacement, making replacement easy and without any functionality issues. These guys always get it right, even if you need help figuring out what you actually need.
J. T. P..
PA
1 years ago
Verified Buyer
Was this review helpful to you?
Great product
It was well packaged. It was a perfect fit and it was easy to install.
Sasquasch
Nm
2 years ago
Verified Buyer
Was this review helpful to you?
Great product
Exact fit and easy to install
Sasquasch
New Mexico
2 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Yes I would buy this again
This is a fail safe thermal switch for the house boiler. If the fire for the boiler continues past the water temp. this little switch will shut it all down.
Skip
Wisconsin
3 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: is this auto reset after cut off? or replace is necessary after cut off.
Asked by tom 10 years ago
Add your answer
-
It is not auto reset.
Was this review helpful to you?
-
These cannot be reset, they fail open circuit. Sent from my iPhone
Was this review helpful to you?
- 1stclasstechnician
I had to replace this on my CG-3. It is designed to burn out to keep your boiler from catching on fire. Generally, after time the heat exchanger gets clogged with soot and causes the flame to "roll out" into the area where your wiring and control parts are located. By removing burners you can use a lighted mirror to see the heat excanger. It should be a rusty color and "finger-like" protrusions of pipe should be plainly visible. Solid black is bad and probably what you will see if you have to replace the t.f.e. Do yourself a favor and buy the brush for $30 and check/clean every spring!
