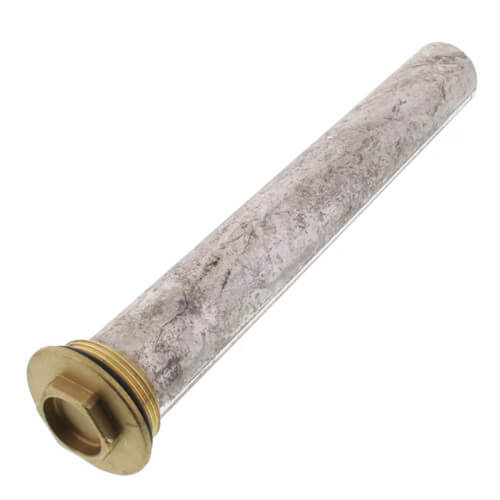

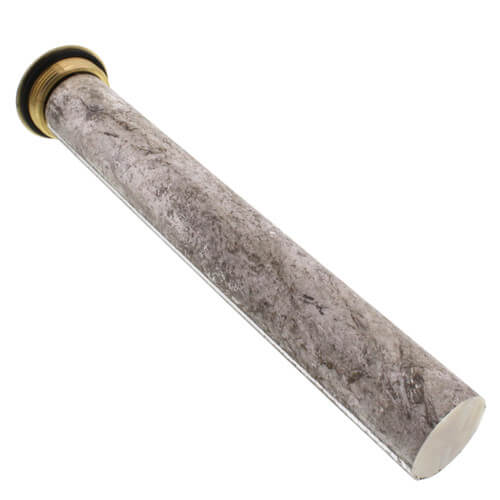

Magnesium Anode Replacement Kit for Aqua-Plus 35-85, 633-500-014
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$150.22 each
In Stock
Get 17 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–
Weil-McLain 633-500-014 Magnesium Anode Replacement Kit for Aqua-Plus 35-85 is a factory replacement anode kit for designated Aqua-Plus indirect water heaters, used to help protect the tank from internal corrosion and extend service life.
Key Features:
Compatibility & Applications:
Installation & Operation Notes:
Maintenance & Troubleshooting:
Key Features:
- OEM Weil-McLain magnesium anode replacement kit for Aqua-Plus 35-85 models
- Includes replacement anode rod, O-ring, insulating washer, and brass bushing
- Magnesium sacrificial anode design to help protect the tank's internal surfaces
- Supplied as a matched kit for service of Aqua-Plus units that specify 633-500-014
Compatibility & Applications:
- Intended for use with Weil-McLain Aqua-Plus 35, 45, 55, and 85 indirect water heater models that list this kit in the official parts information
- Used as part of routine tank maintenance or when inspection shows a depleted anode
- Suitable for residential and light commercial installations where Aqua-Plus water heaters are installed on hydronic systems
Installation & Operation Notes:
- Shut off power to the boiler and circulator, and close isolation valves to the Aqua-Plus unit before servicing
- Relieve pressure and follow the Aqua-Plus installation and maintenance instructions for draining to a safe level before removing the existing anode assembly
- Use the recommended socket size to remove the old anode assembly from the tank opening, then install the new anode, O-ring, insulating washer, and brass bushing from the kit
- Tighten to the torque specified in Weil-McLain literature and restore system pressure, then check for leaks at the anode connection
Maintenance & Troubleshooting:
- Inspect the anode condition during scheduled tank maintenance and replace when significantly consumed or as recommended by Weil-McLain
- If signs of premature tank corrosion, odor complaints, or discolored water occur, inspect the anode and other tank components as part of the diagnostic process
- Do not operate the Aqua-Plus tank without a properly installed anode where specified, since corrosion protection may be reduced
Specs
–
| Application: | Replacement Part |
|---|
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.57 out of 44 reviews
95% would recommend this product
5 star
80%
4 star
5%
3 star
11%
2 star
2%
1 star
2%
Customer Images
Most Liked Positive Review
I will order a new one for next year.
I am glad I ordered it. It was easy to install and the two year old one replaced was almost gone. Cheap insurance.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Defective
The fitting on the new anode rod was not an 1 and 1/4, we tried multiple 1 1/4 sockets on it and they didn't fit. The old one I replaced came right out with an inch and a quarter socket.
Since I had to drain the tank (40 gallons) to service it I was stuck. I couldn't leave the system drained overnight to wait for a new part, so we had to file the fitting down and hammer an impact socket on it to get it screwed back in the tank. It's probably going to be a total pain to remove this since it's recessed from the surface of the tank when installed. The tank is very expensive and the service took most of the day.
You probably should check these rods out for the socket size before sending them out to make sure they aren't all messed up.
I understand that you don't make the parts, so I would recommend contacting Weil-Mclain to tell them they have a manufacturing issue so nobody else needs to deal with this.
Showing 1-10 of 44 reviews
Perfect fit for a Weil McLean water heater
I change this every year, consistent quality, fits great.
M
R.I.
1 months ago
Verified Buyer
Was this review helpful to you?
A bit pricey but can't blame seller
worth it to save a hot water tank.
notwellman
nyc
5 months ago
Verified Buyer
Was this review helpful to you?
I have to buy this again I have no choice or replace tank
Product weighs approx 10 lbs. It is mounted horizontally into side of tank. The socket with an extension must be hammered onto it so that you can keep it straight to line up the treads. Praying not to cross tread it. What a bad design for anode placement!!!
Gene
Poughkeepsie
6 months ago
Verified Buyer
Was this review helpful to you?
Exactly as advertised. Worked well.
This product was exactly as advertised. Shipping was fast. And directions were clear.
Scott
Ct
9 months ago
Verified Buyer
Was this review helpful to you?
Perfect
Exact Weil Mclain replacement part at a good price and shipped fast...Thanks
Cheech
Hamden, CT.
11 months ago
Verified Buyer
Was this review helpful to you?
As advertised
Product arrived on time, well packaged, and in good condition. As described, it included a simple set of instructions for installation.
AL
Big beautiful wy
1 years ago
Verified Buyer
Was this review helpful to you?
Very impressed with Company
Outstanding service and support.
Great Company to deal with.
Would recommend them to all friends and relatives.
Murph
Hewitt, NJ
1 years ago
Verified Buyer
Was this review helpful to you?
I would recommend this product
I replaced the anode rod in my water heater. Perfect fit. Fast delivery.
Stu
Newfoundland PA
1 years ago
Verified Buyer
Was this review helpful to you?
I always prefer ordering from Supply House.
The quick delivery time from Supply House is appreciated.
Monk
Ogdensburg NY
2 years ago
Verified Buyer
Was this review helpful to you?
It fit the Aqua 45
This is my second time I replaced this anode rod. The price is almost double from last time. I did this 6 years ago. The old one was down to nothing. Maybe next time I will do it at 5 years interval. I used the faucet wrench which is 1 9/32 ". It's little bigger than 1 1/4" but it still work.
Fuji
NYC
2 years ago
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: What size socket does this require
Asked by chris tech 9 years ago
Add your answer
Verified Reply- SupplyHouse Staff12.5" long, 1¼" socket is needed
