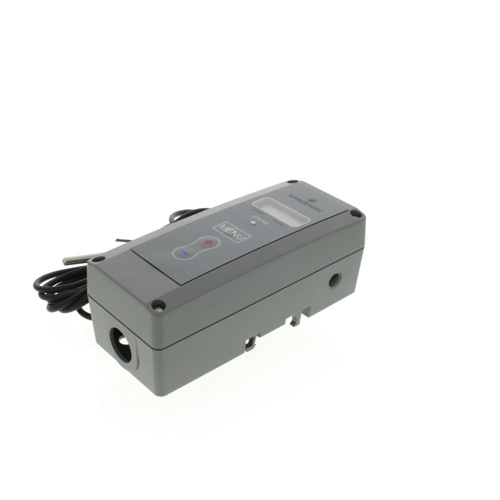

Electronic Temperature Controller (24/120/208/240 Volts AC)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$91.09 each
In Stock
Get 109 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
SPDT
-40°F Min Temp
220°F Max Temp
Description
–
Superior Temperature Control and Accuracy for Both Refrigeration and Heating Applications...and It's Universal, Too!
Specifications
Features
Applications
Specifications
- Setpoint Range:-40° to 220°F (-40° to 104°C)
- Differential Range: 1° to 30°F (1° to 30°C)
- Supply Voltage: 24/120/208/240 VAC, 60Hz
- Sensor: Negative Temperature Coefficient with 7.5-Ft. Leads (Maximum length for remote temperature sensing 400 feet)
- Control Enclosure Ambient Temperatures
- Operating: -29° to 140°F (-34° to 60°C)
- Storage: -40° to 185°F (-40° to 85°C)
- Cover and Case: NEMA 1 high-impact plastic
- Thermoplastic: Non-flammable UL94V0
- Switch Action: SPDT
- Ambient Humidity: 0 to 95% RH, non-condensing
- Dimensions:6-3/4" L x 3" W x 2-9/16" D
Features
- Multiple Input Voltages (24/120/208/240 Volts)
- No Common Wire Required (Electrical load must be greater than 2.5 amps and uninterrupted)
- Electronic Temperature Accuracy
- Alarm Output (with selectable delay)
- Adjustable Anti-Short Cycle Delay
- Setpoint Locking Function
Applications
- Convenience Store
- Freezer Control
- Reach-In Coolers
- Supermarket Display Cases (meat/produce)
- Boiler Control
- Restaurant/Convenience Store
- Walk-In Coolers
- Condenser Fan Cycling
- Pump Control
- Space and Return-Air Temperature
Specs
–
| Application: | Refrigeration |
|---|---|
| Temperature Range: | -40° to 220°F |
| Switch Action: | SPDT |
| Min Temp (F): | -40°F |
| Max Temp (F): | 220°F |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.27 out of 15 reviews
80% would recommend this product
5 star
73%
4 star
7%
3 star
7%
2 star
0%
1 star
13%
Most Liked Positive Review
Excellant for ceiling hot air distribu.
I was told by several people that I could not set a specific temp. to turn on my fan and also a specific temp. at which to cut the fan off,but with this unit you can set the temp. at which you want the fan to start such as 75degrees and then set a differential of 3 degrees and the fan will turn on at 75 and then turn off at 72. So for all practical purposes you have established 2 specific set points for the fan. Works great!
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Not exactly universal.
This control does NOT have dry contacts for load switching when using 120 or 240 volts. The load relay contacts have incoming line voltage on one side. This is fine for most applications, unless you are working with different voltages. In other words, you can't have the control powered with 120v, and use it to switch a 24v circuit. If you need true dry contact switching, get a Johnson Controls A421 instead.
Showing 1-10 of 15 reviews
Works great for walk-in coolers.
I've used this thermostat for walk-in coolers. It can be powered by 24V/120V/240V. I usually run the control circuit on 24V and this makes a big difference. Temp probe wire can be up to 400 ft. Thus, you can place that thermostat outside of the wall-in box or even at the office. With 24V power supply and the control circuit the entire wiring takes just 18/5 thermostat wire.
It's relatively easy to navigate menu and it look sharp. Customers like it.
Ed
Memphis, TN
14 days ago
Was this review helpful to you?
Worked Perfectly What I Purchased It For
I purchased this product to serve as an outdoor air temperature enable/disable control for some heating equipment. Exactly what I needed and expected.
Sales VP
Fort Wayne, IN
3 months ago
Verified Buyer
Was this review helpful to you?
I would buy this product again!
Use this product to replace the motherboard of a sauna.
Billy B
Chicopee, MA
5 months ago
Verified Buyer
Was this review helpful to you?
Does What It says
So far so good,
B
NC
2 years ago
Verified Buyer
Was this review helpful to you?
I would buy this again
water sensor works just as i thought
he man
Bethel pa
3 years ago
Verified Buyer
Was this review helpful to you?
Yes, I would buy product again
We are using this product for our pool heater. It is working very well, we are able to set a range for temperature
Cindy
Englewood Florida
3 years ago
Verified Buyer
Was this review helpful to you?
Not exactly universal.
This control does NOT have dry contacts for load switching when using 120 or 240 volts. The load relay contacts have incoming line voltage on one side. This is fine for most applications, unless you are working with different voltages. In other words, you can't have the control powered with 120v, and use it to switch a 24v circuit. If you need true dry contact switching, get a Johnson Controls A421 instead.
Dallas
Polson, MT
3 years ago
Was this review helpful to you?
Cost effective stands along controller.
Used those as a high-high controller for a wood fired boiler. In the event of a high temp, this drives all zones open to dump temperature. Works great with precise setting. Eliminates the trial and error with the standard 4004 mechanical control.
PReich
Pittsburgh Pa
4 years ago
Verified Buyer
Was this review helpful to you?
It doesn't work
I hooked it up and the air part works but the heat part won't even light it up
Tresa
Edgar Springs Mo.
4 years ago
Verified Buyer
Was this review helpful to you?
i would never buy one of these agan,i dosent work
i bought another hoping that the first one was a fluke .it do sent work ether i took it to a furnace and air conditioning company they couldn't get it to work ether .i sent a email to Johnson the manufacturer they never responded.it is a shame your rating system dosent have negative numbers
dennis
readlyn iowa
4 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
5 Questions5 Questions
Q: Can this thermostat be set to change the temperature setting depending on the time of day?
Asked by Bob 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffUnfortunately, there are no time program functions on this controller.
Was this review helpful to you?
Q: Looking for replacement sensors... Part number?
Asked by Fancy 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe sensor part number is SKU:F136-0114 and can be found at the following link: http://www.supplyhouse.com/White-Rodgers-F136-0114-7-5-ft-Replacement-Remote-Sensor-for-16E09-101
Was this review helpful to you?
Q: Can this be used for a 240v 4' strip heater? The heater is in an elevator pit with limited access. I am looking to maintain 55 degrees and I want remote temp control so that I can adjust as needed.
Asked by Moo 10 years ago
Add your answer
-
Yes it will work. You need to pay attention to the current draw of the heating element(s). You may have to use a high amperage rated relay or contactor connected to the actual heating element(s) and use the temp controller to turn the relay on/off. Look at the user manual for the temp controller for specifications of the load relay contacts ratings that are built into the temp controller.
Was this review helpful to you?
Q: can use this controller to replace my 1609-101 for my walk in box? and how hard is it for DIY person
Asked by mack 11 years ago
Add your answer
-
This should work to replace your old controller. It is pretty simple to install. Just need to read instructions to setup the unit. We've been using on our climatic test cell for several years. Works great.
Was this review helpful to you?
Q: i have this aquastat on a boiler i just bought. its hooked up to cut the stoker fan on when needed. can i use this aquastat to cut on my circulator pump when the thermostat in the house calls for heat??
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffYes, you would be able to use this aquastat to control your circulator pump. You would have to use an additional controller though. You would not be able to link the fan and the pump into this one controlling unit. The wiring diagrams can be viewed on page two of the product data sheet below: http://s3.pexsupply.com/manuals/1257434354611/19051_PROD_FILE.pdf
Was this review helpful to you?
- Steve
the best and cheapest way to accomplish this is to use a pilot relay matched with the output voltage of your thermostat usually 24V. should be under $20.
