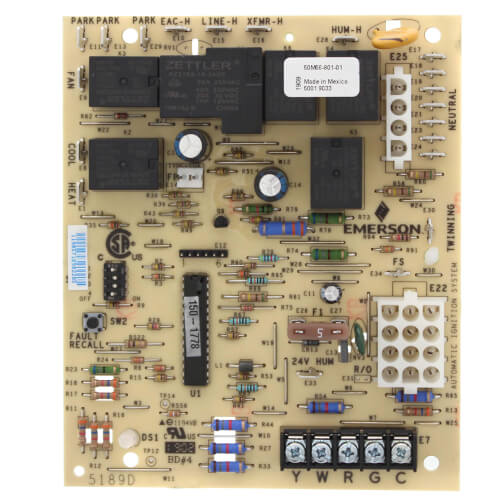

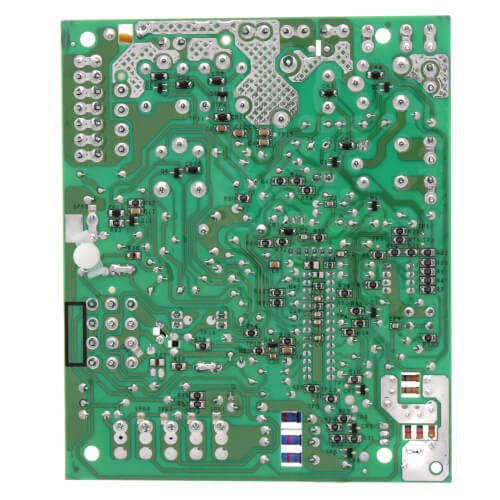

Lennox Single-Stage Furnace Control Kit
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$111.93 each
In Stock
Get 5 Tue, Mar 25
More Available
Order by 6PM, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–
Lennox furnace control kit for single stage applications, 2 or 3-speed PSC blower motor with 120V HSI. Features diagnostic LED and push- button Fault Recall. Includes dipswitches for easy blower delay configuration.
Features:
Features:
- System diagnostics LED with fault recall
- Fused to protect low voltage system transformers
- 3 fan speeds
- Adapter harness for application flexibility
- Operating Temperature: -40 to 175°F
- Humidity Range: 5% to 93% RH (non-condensing)
- Mounting: Snap in standoffs
- Electrical Ratings @ 77°F (25°C): Input Voltage - 25 VAC 50 / 60 Hz, Maximum Input Current @ 25 VAC - 0.45 amp
- Valve Relay: 1.5 amp @ 25 VAC 50 / 60 Hz 0.6 pf
- Ignitor Relay: 1.2 amp @ 120 VAC 50 / 60 Hz
- Inducer Relay: 2.8 amp @ 120 VAC
- Circulator Relay: 10.0 FLA-25.0 LRA @ 120 VAC
- Humidifier Load: 1.0 amp @ 24 VAC or 120 VAC
- Electronic Air Cleaner: 1.0 amp @ 120 VAC
- Minimum current to insure flame detection: 0.25 uA DC
- Maximum current for non-detection: 0.10 uA DC
- Maximum allowable leakage resistance: 100 M ohms
- Timing Spec (@ 60 Hz) maximum
- Flame establishing time: 0.8 sec
- Flame failure response time: 2.0 seconds
Specs
–
| OEM: | Lennox |
|---|
