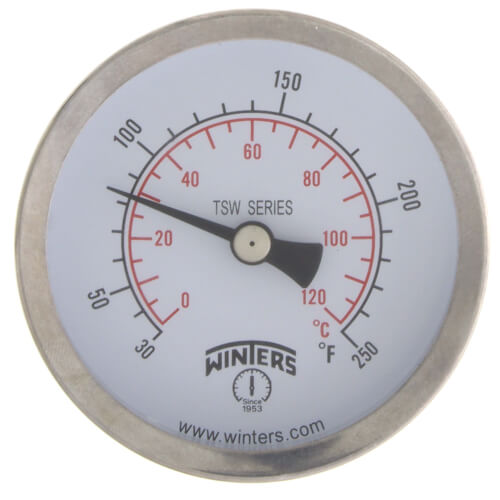

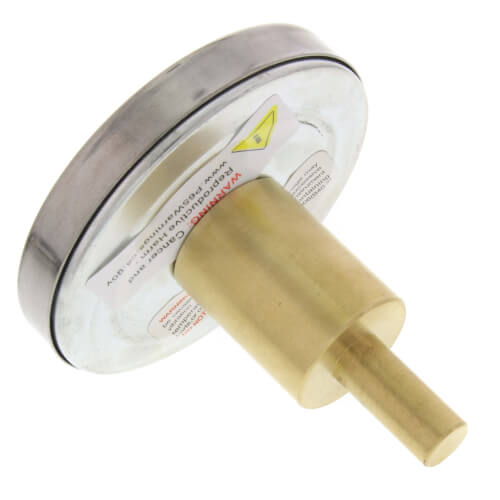

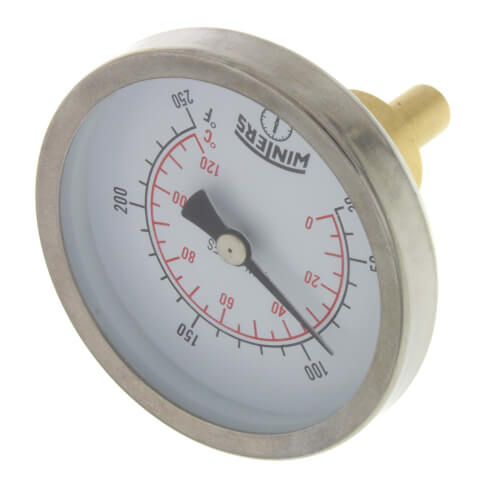

2-1/2" TSW Dial Type Hot Water Thermometer w/ 3/4" Sweatwell, 30°F -250°F & 0°C -120°C
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$26.62 each
In Stock
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/4" Connection
0°C Min Temp
120°C Max Temp
30°F Min Temp
250°F Max Temp
5 Year Warranty
Description
–
Features:
Applications:
Specifications:
Note: Do not use this item for any installation or repair of potable water applications.
This product does not comply with the "Safe Drinking Water Act," which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking).
This item is for non-potable (non-human consumption) water applications only.
- An economical and accurate way to measure air or water temperatures
- Separable brass or lead free brass thermowell
- Bi-metallic element (dial type only)
- Dual scale (°F & °C)
- Dial type or vertical scale type
- Easy to install
- 3/4" Sweatwell connection
- 5 year warranty
Applications:
- Hot water lines, boilers and hydronic heating
Specifications:
- Dial - 2.5" (63mm) aluminum dial, painted white with black and red markings
- Case - Aluminum
- Lens - Glass
- Ring - Steel, chrome plated
- Thermowell - TSW: Brass (HPB59-1), 1/2" NPT standard, separable TSW-LF: Lead free brass, 1/2" NPT standard, separable
- Stem - Brass
- Sensing Element - Bi-metallic element
- Pointer - Aluminum, painted black
- Recalibrator - Standard
- Accuracy - ±1%
Note: Do not use this item for any installation or repair of potable water applications.
This product does not comply with the "Safe Drinking Water Act," which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking).
This item is for non-potable (non-human consumption) water applications only.
Specs
–
| Product Type: | Thermometer |
|---|---|
| Dial Size: | 2-1/2" |
| Connection Size: | 3/4" |
| Min Temp (C): | 0°C |
| Max Temp (C): | 120°C |
| Min Temp (F): | 30°F |
| Max Temp (F): | 250°F |
| Type: | Dry |
| Sensing Element: | Bi-Metallic Coil |
| Accuracy: | ±1% |
| Warranty: | 5 Year |
| Mount: | Back |
