Quik Trak Radiant Heat Package - 250 sq ft
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
Product Highlights
Description

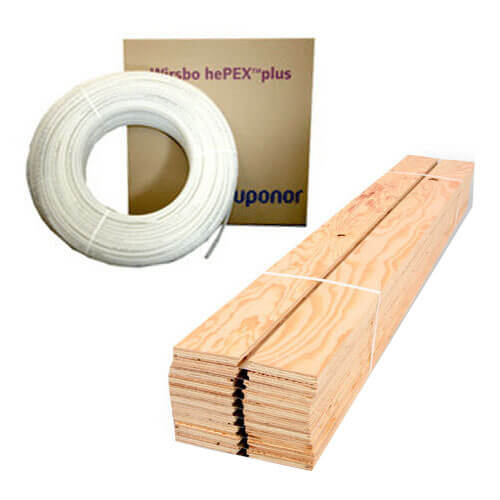

Quik Trak
- (100) A5060701: Quik Trak 7" x 48" Trak
- (11) A5060702: Quik Trak 7" x 48" Return Trak
- (4) E6050010: Quik Trak Sealant, 10.3 fluid oz. (300 ml)
- (2) A1180313: 5/16" hePEX plus - (250 ft. coil)
- (1) A2700202: TruFlow Jr. Manifold Assembly with Isolation Valves & Balancing Valves, 2 Loop S&R
- (4) A4020313: 5/16" QS-style Fitting Assembly - R20 thread
Accessories- (4) A5110375: 3/8" Metal Bend Support
- (1) E6081128: Tube Cutter, (plastic) up to 1" PEX
- (1) E6122000: Pressure Test Kit
Specs
| Application: | Heating |
|---|---|
| Type: | Radiant Heat Package |
| Coverage (Sq Ft.): | 250 |
| Fitting System Compatibility: | PEX Compression |
| Tubing Compatibility: | PEX |
| PEX Size: | 5/16" |
| Tubing Type: | Oxygen Barrier |
| Length (Feet): | 500' |
| Number of Outlets: | 2 |
Questions?
Product Reviews
The Good, the Bad and the Ugly but it works
I would not use this as they designed it...
Product Q&A
7 QuestionsQ: Screws are not included? What type of screw do you recommend?
Asked by georgeharrison 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe following screws are designed specifically for use with Quik Trak: http://www.pexsupply.com/Wirsbo-Uponor-E6051250-Quik-Trak-Screws-2500-box-2157000-p . Standard screws can also be used.
Q: I have a room that is 15'x 18', heated by 30 feet of copper fin tube. Will the 250' package be enough to replace that?
Asked by georgeharrison 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe room is 270 square feet. The package covers 250 square feet worth of floor space.
Q: What underlayment is necessary over Quik Trak if you are laying carpet?
Asked by georgeharrison 15 years ago
Add your answer
Verified Reply- PexSupply StaffYou can either place the carpet directly on top of the Quik Trak, or put down a layer of plywood.
Q: I have a un-level floor and want to install quik trak with tile.. can I pour a self-leveler over quik trak than install tile as normal?.. and if I can't pour it over it why?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYou can use the self-leveler, but you would need to place a cement board between the Quik Trak and the self-leveler. It is not recommended to put cement directly onto the Quik Trak because the moisture could harm the wood.
Q: How thick does the durock have to be that is laid over the quik trak system so I can lay tile? Is there such a thing as too thick?
Asked by Bob 16 years ago
Add your answer
Verified Reply- PexSupply StaffThe manufacturer recommends that you use either 3/8" or 1/2" of durock.
Q: can laminate flooring be placed directley on top.
Asked by kevin 16 years ago
Add your answer
Verified Reply- PexSupply StaffYes, you can place laminate flooring directly on top of the Quik Trak unless glue is being used to put the laminate flooring down. If glue is being used a piece of plywood has to go in between the trak and the flooring.
Q: I'd like to buy this product but need to calculate the heat loss in my room before doing so. How do I calculate the heat loss in my room??
Asked by Scott 16 years ago
Add your answer
Verified Reply- PexSupply StaffYou can contact a certified installer to perform a heat loss calculation on your room. Alternatively, you can do it yourself using a guide such as the H-22 heat loss guide by the Hydronics Institute Division of GAMA.
