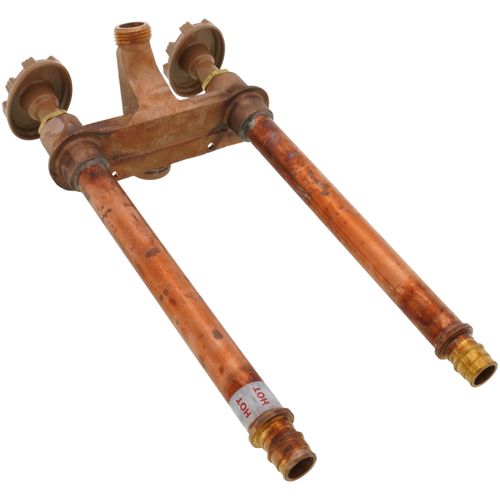

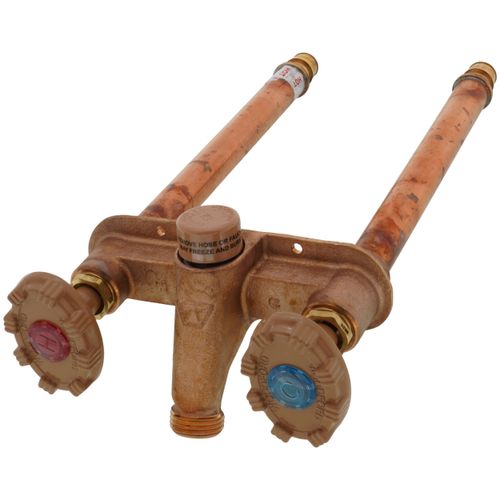

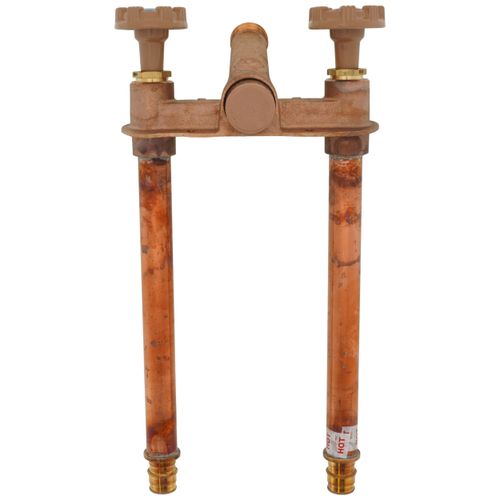

Model 22 8", 3/4 Expansion PEX Inlet Anti-Siphon Wall Faucet w/ Metal Handle

Note: This item offers anti-siphon protection

Overall Length of this product is 9-1/4". Overall Length is determined by wall thickness plus the inlet length. Please check Product Overview file for details.

The Woodford 22W3-8-MH Horizontal Freezeless Hot & Cold Wall Faucet lets you have the water you need for your outside tasks throughout the year even in freezing conditions. It has a separate hot and cold inlet tube that allows manual temperature control without the hassles of cross contamination issues. This hot and cold exterior faucet from Woodford is perfect for washing your muddy car, rinsing off your tools or washing your dog with nice warm water. The integral back flow protection device eliminates the need of an add-on vacuum breaker and protects your community from contaminated water. The Woodford 22W3-8-MH Wall Faucet has a rough-in mounting depth of 8” (please refer to the specification sheet for more information). The “W3” designation in the part number signifies a 3/4" Wirsbo inlet tube fitting on the end of both inlet tubes. This freezeless faucet from Woodford has a patented resetting pressure relief valve that stops the faucet casing tube from bursting in cold conditions regardless of outside temperature and even if a hose is inadvertently left attached. This Woodford 22W3-8-MH comes with a metal handle. All Woodford 22 products carry a warranty for 5 years against defects in workmanship and materials. Woodford is a trusted leader in the industry and its products are made in the USA.

Specifications:

• Manufactured under one or more of the following patents: 3,208,715; 3,278,201; 5,590,679; 5,632,303; 6,142,172; 6,532,986 and patents pending
• ASSE 1019 Listed
• CSA, UPC, cUPC Approved
• Not intended for continuous use

Features:

• Max pressure - 125 p.s.i.
• Max temperature - 120 F
• EPDM packing to prevent leaking
• Oval, powder-coated, die cast aluminum handle
• Stainless steel seat - eliminates wire draw
• Standard O size seat washer
• No-lead solder
• Horizontal Freezeless Wall Faucet
• Separated hot and cold inlet tube
• 3/4 male hose thread
• Made in USA
• The W3 designation in the part number signifies a 3/4" Wirsbo inlet tube fitting on the end of both inlet tubes.
• All Woodford Model 22 products carry a warranty for 5 years against defects in workmanship and materials.
• Manufactured under one or more of the following patents: 3,208,715; 3,278,201; 5,590,679; 5,632,303; 6,142,172; 6,532,986 and patents pending, ASSE 1019 Listed, CSA, UPC, cUPC Approved.
