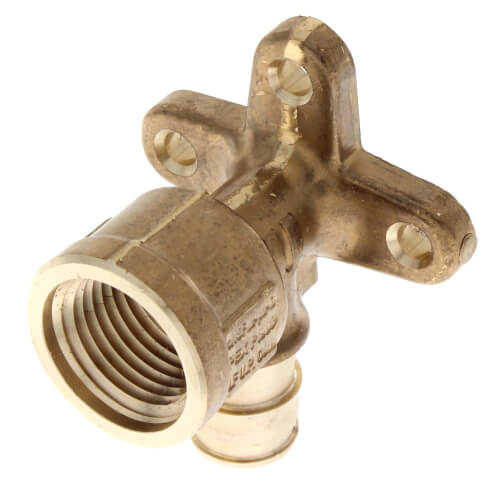

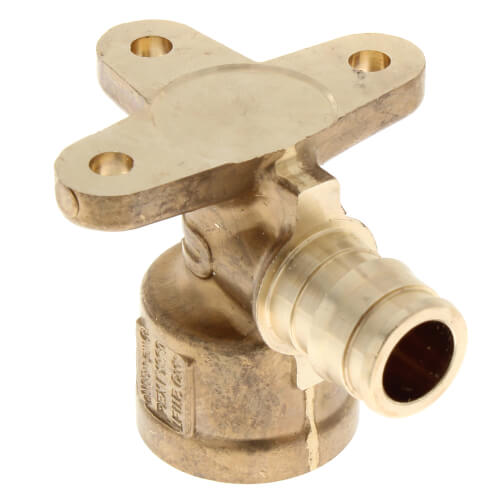

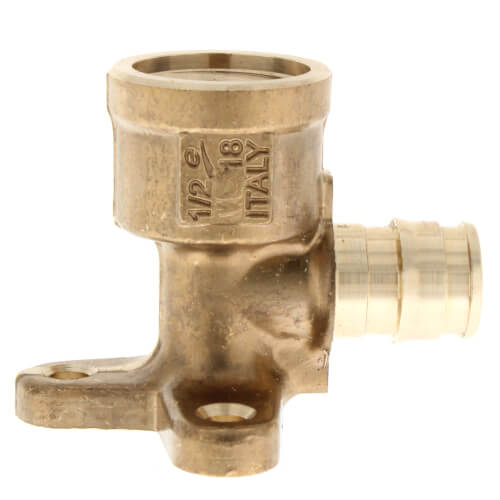

1/2" ProPEX x 1/2" FIP Drop Ear Elbow (Lead Free Brass)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (2)
Product Highlights
Description
Uponor's lead-free brass transition fittings, valves and wall boxes carry the NSF us-pw-G marking for lead-free compliance to meet state lead-free legislation, and exceed the U.S. Safe Drinking Water Act. Now you can combine lead-free brass fittings with Uponor's PEX tubing, EP offering and ProPEX Out-of-the-Wall Support System for a complete lead-free solution from the inlet to the faucet. The new lead-free offerings feature Uponor's unique ProPEX fitting system for strong, durable connections without the need for torches, glues, solvents or gauges.
Specs
| Application: | Heating Plumbing |
|---|---|
| Size: | 1/2" |
| Thread Size: | 1/2" |
| Thread Type: | Female |
| Material: | Brass |
| Fitting System Compatibility: | Expansion PEX |
| Standards Met: | ASTM F877 NSF ASTM F1960 |
| Warranty: | 25 Year (Limited) |
| Max Temp (F): | 250°F |
| Max Pressure (PSI): | 250 |
| Tubing Compatibility: | PEX |
| Lead Free: | Yes |
Questions?
You May Also Need
Product Reviews
Most Liked Positive Review
Finally, they have made it
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Make sure you understand what you are ordering
All dinged up.
Make sure you understand what you are ordering
Excellent customer service
absolutely buy again
I'll buy more of this.
A well made item.
Fast shipping
Excellent product
Fast
yes
Product Q&A
5 QuestionsQ: Would this be acceptable for a tub spout with adequate blocking? I was going to use copper piping from the valve to the spout but this looks every bit as sturdy if I use strong blocking.
Asked by Louis 11 years ago
Add your answer
Yes, you can use this for a tub spout. The thing to be aware of, however, is that the piping from the mixing valve to the tub spout will be changing direction from vertical to horizontal at 90 degrees. This creates more back pressure. I did this exact same thing, and now there is a little too much pressure, and when I turn on the tub spout, a little water comes out of the shower head above due to the pressure. Not a lot, but some does. I believe they recommend using one of their radius elbows to bend the PEX gradually before getting to the tub spout to prevent this pressure from occurring.
Yes that would be perfectly acceptable attached to blocking
Yes, these are meant for tub spouts, shower heads, spigots, etc.
Yes but use 1/2 inch Sent from my iPad
Yes you can, however it's more expensive by the time you include a brass nipple. From my Android phone on T-Mobile. The first nationwide 4G network.
I think my use was for a toilet supply, so I just attached a nipple and valve. Anchored to a 2X4 attached horizontally to the studs. It's rock solid. ProPEX is great, just remember that you need an expander.
It would work well, these are pretty strong if you use adequate sized screws.
Q: can this be used in shower head coming out of the ceiling thanks
Asked by apollonios 14 years ago
Add your answer
Verified Reply- PexSupply StaffYes, as long as you are feeding the shower with 1/2" PEX-A tubing and you're using ProPEX expansion fittings.
I don't see why not. I'm using it for a shower head coming out of the wall. It has 3 "ears" do those should be secured with deep enough screws to handle the weight of your shower head.
Yes, it will work perfectly for both wall and ceiling mounted shower heads.
Yes
I would suppose you could. I have used for same application out of the wall
Sure. It should work fine.
Q: Can I use this 3/4 Drop ear for a Rain shower if a transition the nipple to 1/2 inch?
Asked by Chris 14 years ago
Add your answer
Yes you could with a reducer to 1/2", but may run into issues with how far it sticks out the wall. Another thought is to use a reducer as the pipe goes up and then use a 1/2" drop ear.
It depends on the requirement ofthe Rain Shower. You could also get the LF4235050 - ProPEXLF Drop Ear Brass Elbow, 1/2" PEX x 1/2" FIP and not worryabout having to transition. Typically shower heads only need ½” tubing,especially since everything is low-flow.
I used male 3/4" with female 1/2" brass to step down to 1/2" shower head feed. Make sure fitting is also tapered on the 3/4" nipple end so no leaks. Good luck! Sent from my iPhone
Q: Will the ProPex LF Brass Male Threaded Adapter SKU: LF4527575 thread into this elbow?
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffYes, that adapter can thread into the LF4237575 drop ear elbow.
If it is the same size, then it should fit the adapter.
Q: Uponor Pro Pex fittings - What is the country of origin? Thanks...
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffMost ProPEX fittings are made in the United States. Drop ear elbows (including part A3041511) are made in Italy.
