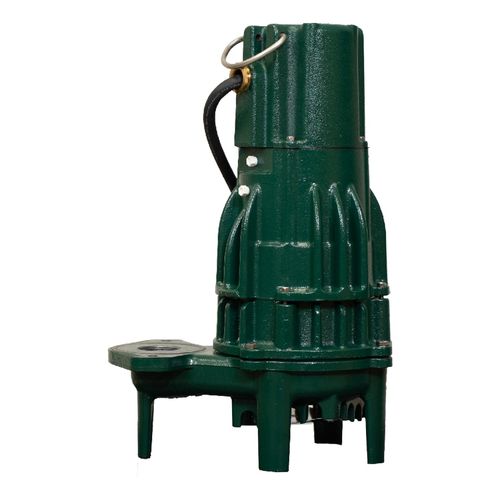

Flow-Mate N161 Single Seal, Manual Submersible Pump w/ 20' Cord (15.5 Amps, 0.5 HP)

Zoeller's High Head "Flow Mate" Submersible Pump is designed for use in residential or light commercial dewatering applications. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. Each pump is 100% pressure-tested submerged and run to ensure quality and reliability for years of trouble-free performance. Automatic units are not recommended for use in effluent systems.

Features:

• Non-clogging bronze vortex impeller design
• Durable cast construction. Cast iron switch case, base, motor and pump housing
• Castings - Cast iron class 25-30 (25,000# tensile strength). Impeller, bronze class 85-5-5-5
• Corrosion-resistant powder coated epoxy finish
• 20 ft. UL Listed 3-wire neoprene cord and plug. Longer cords available in lengths of 25-35-50 feet.
• Motor - 60 Hz, 3450 RPM, oil-filled, hermetically sealed, automatic reset thermal overload protection (1 Ph only).
• Upper & lower ball bearings running in bath of oil.
• Carbon and ceramic shaft seal
• Maximum temperature for effluent or dewatering, 130°F - 54°C (ED 140°F - 60°C).
• Major width 12-3/4" Height 19-5/16" (Single seal pumps)
• No screens to clog.
• Square Ring & Gasket - Neoprene
• Stainless steel screws, bolts, float rod, handle guard, arm and seal assembly
• Passes 3/4" spherical solids
• 1-1/2" NPT discharge with 2" or 3" flange available
• Automatic units available with float operated, submersible (NEMA 6) 2-pole mechanical switch. On point 14-3/4" - Off point 5"
• Available in single or double seal designs.
• 100% of units are computerized tested
