Description

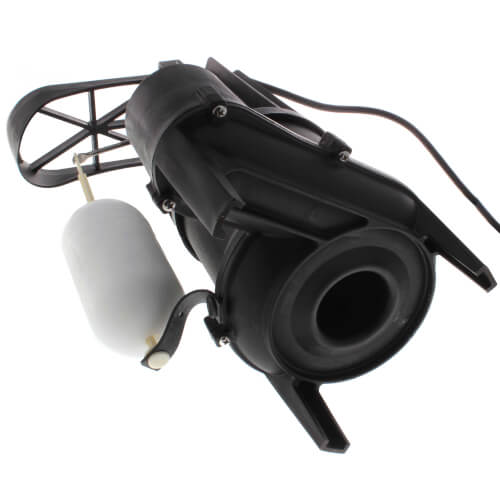

Submersible pump for sewage/effluent or dewatering, passes 2" solids, 2" NPT discharge

Features
  • Noncorrosive engineered plastic motor housing, pump housing, base and impeller
  • Oil-free
  • No sheet metal parts to rust or corrode
  • All stainless steel screws, switch arm and lower motor housing
  • 2 pole float operated mechanical switch
  • Solid polypropylene float
  • Maximum temperature for dewatering 110°F (43°C)
  • Passes 2" spherical solids
  • 2" NPT discharge
  • On point: 13"
  • Off point: 5-3/4"
  • Major width: 9-5/16"
  • Major height: 15-7/8"
  • All models completely submersible and hermetically sealed
  • Watertight and dust tight
  • Recommended for 2" pipe only

NOTE: The sizing of effluent systems normally requires variable level float(s) controls and properly sized basins to achieve required pumping cycles or dosing timers with non-automatic pumps.
Read more
Specs
Horse Power:
4/10
Voltage:
115v
Frequency:
60 Hz
Phase:
1
Amperage:
5.5
RPM:
3400
Flow at 5 FT Head:
82 GPM
Flow at 10 FT Head:
53 GPM
Flow at 15 FT Head:
32 GPM
Head Range (ft.):
0-19.5
Cord Type:
3-Prong Power Cord
Cord Length:
15'
Solids Size:
2"
Shutoff Head (ft.):
19.5'
×
