Description
Please Note: Float Switch 10-0055 is not included with this unit (must be purchased separately)

Submersible sewage/*effluent or dewatering pump

Please Note: The 10-0055 Variable Level Float Switch is required to convert to automatic operation (sold separately).

Features:
  • Float operated, submersible (NEMA 6) 2-pole mechanical switch
  • Durable cast construction, ASTM Class 25 cast iron, switch case and pump housing
  • Cast iron base on models 267 and 268
  • Engineered plastic base on model 266
  • Non-Clogging Vortex Impeller Design. Engineered plastic impeller with metal inserts on models 266, 267 & 268 (1 PH).
  • Not affected by materials normally found in drainage and sewage pumps
  • Stainless steel screws, bolts, handle, guard and arm and seal assembly
  • Neoprene square ring & gasket
  • Oil-filled, hermetically sealed motor
  • Oil lubricated bearings
  • Carbon and ceramic shaft seal
  • Passes 2" spherical solids
  • 2" female and 3" NPT male discharge
  • On point: 12" (automatic units); Off point: 4" (automatic units)
  • Corrosion resistant powder coated epoxy finish
  • Completely submersible
  • Watertight and dust tight
  • Automatic reset thermal overload protection (1 Phase only)
  • Reserve powered design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.

*May be used in those states where codes do not restrict solids size in effluent systems.

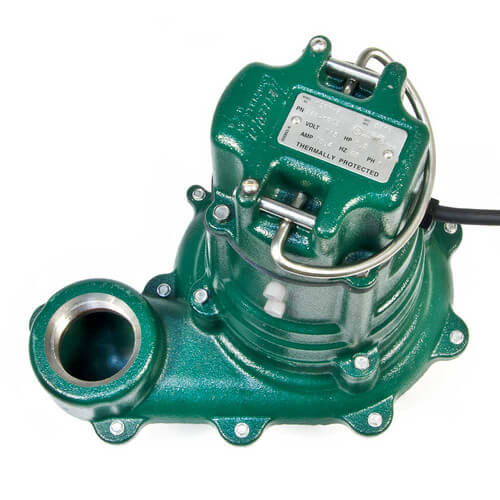

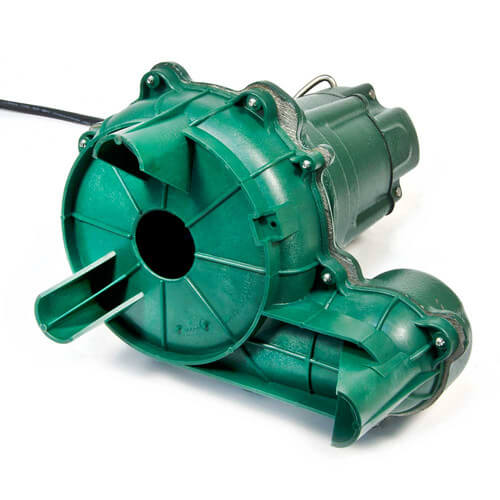

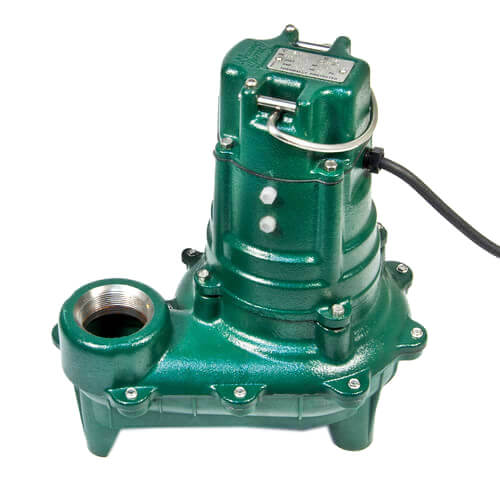

NOTE: Image is representative. Actual product may vary from image depicted.
Read more
Manuals (4)
Specs
Type:
Manual
Application:
Effluent
Sewage Waste Transfer
Sewage
Material:
Cast Iron
Horse Power:
1/2
Voltage:
115v
Amperage:
10.4
Phase:
1
RPM:
1725
Cord Length:
15'
Cord Type:
UL Listed 3-Wire Neoprene Cord & Plug
Height:
14-1/32"
Flow at 5 FT Head:
128 GPM
Flow at 10 FT Head:
89 GPM
Flow at 15 FT Head:
50 GPM
Approvals:
UL/CSA
Weight (lbs):
41 lbs.
Discharge:
2"
Solids Size:
2"
Shutoff Head (ft.):
21.5'
×
