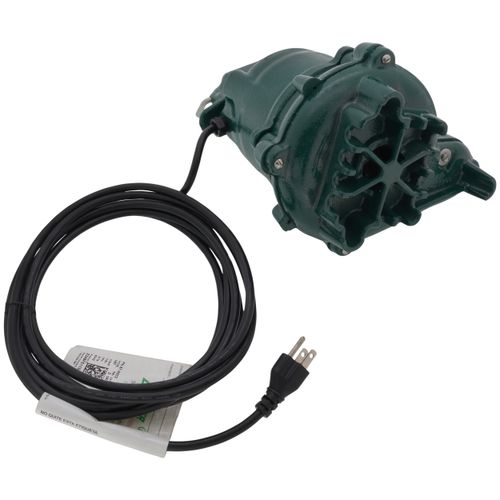

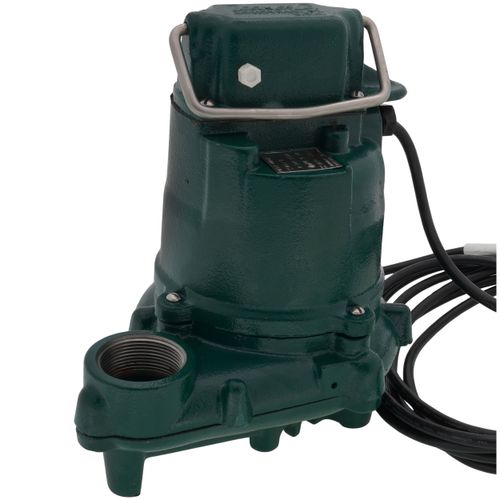

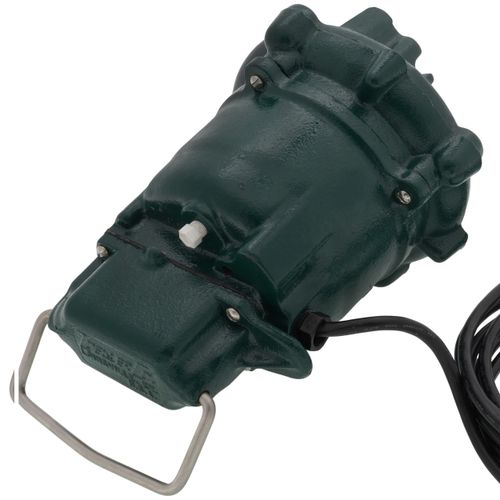

Model N57 Mighty-Mate Non-Automatic Cast Iron Effluent Pump - 115 V, 0.3 HP
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$297.00 each
In Stock
Get 13 Wed, Jun 10
Order by today, receive Wednesday
MANUALS (4)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
15'
Cast Iron
1/3 HP
115V
43 GPM
9.7 Amps
Description
–
NOTE: Image depicts Model 53, not Model 57. Actual product may vary from image displayed. Image #2 depicts vortex impeller.
Submersible pump for dewatering (sump) or effluent (septic tank systems)
Features:
Model 57 Specific Features:
Submersible pump for dewatering (sump) or effluent (septic tank systems)
Features:
- Float operated, submersible (NEMA 6) 2 pole mechanical switch & variable level long cycle systems available
- Corrosion resistant powder coated epoxy finish
- No sheet metal parts to rust or corrode
- Stainless steel screws, switch arm, guard and handle
- No screens to clog
- Watertight neoprene square ring between motor and pump housing
- Solid buoyant polypropylene float
- Oil-filled, hermetically sealed, automatic reset thermal overload protected motor
- Upper and lower sleeve bearings running in bath of oil
- Entire unit pressure tested after assembly
- Carbon and ceramic shaft seal
- Maximum temperature for effluent or dewatering 130°F (54°C)
- Passes 1/2" spherical solids
- 1-1/2" NPT discharge
- On point: 7-1/4", Off point: 3"
- Watertight and dust tight
- Permanently oiled bearings
- Impeller Type: Non-clogging vortex impeller
- Reserve Powered Design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.
Model 57 Specific Features:
- All cast iron construction
- Stainless steel guard and handle
- Lower and upper bearings, oil fed, cast iron
- Cast iron impeller
Specs
–
| Shutoff Head (ft.): | 19.25' |
|---|---|
| Cord Length: | 15' |
| Type: | Manual |
| Application: | Plumbing |
| Material: | Cast Iron |
| Horse Power: | 1/3 |
| Voltage: | 115V |
| Flow at 5 FT Head: | 43 GPM |
| Amperage: | 9.7 |
| Phase: | 1 |
| Hertz: | 60 |
| RPM: | 1550 |
| Cord Type: | UL Listed, 3-Wire Cord & Plug |
| Height (Inches): | 10.0625" |
| Width (Inches): | 10-3/32" |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
3 Replacement Parts
Thru Wall Term Seal
SKU: 003402
ZoellerRubber Closet Seal
SKU: 017347
Zoeller
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.5 out of 8 reviews
88% would recommend this product
5 star
75%
4 star
13%
3 star
0%
2 star
13%
1 star
0%
Showing 1-8 of 8 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
packaging was not adequate
The pump weighs about 30 lb. During shipping, it got banged around. In fact, there were oil stains on the cardboard box from leakage. The replacement pump only had cushioning on two sides (and none beneath the pump box). With the pump laying on its side during shipping and no cushioning underneath, the box for the replacement may have been dropped. The manufacturers box was split open in 2 areas.
The second replacement was packaged much better with sufficient cushioning. To their credit, Supplyhouse replaced the two pumps that were damaged in transit and did a good job packaging the third so that it arrived safely. Thanks.
West sump pump
San Francisco
2 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again.
I installed it in my own house.
Works great.
Sal
Woburn, MA
6 years ago
Verified Buyer
Was this review helpful to you?
Great product
Works as it should, quiet and effective
Ed
Westmoreland, NY
6 years ago
Verified Buyer
Was this review helpful to you?
I only got two years out of it!
I live on a lake and my sump pumps run continuously up to 50% of the time. I only got two years use out of it under these circumstances. Probably less because i built a triple sump pump system with a primary a secondary and a battery backup. I occasionally would switch which pump was primary or secondary so this pump only lasted perhaps 15 months running half the time.
Tony
Henryville pa
8 years ago
Verified Buyer
Was this review helpful to you?
Zoeller N57 Non-Automatic Pump comments
Have used Zoeller pumps for the house sump and ejector applications. I've had this particular model in my home for a number of years and this purchase was for my daughters house. I've migrated to non-automatic pumps in combination with electronic water level sensors. I've found this combination more reliable than pumps with traditional float assemblies, as typically the float is always the issue.
Joliet_Jake
Chicago SW Suburbs
9 years ago
Verified Buyer
Was this review helpful to you?
would definately buy another
used in dousing tank for sand mound-good specs and great price-doesn't weigh a ton either
tom s
central pa
10 years ago
Verified Buyer
Was this review helpful to you?
Great pump for the price.
Very quiet and great build quality.
Happily satisfied.
Art
Chicago
10 years ago
Was this review helpful to you?
The pump built like a tank
The water table rises into my basement when it rains hard and long. This taxes a sump pump most severely. I teamed the non automatic pump with a Levelguard switch because it seems the switch is the most common point of failure. Water table has been down since I installed the pump but I am very hopeful that this combination will work long and reliability.
JB
Lancaster PA
15 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: No clog pump? Pumping it out to main tank at campground? Maybe 100 gallon tank. Will this pump work ok with my small septic tank under rv, with min debris, sewage, light leaves?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis pump will not work as a sewage pump. It is an effluent and dewatering pump only.
Was this review helpful to you?
