$311.10 each
In Stock
Get 2 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (1)
This item replaces: Q5020B1001
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–

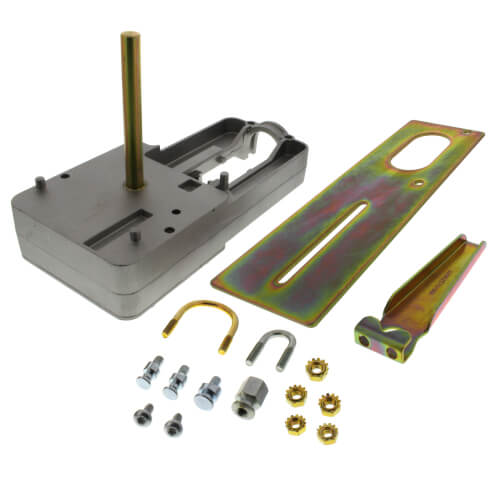

The Q5020 Globe Valve Linkages connect a Honeywell direct coupled actuator (DCA) to a steam or water globe valve. The Q5020 Linkages are compatible with two-way and three-way globe valves up to 3 inch (DN80).
Features
Specifications
Features
- Used with two-way and three-way globe valves in modulating or two-position service.
- Used with 25, 50, and 142 lb-in. spring return and 35, 70, 150, and 300 lb-in. non-spring return DCA.
- Quick and simple installation with no disassembly required.
- Heavy-duty Steel rack and pinion construction and Aluminum Die-cast housing.
- Maintenance-free construction.
- Precision roller-bearing rack construction prevents premature valve packing wear and leakage.
- Flexible actuator mounting orientation.
- Adjustable manual override lever and valve position indicator.
- Can be mounted on specific non-Honeywell valves using a 32004629 Bonnet Adapter Kit.
Specifications
- Mounting: Linkage mounts directly to the valve bonnet; actuator mounts on linkage
- Used with Actuator: Direct Coupled Actuator
- Used with:V5011N, V5013N, V5011F, V5011G
Specs
–
| Product Type: | Valve Linkage |
|---|---|
| Linkage Type: | Valve |
| Bonnet Size: | 1-3/8" |
| Stroke: | 3/4" |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Q&A
1 Question1 Question
Q: do you need this linkage ( q5020a1003) to connect a v5013n three way valve to a ml6420a3049 actuator
Asked by mike 8 years ago
Add your answer
Verified Reply- Supplyhouse StaffYes you would.
