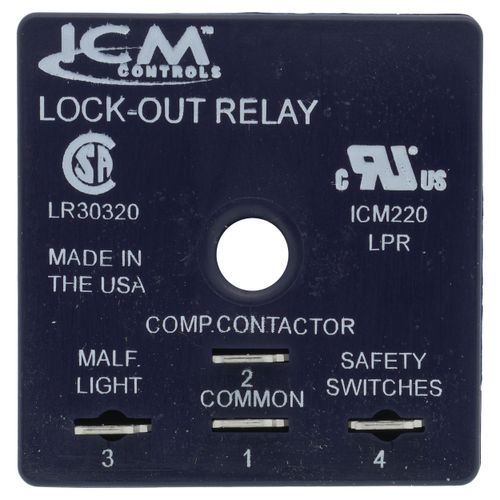

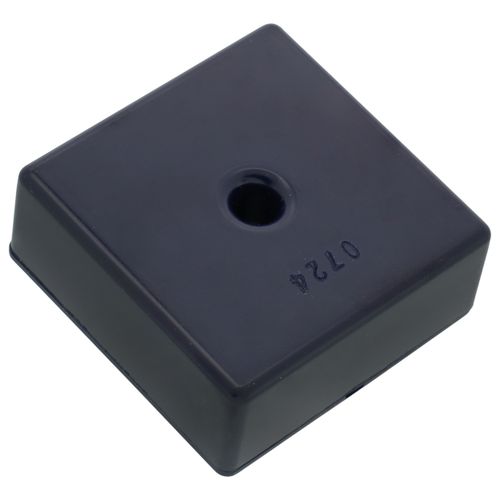

ICM220 Lockout Protection Module, 18-30 VAC
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
ICM220 has been discontinued
Discontinued April 4, 2025
This product was discontinued by the manufacturer.
MANUALS (3)
Direct Replacement:
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
18/30 VAC
2" x 2"
Description
–
Mode of Operation - Upon application of power with the safety switches closed, the load will energize. If any of the safety switches open for longer than
600 ms, the fault light will come on and the load will stay de-energized regardless of the state of the safety switches. Power must then be removed for 100 ms and safety switches must be closed in order to re-energize the load, upon which the fault light will be off.
ICM offers low cost lockout protection modules that monitor various switch inputs to help protect your compressor.
Features
ICM offers low cost lockout protection modules that monitor various switch inputs to help protect your compressor.
Features
- UL 873 recognition as compressor controller
- Low cost lockout relay
- Helps eliminate nuisance lockouts typical of Series 84 and 93 impedance relays
- Ideal for use with safety/interlock switches
- Replaces impedance relays Series 84 and 93
Specs
–
| Product Type: | Lockout Protection Module |
|---|---|
| Voltage: | 18/30 VAC |
| Frequency: | 50-60 Hz |
| Power Consumption: | 2 Watts Max @ Lockout |
| Relays: | 1 form C |
| Contacts: | 2 amps @ 30 VAC resistive |
| Size: | 2" x 2" |
