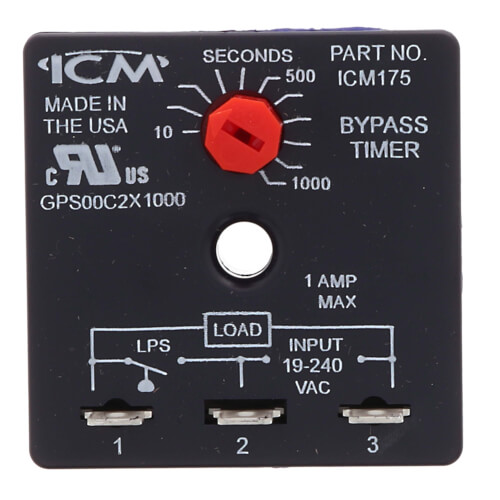

ICM175 Bypass Timer (10-1,000 Second Knob Adjust. Delay)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$19.77 each
In Stock
Get 58 Tue, Jun 16
Order by today, receive Tuesday
This item replaces: ICM175, P284-2397
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1 Amps
18/240 VAC
2" x 2"
Description
–
Bypass Timers ("ON delay interval timer," "Normally closed delay on make") are designed to bypass a control or device during start-up. Typically used to bypass a low pressure switch during compressor heat pump start-up or to bypass an oil pressure switch upon start-up. Helps to eliminate nuisance lockouts.
Features
Mode of Operation - With power applied to the input, the load energizes immediately and remains energized for the length of the time delay, regardless of the state of the switch being bypassed. At the end of the time delay, the condition of the load is determined by the state of the switch.
Features
- Designed to bypass a low pressure switch or other device during start-up
- Ideal for low ambient start-ups
- Key component for "winter start" kits
- Helps to reduce nuisance lockouts
- Universal AC voltage operation
- 10-1,000 second knob adjustable time delay
- Epoxy-encapsulated circuitry
Mode of Operation - With power applied to the input, the load energizes immediately and remains energized for the length of the time delay, regardless of the state of the switch being bypassed. At the end of the time delay, the condition of the load is determined by the state of the switch.
Specs
–
| Amperage: | 1 |
|---|---|
| Time Delay: | 10-1000 Sec Knob Adjustable |
| Product Type: | Bypass |
| Voltage: | 18/240 VAC |
| Amp Inrush: | 10 |
| Holding Current: | 40 mA (minimum) |
| Frequency: | 50-60 Hz |
| Size: | 2" x 2" |
| Replaces: | TD32 32395 |
| OEM: | Supco MARS |
