$404.77 each
In Stock
Get 5 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (2)
This item replaces: SV9501M8103
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
1/2"
1/2"
24V
Intermittent Hot Surface Pilot
Straight-Through
Description
–
Product Overview:
Product Features:
Product Specifications:

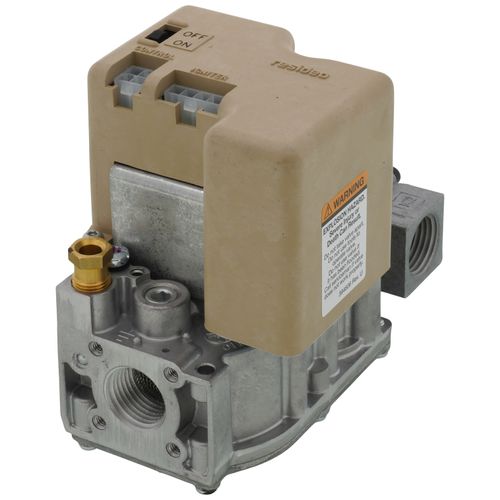

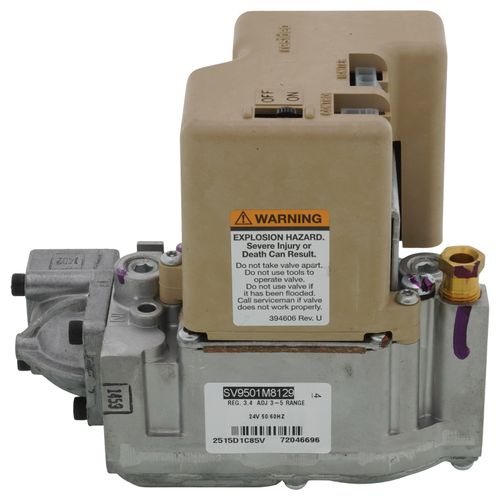

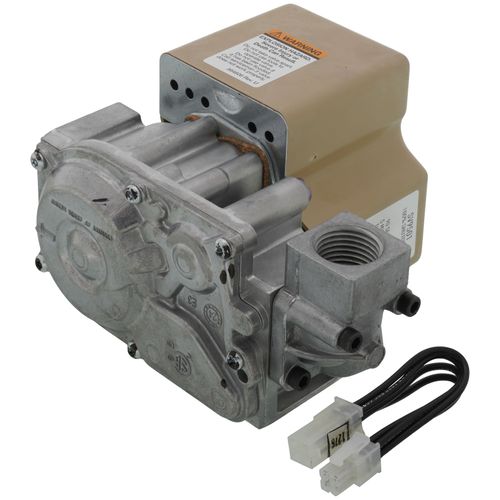

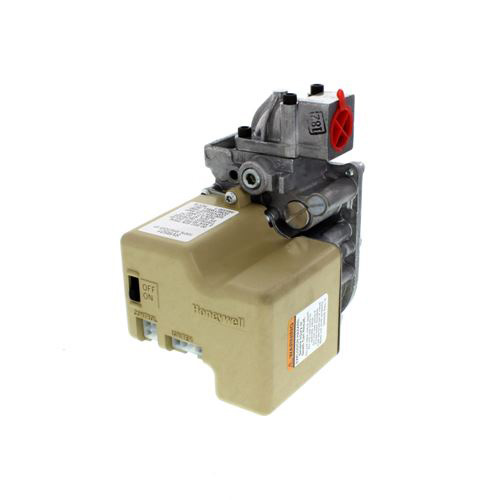

- The SmartValve System Controls provide easy field replacement of a wide range of SV9500, SV9501, SV9502 and SV9602 SmartValve System models. Gas appliance manufacturers use these models in many types of gas fired heating appliances including central furnaces, residential boilers, rooftop furnaces, commercial cooking appliances, and unit heaters. These controls provide intermittent pilot gas ignition sequencing, pilot flame sensing, and both pilot and main gas control functions in a single control. They are directly compatible with the Q3450 or Q3480 Intermittent Pilot burners used with the original controls on the appliance.
Product Features:
- Suitable for a wide range of gas-fired appliances including residential furnaces, roof-top furnaces, residential boilers, unit heaters, infrared heaters, space heaters and commercial cooking units
- Replaces SV9500, SV9501 and SV9502 controls as noted below
- Ignition sequence includes timed trial for ignition
Product Specifications:
- Description: 1/2 in. NPT x 1/2 in. NPT Intermittent Hot Surface Pilot Ignition SmartValve Control with fast-fast opening and 3.4 in. wc pressure regulator setting
- Flame Sense: Electrode
- Type of Gas: Natural
- Ignition System Type: Intermittent Hot Surface Pilot Ignition
- Ignition Sequence: Intermittent Pilot
- Ignition Source: Pilot
- Ignition Trials To Lockout: Continuous Retry
- PrePurge: None
- Body Pattern: Straight-through
- Opening Characteristics: Fast-Fast Opening
- Ignition Trial Time (sec): 90 sec
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz; 50 Hz
- Flame Failure Response Time (sec): 1.6 sec @ 3 µA
- Ambient Temperature Range (F): -40 F to +175 F
- Ambient Temperature Range (C): -40 C to +79 C
- Pressure Regulator Setting (psi): 3.4 in. wc
- Pressure Regulator Setting (kPa): 0.87 kPa
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.45 kPa
- Inlet/Outlet Size (in.): 1/2 in. NPT x 1/2 in. NPT
- Maximum Capacity (ft³/hr): 200 ft³/hr
- Maximum Capacity (m³/hr): 5.7 m³/hr
- Minimum Capacity (ft³/hr): 20 ft³/hr
- Minimum Capacity (m³/hr): 0.6 m³/hr
- Maximum Capacity at 1 in. P.D. (ft³/hr): 150 ft³/hr
- Maximum Capacity at 1 in. P.D. (m³/hr): 4.2 m³/hr
- Pilot Gas Outlet: Yes
- Typical Ignition Hardware: Q3450
- Approvals, American Gas Association IAS: IAS Design Certified: C2030017
Specs
–
| Replaces: | SV9501M8103 |
|---|---|
| Fuel Type: | Natural Gas |
| Body Pattern: | Straight-Through |
| Voltage: | 24V |
| Ignition Trial Time: | 90 sec |
| Inlet Size: | 1/2" |
| Outlet Size: | 1/2" |
| Ignition Type: | Intermittent Hot Surface Pilot |
| Ignition Trials to Lockout: | Continuous Retry |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.53 out of 15 reviews
87% would recommend this product
5 star
87%
4 star
0%
3 star
0%
2 star
7%
1 star
7%
Most Liked Positive Review
best price ive found
the company is one of the best ive dealt with the shipping was on time as they said,and the price this is the lowest i have found and after 6 weeks without heat it feels really good to have it again thank you so much pexsupply
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
don't think that i'd buy this again.
This is the second smart valve that we have purchased and had installed in the past year. I am not impressed with the lack of dependability of the part.
Showing 1-10 of 15 reviews
Highly recommended
Very knowledgeable staff and great pricing.
Dave
Pennsylvania
6 years ago
Verified Buyer
Was this review helpful to you?
I would order parts from this company over and over..thanks
Worked good, was what I ordered. Parts we're shipped quickly, any questions...ask, they will be answered!!
I fixed it
ND
8 years ago
Verified Buyer
Was this review helpful to you?
great service
great service items are in stock
Eddie
perris,ca
9 years ago
Verified Buyer
Was this review helpful to you?
I would not buy
The Valve was defective out of the box. The team at SupplyHouse were excellent helped get a new one out fast,but next one bad two. Bought a new furnace. Sume it up SupplyHouse easy to work with Great help, great customer service but GAS VALVE not so good.
Mike V
PA
9 years ago
Verified Buyer
Was this review helpful to you?
don't think that i'd buy this again.
This is the second smart valve that we have purchased and had installed in the past year. I am not impressed with the lack of dependability of the part.
Me
Silver Creek, N.Y.
9 years ago
Verified Buyer
Was this review helpful to you?
Great product, great supplier!
Got my furnace going again fast
Handyman
Ohio
10 years ago
Verified Buyer
Was this review helpful to you?
Great part
This is a direct replacemmt parts
Ranger buttons
Grapevine, Texas
11 years ago
Verified Buyer
Was this review helpful to you?
a perfect match to the previous one
fast and very efficient
t roberts
Stockbridge, GA
13 years ago
Verified Buyer
Was this review helpful to you?
Good replacement
Fixed my problem of furnace not starting correctly
BPruett
Newberry SC
14 years ago
Verified Buyer
Was this review helpful to you?
Didn't actually need it
Didn't actually need it. needed the relay switch. Their customer service is the best. Will never use anyone else for parts.
LV Pete
Las Vegas, NV
14 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
6 Questions6 Questions
Q: what honeywell gas valve will replace a sv9501 h 3415?
Asked by mike 10 years ago
Add your answer
Verified Reply- Supplyhouse StaffThere is not cross reference for that unit its possible its an OEM #.
Was this review helpful to you?
Q: Does this replace the SV9501M-5117
Asked by Tony 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffNo, the correct replacement for SV9501M-5117 is 222-40762-02.
Was this review helpful to you?
Q: Does this valve come with an LP gas conversion kit?
Asked by Jeff 13 years ago
Add your answer
Verified Reply- PexSupply StaffYes, this includes the NG to LP conversion kit, SKU: 393691.
Was this review helpful to you?
-
Yes, my order included the LP gas conversion kit.
Was this review helpful to you?
Q: will this replace sv9500m 8600 gas valve.....
Asked by ben 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, SV9501M8129 is the replacement for part SV9500M8600.
Was this review helpful to you?
- billybob
yes this valve will replace that old one this is an updated one sv9501m8124 and it will work for LP or natural gas the valve will come with the extra parts for the conversion
Was this review helpful to you?
- Allindo
sv9500M 8600 is no longer made of course. Honey recommends SV9501M8129, as a replacement. Use the Honeywell application reference. Online google SV9501 Honeywell and find the installation and application procedures. It may be that ignition hot system or the transformer is not working. This procedure to isolate which component is at fault is shown in the above application reference and is specific for the SV9500 and for 9501
Was this review helpful to you?
Q: Does this replace the SV9500M-2674?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffSV9501M2528 is the manufacturer's recommended replacement for SV9500M2674.
Was this review helpful to you?
Q: What is the warranty on this item?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe warranty for the gas valve is one year from the date of installation.
