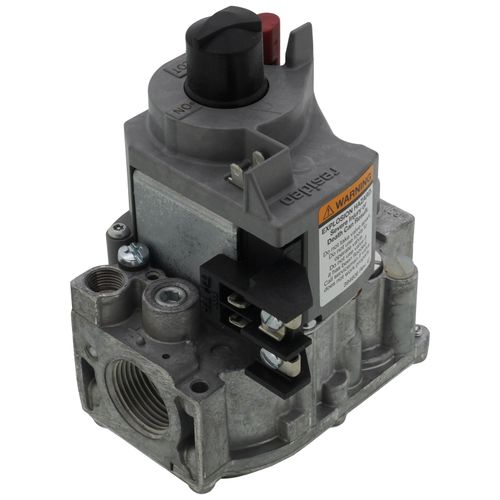

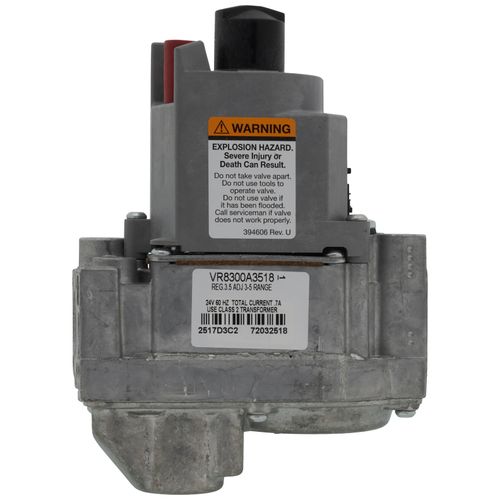

Standard Dual Standing Pilot Gas Valve - 1/2" x 3/4", VR8300A3518
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$182.71 each
In Stock
Get 4 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (3)
This item replaces: V800A1070
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
1/2" NPT, 1/2"
3/4"
190000 BTU Capacity
24V
Standing Pilot
Description
–
24 Vac Dual Standing Pilot Gas Valve with 1/2 in. x 3/4 in. inlet/outlet, standard opening and 3.5 in. wc pressure regulator setting
Features
Product Specifications
Features
- Combination gas control for use in 24 Vac, gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.
- Controls include manual valve, two automatic operators, servo pressure regulator and pilot adjustment.
- Compact size.
- Provide two automatic valves.
- Solenoid-operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
- Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
- Meet codes requiring dual safety shutoff.
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
- LITE-RITE (OFF-PILOT-ON) lighting sequence.
- All adjustments, wiring connections and pilot outlet are accessible from top of control.
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
- Compatible with ECO connector.
Product Specifications
- Type: Single Stage
Ignition Type: Standing Pilot
Type of Gas: Natural
Inlet/Outlet Size (in.): 1/2 in. x 3/4 in.
Body Pattern: Straight through with integral tapping; with flange
Opening Characteristics (standard, step): Standard
Capacity @ 1 in. p.d.: 190,000 BTU/hr; 30,000 BTU/hr minimum
Pressure Ratings: ½ psi, or 3.5 kPa
Pressure Regulator Setting: 3.5 in. wc (psi), or 0.87 kPa
Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
Pressure Tapping: 1/8 in. NPT with plug
Electrical Connections: 1/4 in. quick-connect male terminals
Electrical Ratings: 24 Vac
Frequency: 60 Hz
Anticipator Setting: 0.7 A
Temperature Range: 0° to 175°F, or -18° to +79°C
Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
Dimensions (in.): 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep
Dimensions (mm): 135 mm high x 104 mm wide x 69 mm deep

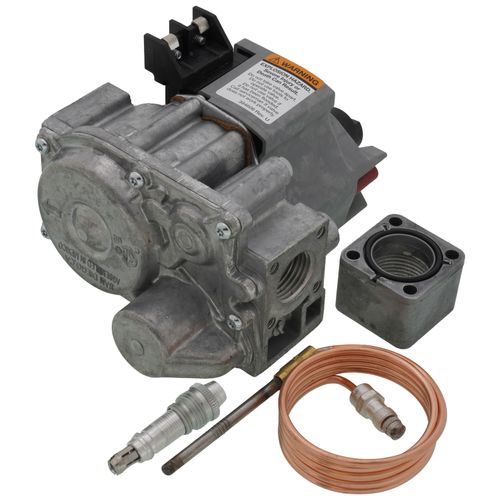

Includes: One 3/4 x 1/2 in. reducer bushing 393691-14 bag assembly-3/4 in. straight flange with O ring, screws and wrench; 393200 ECO adapter; Q340 (36 in.) thermocouple with adapters; 393691 Natural to LP gas conversion kit.
Approvals, American Gas Association IAS: AGA Design Certified: File No. L2025006.
Approvals, Canadian Gas Association: CGA Design Certified: File No. L2025006.
Specs
–
| Fuel Type: | Natural Gas |
|---|---|
| Body Pattern: | Straight-Through with Flange |
| Voltage: | 24V |
| Capacity (BTU): | 190000 |
| Inlet Size: | 1/2" NPT 1/2" |
| Outlet Size: | 3/4" |
| Ignition Type: | Standing Pilot |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Fuel Type
Voltage
Capacity (BTU)
Inlet Size
Outlet Size
CURRENT ITEM
Natural Gas
24V
190000
1/2" NPT
1/2"
1/2"
3/4"
You May Also Need
Product Reviews
4.6 out of 5 reviews
100% would recommend this product
5 star
80%
4 star
0%
3 star
20%
2 star
0%
1 star
0%
Showing 1-5 of 5 reviews
Product arrived timely and was an exact fit as stated
Good price and excellent service
Sam
Cleveland, Ohio
1 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
its a spare
i purchased the gas valve as a spare, its still in the box . cant tell you if its good or bad...
sam porta
jersey city nj
4 years ago
Verified Buyer
Was this review helpful to you?
Quick turnaround, part performed as described
Replaced and older model Honeywell Valve with the newer VR8300A3518. Install was straight forward and the factory manifold pressure setting was spot on at 3.5 WC's, no adjustment required. So far so good.
BigJ
Corrales NM
10 years ago
Verified Buyer
Was this review helpful to you?
would buy this product again
Gas valve works great
darrell
evergreen,co
11 years ago
Verified Buyer
Was this review helpful to you?
Excellent product at a very low price.
Used to replacee an original control on a natural gas fueled boiler for a home heating hdronic system boiler that is now over 30 years old.
Dowd
Ruidoso, NM 88355
15 years ago
Verified Buyer
Was this review helpful to you?
