41 Gallon CH-41Z BoilerMate Champion Series Indirect-Fired Water Heater (Blue)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,879.99 each
In Stock
Get 2 Wed, Jul 8 - Fri, Jul 10
MANUALS (3)
This item replaces: 2708-1, 2783Z01-8, 2704E67-6, 2783L01-8, 2704Z37-6
'/%3E%3C/svg%3E){kind=small}
Lift Gate
–
This product weighs 124 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
41 Gallons
48" Height
22" Diameter
Limited 5 Year Tank and Heat Exchanger/ 1 Year on Component Parts Warranty
40000 BTUs
Blue
Description
–
Amtrol CH-41Z (2703Z01-6) BoilerMate Champion Series Indirect-Fired Water Heater uses boiler energy to produce domestic hot water without additional venting, designed for efficient hot water production with mechanical control.
Key Features:
Compatibility & Applications:
Installation & Operation Notes:
Maintenance & Troubleshooting:
Key Features:
- Model CH-41Z, factory part 2703Z01-6
- BoilerMate indirect-fired design
- Mechanical control on CH models
- Factory thermostat setting 120°F (ships preset)
Compatibility & Applications:
- For hydronic systems that supply domestic hot water using a boiler as the heat source.
- Used where an indirect water heater with storage is preferred over tankless.
Installation & Operation Notes:
- Follow BoilerMate installation and operation instructions for piping, control wiring, and startup.
- A properly sized thermal expansion tank is required and must be installed per the installation manual.
Maintenance & Troubleshooting:
- Refer to BoilerMate service procedures for control checks and heat-exchanger cleaning.
- Manufacturer resources include videos on wiring the BoilerMate aquastat and troubleshooting.
Specs
–
| BTU Input: | 40000 |
|---|---|
| Capacity (Gallons): | 41 |
| Cold Water Inlet (NPTM): | 3/4" |
| Connection Location: | Top |
| Hot Water Outlet (NPTF): | 3/4" |
| Height (Inches): | 48" |
| Boiler Supply: | 3/4" |
| Diameter (Inches): | 22" |
| Boiler Return: | 3/4" |
| Weight (lbs): | 124 lbs |
| Boiler Connection: | NPTM |
| Warranty: | Limited 5 Year Tank and Heat Exchanger/ 1 Year on Component Parts |
| Color: | Blue |
| Finish: | Blue |
| Application: | Plumbing |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
1 Replacement Part
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.13 out of 31 reviews
80% would recommend this product
5 star
61%
4 star
16%
3 star
6%
2 star
6%
1 star
10%
Customer Images
Most Liked Positive Review
Best price for a great product

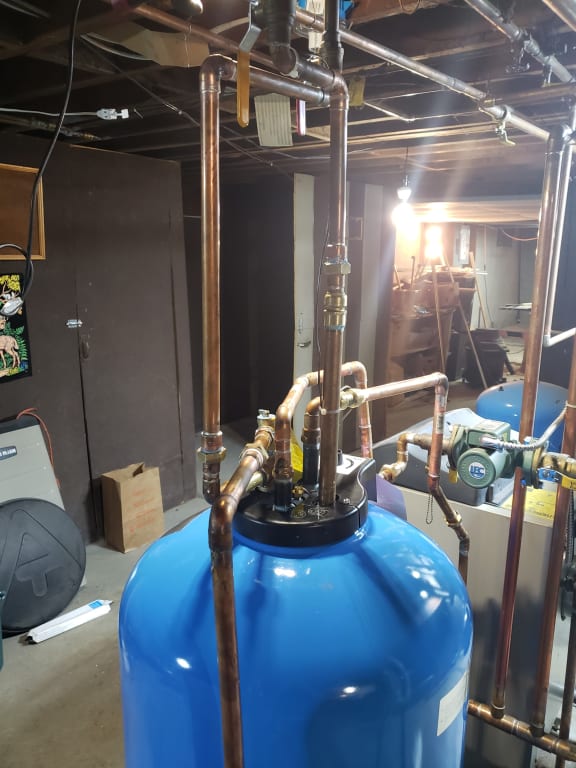

Purchased CH-41Z to replace old CH-7 BoilerMate installed 22 years ago, which was still operational but showing signs of external corrosion. Removed old one and installed new one in about 3.5 hours. The top connections made it a breeze! So glad I made this choice. The space was tight. Making all 4 connections on the same side and on the bottom would have been a nightmare.
VS
Most Liked Negative Review
I would buy the product, the product is a replacement
Never received the boilermate.
The promised delivery was late, even after the trucking company called and confirmed a day for delivery. After the 2nd week, never heard from the trucking, I canceled my order. Now another 3 weeks have past since canceling the order, I have not received credit from Supplyhouse . They tell me, no credit until they receive the boilermate! That is a terribly way to be treated since i never received delivery!!
They need a better trucking firm for deliveries in my area.
Why hold my payment up for a item i never received !!!!
I have used Supplyhouse in the past with no problems before this, disappointing.
PS I called Supplyhouse after the trucking company missed their confirmed delivery and they told me to call the trucking firm ,which I did and the mailbox was full.
Great help Supplyhouse.
Showing 1-10 of 31 reviews
I would buy the product, the product is a replacement
Never received the boilermate.
The promised delivery was late, even after the trucking company called and confirmed a day for delivery. After the 2nd week, never heard from the trucking, I canceled my order. Now another 3 weeks have past since canceling the order, I have not received credit from Supplyhouse . They tell me, no credit until they receive the boilermate! That is a terribly way to be treated since i never received delivery!!
They need a better trucking firm for deliveries in my area.
Why hold my payment up for a item i never received !!!!
I have used Supplyhouse in the past with no problems before this, disappointing.
PS I called Supplyhouse after the trucking company missed their confirmed delivery and they told me to call the trucking firm ,which I did and the mailbox was full.
Great help Supplyhouse.
sam
morriis il
4 months ago
Verified Buyer
Was this review helpful to you?
Very pleased with product and delivery
I purchased a hot water tank and it was delivered on time and in excellent condition. Both the staff that I spoke with on the phone and the delivery were professional and polite.
Zeek
East Fishkill, NY
10 months ago
Verified Buyer
Was this review helpful to you?
Good price, damaged during shipping
This was shipped via Old Dominion freight. When I picked up from the driver, we slid the tank from a pallet into my truck. I looked quickly around to see if any damage and did not see any. Until I got home and saw a big scratch on box and tank. It seems when we put into my truck, the damage was not visible so I accepted delivery. Not until after got home did I see this scratch. Sent a not to Supply House to let them know, but never received a response. Would have been nice to receive a response back, but nothing therefore taking away one star. Installed tank as a replacement for WH-17 which seems to be working fine.
JP
Oregon
3 years ago
Verified Buyer
Was this review helpful to you?
Excellent warranty response to premature failures.
This is my third replacement due to leaking, over the last ten years. First two were the bottom flange model. One rusted completely out at the bottom and the second one developed leaks around the bottom flange gasket. This last one is one of the new style top flange models, but it started leaking from the top flange gasket.
Have received warranty replacement tank, am waiting on a couple of connecting parts before i can swap out.
When not leaking, functions well.
Top of the Hill
Summit County, CO
3 years ago
Verified Buyer
Was this review helpful to you?
Great service
Unfortunately, I had an older model boilermate that failed after only five years, however the company fully honored the warranty and supply house was very helpful in expediting the process and the delivery of the new "sidearm".
George
Syracuse NY
3 years ago
Verified Buyer
Was this review helpful to you?
If I needed it, I would definitely buy this again
The unit arrived safe, and in perfect condition. The only negative issue. The delivery company never let me know they were here. They left the unit sitting on the side of the road, nest to the driveway. A neighbor of mine passing down the road saw it and called me. Otherwise, I wouldn't have known it was there. If someone dishonest had gotten there first. I would never had received it
Ed Joskow
Pennsylvainia
3 years ago
Verified Buyer
Was this review helpful to you?
BoilerMate Indirect Water Heater
Supply House customer service was great in helping me purchase the right replacement of this indirect water heater. The only reason I give it 4 stars was shipping was delayed and poor response time for delivery by the shipper.
Hudson Valley Plumber
Athens, NY
3 years ago
Verified Buyer
Was this review helpful to you?
Leaks
It started leaking within a few years around the bottom seal. . Tried replacing the seal, still leaks.
Vidar the Viking
Northland MN
4 years ago
Was this review helpful to you?
Lasted 3 1/2 years
Go with Well Mcclain. Amtrol is a disposable product. So much work to install for short lifespan. Supply House might want to rethink stocking from once was a great company. Amtrol 1st unit leaked immediately. Replacement lasted 3 1/2 years. Discouraging and costly
JK
Seaford DE
4 years ago
Was this review helpful to you?
Failed After 3 Years - No Warranty Coverage
Boilermate has a 6-year warranty but it is not transferable. We purchased home 3 months after the unit was installed and it failed after 3 years -- clearly a manufacturers defect. No warranty coverage.
MB
Buffalo, NY
5 years ago
Was this review helpful to you?
Product Q&A
9 Questions9 Questions
Q: Would I have to spend alot on fuel and does my power bill spike when I install this? We have harsh winters so I need to know if I have to spend alot more on fuel.
Asked by Mandy 12 years ago
Add your answer
Verified Reply- AnonymousIt depends on the boiler and your application. For example: if the boiler's not going to heat the house and there is a domestic hot water call it could increase fuel consumption.
Was this review helpful to you?
Q: by how much do I have to oversize the boiler for the 40 gal. CH-41Z?
Asked by Hil 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffOversizing a boiler to accommodate an indirect water heater is rarely necessary. Indirects almost always are configured to be a "priority" zone in a system, so that the DHW zone does not operate at the same time as any of the space-heating zones.
Was this review helpful to you?
-
You really don't need to upsize the boiler, since the water heater doesn't call for heat much except for peak use times like morning showers, etc. I would not recommend the Boilermate, however. The one I purchased failed after two years and I replaced it with a Lochinvar Squire. Paul Merolla President
Was this review helpful to you?
Q: What is the difference between the L model and the Z model?
Asked by Fred 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffL models have the smart control, whereas Z models have the standard electromechanical thermostat.
Was this review helpful to you?
Q: will this handle 24v or 110v for control or can it do both
Asked by gart 12 years ago
Add your answer
Verified Reply- PexSupplyStaffYes, The dial control contains a make-and-break switch and is suitable for 24V.
Was this review helpful to you?
Q: what is the model number
Asked by annie 14 years ago
Add your answer
Verified Reply- PexSupply StaffCH-41Z.
Was this review helpful to you?
Q: We have three full bathrooms in our home, would this BoilerMate be sufficiant.
Asked by Shirlee 14 years ago
Add your answer
- yon
If the heat supply is working properly, When all the kids friends are over, 10 showers in a row the boiler mate has matched the requirment!
Was this review helpful to you?
-
I think you would need to provide more information. How many tubs do you have and how many gallons are they? Worst case scenario if you have visitors and all tubs are used at the same time, can this happen at your house?
Was this review helpful to you?
-
We also have three full bathrooms and we are heating 2900 square feet with seven zones. The boiler mate, zone 8, is more than sufficient. Consider a 40 gallon as being a normal 120 gallon. After 8 months of use we have never run out of hot water. Also make sure that the Boiler Mate has first call on getting heat and there should be no problems.
Was this review helpful to you?
Q: does this qualify for federal tax credits for 2010
Asked by patty 15 years ago
Add your answer
Verified Reply- PexSupply StaffNo indirect water heaters qualify for tax rebates because their efficiency ratings are tied directly to those of the boiler the indirect is connected to.
Was this review helpful to you?
Q: The plumber installed CH-41Z BoilerMate water heater in Jan of 2011. Now my furnace doesn't shut off. I installed a new thermostat, but the furnace continues to run. Could it be the water heater??
Asked by Uptominck 15 years ago
Add your answer
Verified Reply- PexSupply StaffYour boiler will run until the Amtrol unit is satisfied. You may want to go back and check the wiring to make sure all the connections are correct.
Was this review helpful to you?
Q: What is the expected life of this product?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffIt is designed to last for the duration of the 6-year warranty. Beyond that, the life of the product depends on several usage factors: water conditions, the temperature the tank is maintained at, and maintenance of the unit (i.e. draining the tank to remove sediment).
Was this review helpful to you?
