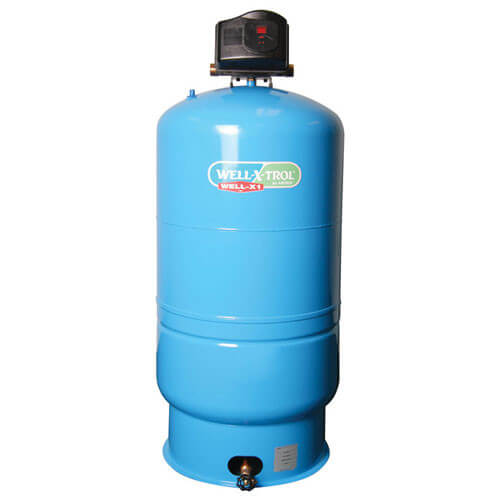

WX1-302 (150S92), 86 Gal WELL-X-TROL Well-X1 Well Tank, Standard Blue
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
WX1-302 has been discontinued
Discontinued December 13, 2022
This product was discontinued because the part number was changed by the manufacturer. No modifications were made to the replacement product.
MANUALS (2)
This item replaces: 150S92
Direct Replacement:
WX1-302D (150S92), 86 Gal WELL-X-TROL Well-X1 Well Tank w/ Durabase Stand, Standard Blue
VIEW REPLACEMENT
Product Highlights
–
86 Gallons
1" NPTF, 1-1/4" NPTM Connection
7 Year Limited Warranty
55-1/4"
26" Diameter
115/230V
Description
–
Combining all the major components of a well tank installation, the Well-X1 comes pre-assembled, tested and ready to run. Based on the industry-leading Well-X-Trol® line of pre-charged diaphragm tanks, the Well-X1 also includes the following:
- A state-of-the-art digital pump control with pump protection and diagnostic features
- Pre-stripped wire connections and integrated wiring box
- Complete plumbing tee assembly
- Pressure relief valve
- Factory-installed bottom drain
- Durabase stand
Specs
–
| Application: | Plumbing |
|---|---|
| Tank Volume: | 86 Gallons |
| Max Accept. Factor: | 0.54 |
| Height: | 55-1/4" |
| Diameter (Inches): | 26" |
| Voltage: | 115/230V |
| Pressure Differential: | 10 to 55 psig |
| Pressure Range: | 10 to 80 psig |
| Max Pressure (PSIG): | 100 |
| Connection Size: | 1" NPTF 1-1/4" NPTM |
| Coating: | Blue Enamel |
| Weight (lbs): | 134 lbs |
| Warranty: | 7 Year Limited |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Tank Volume
Diameter (Inches)
CURRENT ITEM
86 Gallons
26"
Product Reviews
4.33 out of 6 reviews
83% would recommend this product
5 star
67%
4 star
17%
3 star
0%
2 star
17%
1 star
0%
Customer Images
Showing 1-6 of 6 reviews
Excellent product but vague installation instructions
Good product, but installation and operating manual is gauge at best.
Oifvet3id
Ohio
6 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again
The product was delivered as scheduled. The tank was a great upgrade for my water system, it greatly improved water pressure. Right now we can have two or more showers running with toilets flushing without any pressure drop. I would recommend Supplyhouse and Well-x-trol to anyone that is looking for an upgrade.
Joe
Virginia
6 years ago
Verified Buyer
Was this review helpful to you?
Get the water pressure you deserve from your well!!!!
Being the only male in a house of 5, water becomes an issue. After the four women are done taking a shower and rinsing out their golden locks, there is usually little left for Dad to clean the grime of an honest days work away. The old well tank produced all the pressure of a 90 year old man with a prostate problem. This tank is AWESOME! Their shower times have been cut in half and all of them rave about how good it feels to get beat up by the water coming out of the shower-head. The end result is there is now some hot water left for Dad! Our water consumption has also went down dramatically as monitored by our MoenFlo. Installation was quick, clean and simple and the ability to monitor its function is an added bonus. If you need a new well tank, be it small, medium or large, get the Well-X-Trol X1! This thing really delivers!
Eric the Out-Numbered
Westminster, Maryland
6 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I would buy this product again but not from these people
When I finally got an undamaged tank it is fine, just took over 2 months to get it. First tank was 1 month and arrived damaged. The replacement took over a month to arrive. They didn't seem interested in making it right from a customer perspective.
Lousy customer service.
They are not that much cheaper to have to wait so long.
Larry
Tampa, Florida
7 years ago
Verified Buyer
Was this review helpful to you?
Great Product for great water pressure!

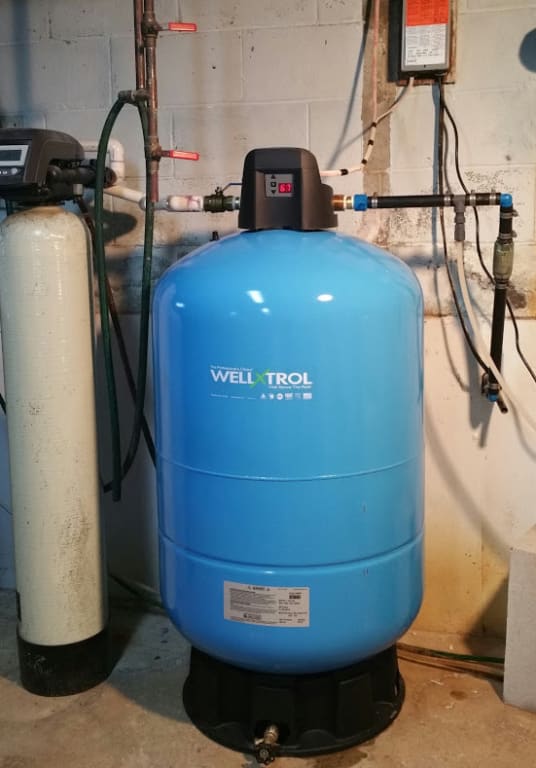

Bought to replaced an approximately 30 year old, AMTROL WX-202. The 202 which was set at a standard 40/60 psi was starting to leak. My new WX1-302D now delivers 60/70 psi. For the first time since owning our home the water pressure went from acceptable to great. I installed it myself in about 6 hours. I think a plumber could probably do it in 3. It's only been in-service for 4 days so I can't say anything about longevity.
Aqua Man
NJ
8 years ago
Verified Buyer
Was this review helpful to you?
Greatest pressure tank ever
Easy to install, electric is away from the water. Setup is fool proof.
Cycle PA
Milford, PA
14 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Will this work with a 3 wire pump?
Asked by JoshC 8 years ago
Add your answer
Verified Reply- Supplyhouse.com TeamThe Well-X1 is for 2-wire pump systems.
Was this review helpful to you?
Q: Is this diaphram replaceable? If so where is it available?
Asked by Nicholas 12 years ago
Add your answer
Verified Reply- Supplyhouse Staffno
Was this review helpful to you?
