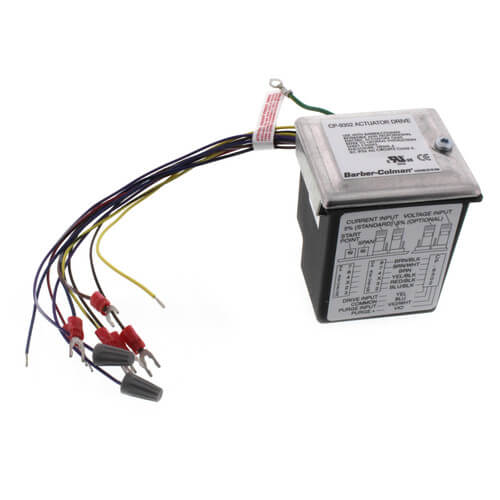

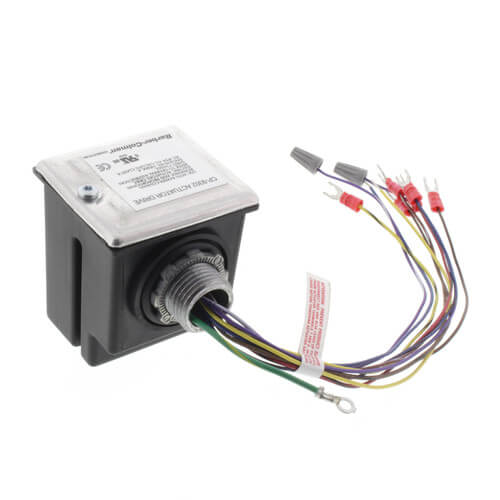

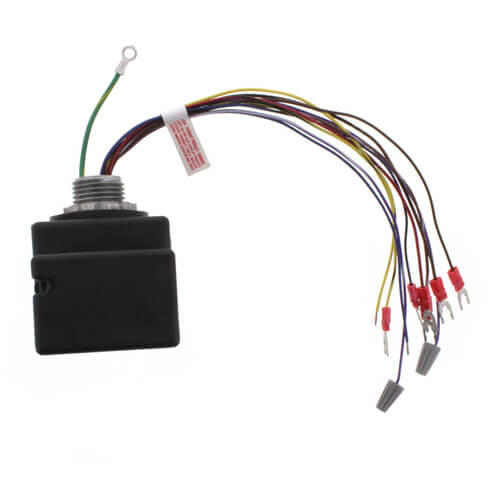

120V Actuator Drive 4-20 mA

The CP-9301 and CP-9302 electronic actuator drives process a variable input signal from a controller to provide proportional control of an electric gear train actuator. The CP-9301 is preset at the factory for voltage input. The CP-9302 is factory preset for current input and has additional wiring for connection to an override switch, for those applications requiring an external override of the input signal. These drives are equipped with built-in jumpers and adjustable potentiometers, so that the type of input signal, deadband, input span, and start point may be reset in the field when necessary.

Features

• Mounts directly onto TAC proportional, electric, gear train actuators.
• Power is supplied directly from the actuator.
• May be used with all gear train actuator voltages and frequencies.
• Jumpers for selecting either voltage or current input, as well as 3% or 5% deadband.
• Adjustable span and start point potentiometers.
